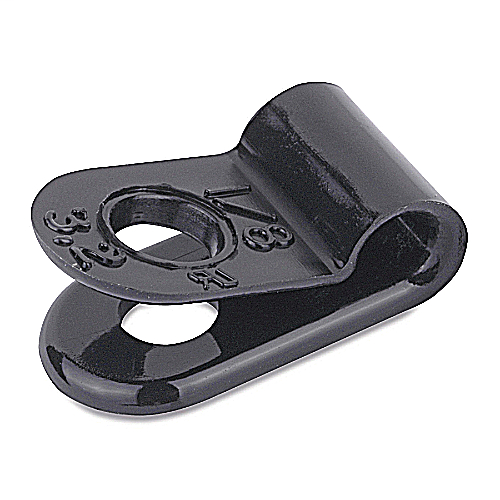

Plain Edge Cable Clamps
MFG #N4NY-002B-0-M
$0.19 / E
EACH
EACH
Product Description:
Plain Edge Cable Clamp, Natural Nylon 6.6 for Temperatures up to 85 Degrees Celsius (185 F), Width of 9.53mm (0.375 Inches), Thickness of 1.27mm (0.50 Inches), Hole Diameter of 5.2mm (0.203 Inches), #10 Screw Mounting with Closed Diameter of 3.2mm (0.125 Inches), Bulk Pack
HESCO Part Number
TBN4NY002B0M
UPC
72849411653
Manufacturer Part Number
N4NY-002B-0-M
Manufacturer
Thomas & Betts
Plain Edge Cable Clamps
MFG #N4NY-002B-0-M
Product Description:
Plain Edge Cable Clamp, Natural Nylon 6.6 for Temperatures up to 85 Degrees Celsius (185 F), Width of 9.53mm (0.375 Inches), Thickness of 1.27mm (0.50 Inches), Hole Diameter of 5.2mm (0.203 Inches), #10 Screw Mounting with Closed Diameter of 3.2mm (0.125 Inches), Bulk Pack
HESCO Part Number
TBN4NY002B0M
UPC
72849411653
Manufacturer Part Number
N4NY-002B-0-M
Manufacturer
Thomas & Betts
$0.19 / E
EACH
EACH
- Features
- Specifications
- Resources
- Plain edge cable clamps are designed to perform to NAS-1397P.
- Fully radiused inside edges with size markings in inches and millimeters for easy identification.
Dimension Information
| Hole Diameter (inches) | : | 0.203 |
| Thickness (inches) | : | 0.050 |
| Width (inches) | : | 0.375 |
| Closed Diameter (inches) | : | 0.125 |
| X (inches) | : | 0.218 |
| E (inches) | : | 0.343 |
| Max. Wire Bundle Diameter (inches) | : | 0.125 |
Certifications | ||
| RoHS Compliance | : | Yes |
Packaging | ||
| Package Height | : | 7.5 |
| Inner Package | : | 1000 |
| T&B Weight Per UOM | : | 0.82 lbs. per 1000 |
| Package Length | : | 16.25 |
| Package Width | : | 8 |
| Outer Package | : | 5000 |
| Order Multiple | : | 1000 |
| T&B Sold in UOM | : | Each |
| Package Type | : | Bulk |
General | ||
| Color | : | Black |
| Material | : | Nylon 6/6 |
| Mounting Method | : | #10 Screw |
Specifications | ||
| Temperature Rating | : | -40°F to 185°F |
- Plain edge cable clamps are designed to perform to NAS-1397P.
- Fully radiused inside edges with size markings in inches and millimeters for easy identification.
Dimension Information
Hole Diameter (inches) : 0.203 Thickness (inches) : 0.050 Width (inches) : 0.375 Closed Diameter (inches) : 0.125 X (inches) : 0.218 E (inches) : 0.343 Max. Wire Bundle Diameter (inches) : 0.125 Certifications
RoHS Compliance : Yes Packaging
Package Height : 7.5 Inner Package : 1000 T&B Weight Per UOM : 0.82 lbs. per 1000 Package Length : 16.25 Package Width : 8 Outer Package : 5000 Order Multiple : 1000 T&B Sold in UOM : Each Package Type : Bulk General
Color : Black Material : Nylon 6/6 Mounting Method : #10 Screw Specifications
Temperature Rating : -40°F to 185°F - Application Support
