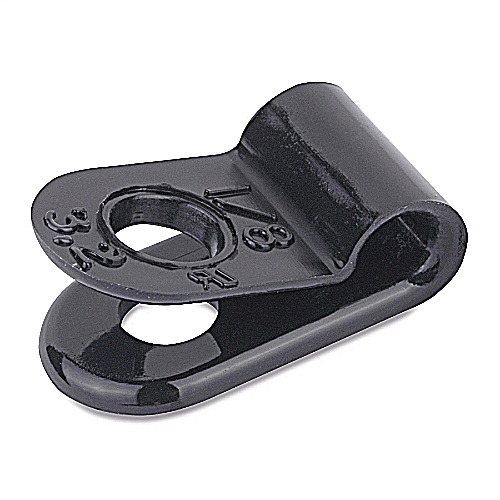

Plain Edge Cable Clamps
MFG #N4NY-008B-0-C
$0.36 / E
EACH
EACH
Product Description:
Plain Edge Cable Clamp, Black Nylon 6.6 for Temperatures up to 85 Degrees Celsius (185 F), Width of 9.53mm (0.375 Inches), Thickness of 1.27mm (0.50 Inches), Hole Diameter of 5.2mm (0.203 Inches), #10 Screw Mounting with Closed Diameter of 12.7mm (0.50 Inches)
HESCO Part Number
TBN4NY008B0C
UPC
72849410689
Manufacturer Part Number
N4NY-008B-0-C
Manufacturer
Thomas & Betts
Plain Edge Cable Clamps
MFG #N4NY-008B-0-C
Product Description:
Plain Edge Cable Clamp, Black Nylon 6.6 for Temperatures up to 85 Degrees Celsius (185 F), Width of 9.53mm (0.375 Inches), Thickness of 1.27mm (0.50 Inches), Hole Diameter of 5.2mm (0.203 Inches), #10 Screw Mounting with Closed Diameter of 12.7mm (0.50 Inches)
HESCO Part Number
TBN4NY008B0C
UPC
72849410689
Manufacturer Part Number
N4NY-008B-0-C
Manufacturer
Thomas & Betts
$0.36 / E
EACH
EACH
- Features
- Specifications
- Resources
- Fully radiused inside edges with size markings in inches and millimeters for easy identification.
- Plain edge cable clamps are designed to perform to NAS-1397P.
Dimension Information
| Max. Wire Bundle Diameter (inches) | : | 0.500 |
| Hole Diameter (inches) | : | 0.203 |
| Closed Diameter (inches) | : | 0.500 |
| E (inches) | : | 0.530 |
| X (inches) | : | 0.218 |
| Width (inches) | : | 0.375 |
| Thickness (inches) | : | 0.050 |
Certifications | ||
| RoHS Compliance | : | Yes |
Packaging | ||
| T&B Sold in UOM | : | Each |
| Order Multiple | : | 100 |
| Package Type | : | Standard |
| Inner Package | : | 100 |
| T&B Weight Per UOM | : | 1.25 lbs. per 1000 |
| Outer Package | : | 10000 |
General | ||
| Mounting Method | : | #10 Screw |
| Color | : | Black |
| Material | : | Nylon 6/6 |
Specifications | ||
| Temperature Rating | : | -40°F to 185°F |
- Fully radiused inside edges with size markings in inches and millimeters for easy identification.
- Plain edge cable clamps are designed to perform to NAS-1397P.
Dimension Information
Max. Wire Bundle Diameter (inches) : 0.500 Hole Diameter (inches) : 0.203 Closed Diameter (inches) : 0.500 E (inches) : 0.530 X (inches) : 0.218 Width (inches) : 0.375 Thickness (inches) : 0.050 Certifications
RoHS Compliance : Yes Packaging
T&B Sold in UOM : Each Order Multiple : 100 Package Type : Standard Inner Package : 100 T&B Weight Per UOM : 1.25 lbs. per 1000 Outer Package : 10000 General
Mounting Method : #10 Screw Color : Black Material : Nylon 6/6 Specifications
Temperature Rating : -40°F to 185°F - Application Support
