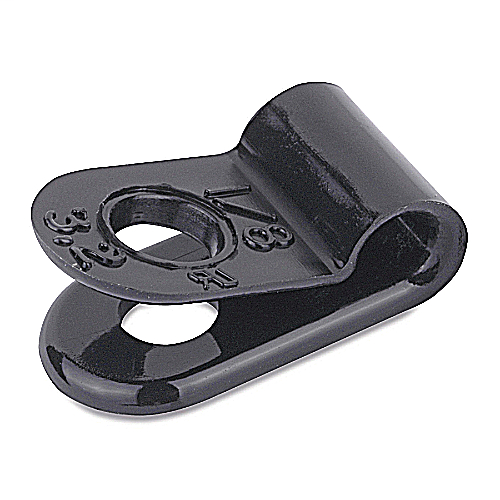

Plain Edge Cable Clamps
MFG #N6NY-005C-0-M
$0.28 / E
EACH
EACH
Product Description:
Plain Edge Cable Clamp, Black Nylon 6.6 for Temperatures up to 85 Degrees Celsius (185 F), Width of 12.7mm (0.50 Inches), Thickness of 1.52mm (0.06 Inches), Hole Diameter of 5.16mm (0.203 Inches), #10 Screw Mounting with Closed Diameter of 7.92mm (0.312 Inches), Bulk Pack
HESCO Part Number
TBN6NY005C0M
UPC
72849408566
Manufacturer Part Number
N6NY-005C-0-M
Manufacturer
Thomas & Betts
Plain Edge Cable Clamps
MFG #N6NY-005C-0-M
Product Description:
Plain Edge Cable Clamp, Black Nylon 6.6 for Temperatures up to 85 Degrees Celsius (185 F), Width of 12.7mm (0.50 Inches), Thickness of 1.52mm (0.06 Inches), Hole Diameter of 5.16mm (0.203 Inches), #10 Screw Mounting with Closed Diameter of 7.92mm (0.312 Inches), Bulk Pack
HESCO Part Number
TBN6NY005C0M
UPC
72849408566
Manufacturer Part Number
N6NY-005C-0-M
Manufacturer
Thomas & Betts
$0.28 / E
EACH
EACH
- Features
- Specifications
- Resources
- Plain edge cable clamps are designed to perform to NAS-1397P.
- Fully radiused inside edges with size markings in inches and millimeters for easy identification.
Dimension Information
| Hole Diameter (inches) | : | 0.203 |
| Width (inches) | : | 0.500 |
| Max. Wire Bundle Diameter (inches) | : | 0.312 |
| X (inches) | : | 0.218 |
| Thickness (inches) | : | 0.060 |
| Closed Diameter (inches) | : | 0.312 |
| E (inches) | : | 0.474 |
Certifications | ||
| RoHS Compliance | : | Yes |
Packaging | ||
| Outer Package | : | 10000 |
| Package Height | : | 12 |
| Order Multiple | : | 1000 |
| T&B Sold in UOM | : | Each |
| Package Width | : | 12.5 |
| T&B Weight Per UOM | : | 12.5 lbs. per 1000 |
| Package Type | : | Bulk |
| Package Length | : | 18 |
| Inner Package | : | 1000 |
General | ||
| Color | : | Black |
| Mounting Method | : | #10 Screw |
| Material | : | Nylon 6/6 |
Specifications | ||
| Temperature Rating | : | -40°F to 185°F |
- Plain edge cable clamps are designed to perform to NAS-1397P.
- Fully radiused inside edges with size markings in inches and millimeters for easy identification.
Dimension Information
Hole Diameter (inches) : 0.203 Width (inches) : 0.500 Max. Wire Bundle Diameter (inches) : 0.312 X (inches) : 0.218 Thickness (inches) : 0.060 Closed Diameter (inches) : 0.312 E (inches) : 0.474 Certifications
RoHS Compliance : Yes Packaging
Outer Package : 10000 Package Height : 12 Order Multiple : 1000 T&B Sold in UOM : Each Package Width : 12.5 T&B Weight Per UOM : 12.5 lbs. per 1000 Package Type : Bulk Package Length : 18 Inner Package : 1000 General
Color : Black Mounting Method : #10 Screw Material : Nylon 6/6 Specifications
Temperature Rating : -40°F to 185°F - Application Support
