Thomas & Betts
.25X.032FEM DISC FULLYINS STRIPMNTD
MFG #RA250DF-PS
Requires Quote
 / Each
Product Description:

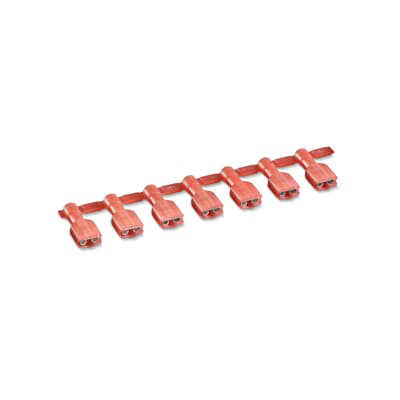

Plastic Strip Fully Insulated Nylon Female Disconnect Terminals for Wire Range 22-16, Tab Size .250 x .032, Red
HESCO Part Number
TBRA250DFPS
UPC
786209876935
Manufacturer Part Number
RA250DF-PS
Manufacturer
Thomas & Betts
Thomas & Betts
.25X.032FEM DISC FULLYINS STRIPMNTD
MFG #RA250DF-PS
Product Description:
Plastic Strip Fully Insulated Nylon Female Disconnect Terminals for Wire Range 22-16, Tab Size .250 x .032, Red
HESCO Part Number
TBRA250DFPS
UPC
786209876935
Manufacturer Part Number
RA250DF-PS
Manufacturer
Thomas & Betts
Requires Quote
 / Each
- Specifications
Dimensions
| Product Net Length | :Â Â | 0, mm |
Container Information | ||
| Package Level 1 Units | :Â Â | 2500 piece |
| Package Level 1 Width | :Â Â | 2.75 in70 mm |
| Package Level 1 Height | :Â Â | 23 in584 mm |
| Package Level 1 Depth / Length | :Â Â | 23 in584 mm |
| Package Level 2 Units | :Â Â | 12500 piece |
| Package Level 2 Width | :Â Â | 9.84 in250 mm |
| Package Level 2 Height | :Â Â | 24.4 in620 mm |
| Package Level 2 Depth / Length | :Â Â | 24.4 in620 mm |
Additional Information | ||
| Brand / Label | :Â Â | Sta-Kon |
| Color | :Â Â | Red |
| Effective Date | :Â Â | 20070430 |
| Insulation Material | :Â Â | Nylon/Polyamide |
| Material | :Â Â | Brass |
| Number of Batteries | :Â Â | 0 |
| Product Name | :Â Â | ELECTRICAL DISCONNECT |
| Product Type | :Â Â | Plastic Strip Teminals |
| Special Functions | :Â Â | Internal barrel serrations increase conductivity and pull-out strength. Designed for automated termination to reduce repetitive-motion injuries. More consistent in form than welded-together plastic strips. |
| Standards | :Â Â | UL E66716 |
| Voltage Rating | :Â Â | 600 V |
| Wire Size | :Â Â | 22-16 AWG |
Classifications | ||
| WEEE Category | :Â Â | Product Not in WEEE Scope |
| IDEA Granular Category Code (IGCC) | :Â Â | 4667 >> Wire terminal disconnect |
