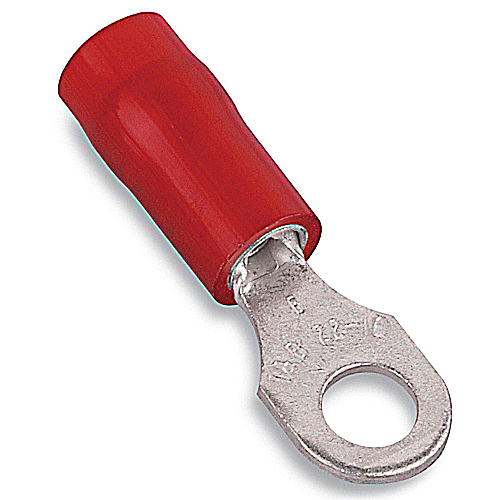

Ring Terminal
MFG #RA853
$0.61Â /Â E
EACH
EACH
Product Description:
Nylon Insulated Ring Terminal, Length .86 Inches, Width .26 Inches, Maximum Insulation .136, Bolt Hole #6, Wire Range #22-#16 AWG, Color Red, Copper, Tin Plated
HESCO Part Number
TBRA853
UPC
78621081735
Manufacturer Part Number
RA853
Manufacturer
Thomas & Betts
Ring Terminal
MFG #RA853
Product Description:
Nylon Insulated Ring Terminal, Length .86 Inches, Width .26 Inches, Maximum Insulation .136, Bolt Hole #6, Wire Range #22-#16 AWG, Color Red, Copper, Tin Plated
HESCO Part Number
TBRA853
UPC
78621081735
Manufacturer Part Number
RA853
Manufacturer
Thomas & Betts
$0.61Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Self-insulated with high dieletric-strength nylon sleeves.
- An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep.
- Application Tools: WT2000, WT112M, WT145C, ERG4001, WT145A
- Alternate Package Qty: RA18-6
Packaging
| Inner Quantity | :Â Â | 1000 |
| Inner Dimensions (inches) | :Â Â | 6.1x4.6x3.1 |
| Outer Quantity | :Â Â | 10000 |
| Outer Dimensions (inches) | :Â Â | 17x10x7 |
| Weight Uom | :Â Â | 2.5 lbs. per 1000 |
North American Specifications (UNSPSC) | ||
| UNSPSC | :Â Â | 39121432 Electrical terminals |
| IGCC | :Â Â | 4603 Electrical terminals |
| Brand Name | :Â Â | Sta-Kon |
| Type | :Â Â | Ring Terminal |
| Special Features | :Â Â | Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep. |
| Standard | :Â Â | UL E9809 |
| Wire Size | :Â Â | 22-16 |
| Voltage Rating | :Â Â | 600V |
| Material | :Â Â | Copper |
| Color | :Â Â | Red |
European Specifications (ETIM) | ||
| ETIM | :Â Â | EC001052 Solderless copper terminals for copper conductors |
| Flange shape | :Â Â | Ring shape |
| Insulation | :Â Â | PA |
| Colour insulation | :Â Â | Red |
| Reel packaging | :Â Â | N |
| AWG-range | :Â Â | 22-16 |
| Material | :Â Â | Copper |
| Surface protection | :Â Â | Tinned |
- Self-insulated with high dieletric-strength nylon sleeves.
- An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep.
- Application Tools: WT2000, WT112M, WT145C, ERG4001, WT145A
- Alternate Package Qty: RA18-6
Packaging
Inner Quantity :Â Â 1000 Inner Dimensions (inches) :Â Â 6.1x4.6x3.1 Outer Quantity :Â Â 10000 Outer Dimensions (inches) :Â Â 17x10x7 Weight Uom :Â Â 2.5 lbs. per 1000 North American Specifications (UNSPSC)
UNSPSC :Â Â 39121432 Electrical terminals IGCC :Â Â 4603 Electrical terminals Brand Name :Â Â Sta-Kon Type :Â Â Ring Terminal Special Features :Â Â Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep. Standard :Â Â UL E9809 Wire Size :Â Â 22-16 Voltage Rating :Â Â 600V Material :Â Â Copper Color :Â Â Red European Specifications (ETIM)
ETIM :Â Â EC001052 Solderless copper terminals for copper conductors Flange shape :Â Â Ring shape Insulation :Â Â PA Colour insulation :Â Â Red Reel packaging :Â Â N AWG-range :Â Â 22-16 Material :Â Â Copper Surface protection :Â Â Tinned - Downloads
Technical Drawing / Spec Sheet USSpec SheetTechnical Drawing / Spec Sheet Canada
