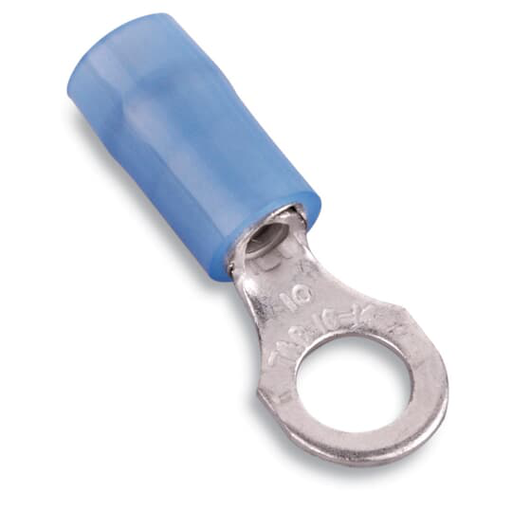

INSNYL RING TERM 18-14 BLT No4 BLUE
MFG #RB1323
$1.10Â /Â E
EACH
EACH
Product Description:
Nylon Insulated Ring Terminal, Length .72 Inches, Width .26 Inches, Maximum Insulation .162, Bolt Hole #4, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated, 1,000 Pack
HESCO Part Number
TBRB1323
UPC
786210819204
Manufacturer Part Number
RB1323
Manufacturer
Thomas & Betts
INSNYL RING TERM 18-14 BLT No4 BLUE
MFG #RB1323
Product Description:
Nylon Insulated Ring Terminal, Length .72 Inches, Width .26 Inches, Maximum Insulation .162, Bolt Hole #4, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated, 1,000 Pack
HESCO Part Number
TBRB1323
UPC
786210819204
Manufacturer Part Number
RB1323
Manufacturer
Thomas & Betts
$1.10Â /Â E
EACH
EACH
- Specifications
Additional Information
| Brand / Label | :Â Â | Sta-Kon |
| Color | :Â Â | Blue |
| Effective Date | :Â Â | 19680131 |
| Material | :Â Â | Copper |
| Product Name | :Â Â | ELECTRICAL WIRING TERMINAL |
| Product Type | :Â Â | Nylon Insulated Ring Terminal |
| Special Functions | :Â Â | Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep. |
| Standards | :Â Â | UL E9809 |
| Voltage Rating | :Â Â | 600 V |
| Wire Size | :Â Â | 18-14 AWG |
Classifications | ||
| WEEE Category | :Â Â | Product Not in WEEE Scope |
| IDEA Granular Category Code (IGCC) | :Â Â | 4603 >> Electrical terminals |
Ordering | ||
| Country of Origin | :Â Â | United States (US) |
| Selling Unit of Measure | :Â Â | each |
Additional Information
Brand / Label :Â Â Sta-Kon Color :Â Â Blue Effective Date :Â Â 19680131 Material :Â Â Copper Product Name :Â Â ELECTRICAL WIRING TERMINAL Product Type :Â Â Nylon Insulated Ring Terminal Special Functions :Â Â Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep. Standards :Â Â UL E9809 Voltage Rating :Â Â 600 V Wire Size :Â Â 18-14 AWG Classifications
WEEE Category :Â Â Product Not in WEEE Scope IDEA Granular Category Code (IGCC) :Â Â 4603 >> Electrical terminals Ordering
Country of Origin :Â Â United States (US) Selling Unit of Measure :Â Â each
