T&B RB14-38 16-14 INS RING TERM
MFG #RB14-38
$2.35 / E
EACH
EACH
Product Description:

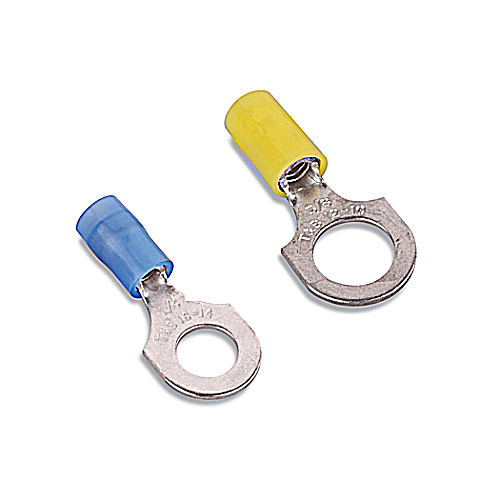

Insulated Nylon Ring Terminal For Wire Range 18-14 Stud Size 3/8, Blue
HESCO Part Number
TBRB1438
UPC
78621080421
Manufacturer Part Number
RB14-38
Manufacturer
Thomas & Betts
T&B RB14-38 16-14 INS RING TERM
MFG #RB14-38
Product Description:
Insulated Nylon Ring Terminal For Wire Range 18-14 Stud Size 3/8, Blue
HESCO Part Number
TBRB1438
UPC
78621080421
Manufacturer Part Number
RB14-38
Manufacturer
Thomas & Betts
$2.35 / E
EACH
EACH
- Features
- Specifications
- Resources
- Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep.
- UL
- CSA
Dimension Information
| A (inches) | : | 1.17 |
| Maximum Insulation (inches) | : | .162 |
| B (inches) | : | .53 |
| C (inches) | : | .35 |
| M (inches) | : | .87 |
| Stock Thickness | : | .03 |
Certifications | ||
| RoHS Compliance | : | Yes |
Packaging | ||
| Order Multiple | : | 100 |
| Alternate Package Qty | : | RB733 |
| T&B Weight Per UOM | : | 2.5 lbs. per 1000 |
| Inner Package | : | 100 |
| T&B Sold in UOM | : | Each |
| Package Type | : | Standard |
| Package Length | : | 12.3 |
| Package Height | : | 7.7 |
| Outer Package | : | 500 |
| Package Width | : | 10.3 |
Tooling | ||
| Recommended Tool | : | ERG4001 |
| Application Tools | : | WT2000, WT112M, WT145C, ERG4001, ERG4003, WT145A |
General | ||
| Terminal Series | : | RB |
| Wire Range | : | 18-14 |
| Material | : | Copper |
| Insulation Type | : | Insulated Nylon |
| Stud Size | : | 3/8 |
| Color | : | Blue |
| Finish | : | Electro Tin-Plated |
Specifications | ||
| Voltage Rating | : | 600V |
| Flammability Rating | : | UL 94 V-2 |
| Temperature Rating | : | 105°C |
- Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep.
- UL
- CSA
Dimension Information
A (inches) : 1.17 Maximum Insulation (inches) : .162 B (inches) : .53 C (inches) : .35 M (inches) : .87 Stock Thickness : .03 Certifications
RoHS Compliance : Yes Packaging
Order Multiple : 100 Alternate Package Qty : RB733 T&B Weight Per UOM : 2.5 lbs. per 1000 Inner Package : 100 T&B Sold in UOM : Each Package Type : Standard Package Length : 12.3 Package Height : 7.7 Outer Package : 500 Package Width : 10.3 Tooling
Recommended Tool : ERG4001 Application Tools : WT2000, WT112M, WT145C, ERG4001, ERG4003, WT145A General
Terminal Series : RB Wire Range : 18-14 Material : Copper Insulation Type : Insulated Nylon Stud Size : 3/8 Color : Blue Finish : Electro Tin-Plated Specifications
Voltage Rating : 600V Flammability Rating : UL 94 V-2 Temperature Rating : 105°C - Tooling
