T&B RB14-8FL 16-14 INS SPADE TERM
MFG #RB14-8FL
$1.73 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
Product Description:

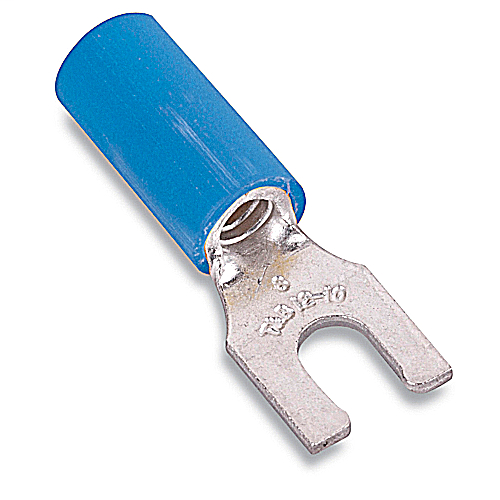

Insulated Nylon Locking Fork Terminal For Wire Range 18-14 Stud Size #8, Blue
HESCO Part Number
TBRB148FL
UPC
78621088740
Manufacturer Part Number
RB14-8FL
Manufacturer
Thomas & Betts
T&B RB14-8FL 16-14 INS SPADE TERM
MFG #RB14-8FL
Product Description:
Insulated Nylon Locking Fork Terminal For Wire Range 18-14 Stud Size #8, Blue
HESCO Part Number
TBRB148FL
UPC
78621088740
Manufacturer Part Number
RB14-8FL
Manufacturer
Thomas & Betts
$1.73 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
- Features
- Specifications
- Resources
- Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring.
- UL
- CSA
Dimension Information
| M (inches) | : | .71 |
| Stock Thickness | : | .03 |
| Maximum Insulation (inches) | : | .162 |
| B (inches) | : | .29 |
| C (inches) | : | .25 |
| A (inches) | : | .87 |
Certifications | ||
| RoHS Compliance | : | Yes |
Packaging | ||
| T&B Sold in UOM | : | Each |
| Outer Package | : | 500 |
| Package Height | : | 8.8 |
| Package Length | : | 14.9 |
| Inner Package | : | 100 |
| Order Multiple | : | 100 |
| Alternate Package Qty | : | RB2233 |
| Package Type | : | Standard |
| T&B Weight Per UOM | : | 2.5 lbs. per 1000 |
| Package Width | : | 9.4 |
Tooling | ||
| Recommended Tool | : | ERG4001 |
| Application Tools | : | ERG4001, ERG4003, WT145C, WT2000, WT112M, WT145A |
General | ||
| Stud Size | : | #8 |
| Color | : | Blue |
| Insulation Type | : | Insulated Nylon |
| Material | : | Copper |
| Wire Range | : | 18-14 |
| Finish | : | Electro Tin-Plated |
| Terminal Series | : | RB |
Specifications | ||
| Temperature Rating | : | 105°C |
| Flammability Rating | : | UL 94 V-2 |
| Voltage Rating | : | 600V |
- Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring.
- UL
- CSA
Dimension Information
M (inches) : .71 Stock Thickness : .03 Maximum Insulation (inches) : .162 B (inches) : .29 C (inches) : .25 A (inches) : .87 Certifications
RoHS Compliance : Yes Packaging
T&B Sold in UOM : Each Outer Package : 500 Package Height : 8.8 Package Length : 14.9 Inner Package : 100 Order Multiple : 100 Alternate Package Qty : RB2233 Package Type : Standard T&B Weight Per UOM : 2.5 lbs. per 1000 Package Width : 9.4 Tooling
Recommended Tool : ERG4001 Application Tools : ERG4001, ERG4003, WT145C, WT2000, WT112M, WT145A General
Stud Size : #8 Color : Blue Insulation Type : Insulated Nylon Material : Copper Wire Range : 18-14 Finish : Electro Tin-Plated Terminal Series : RB Specifications
Temperature Rating : 105°C Flammability Rating : UL 94 V-2 Voltage Rating : 600V - Certifications
RoHS Compliance
