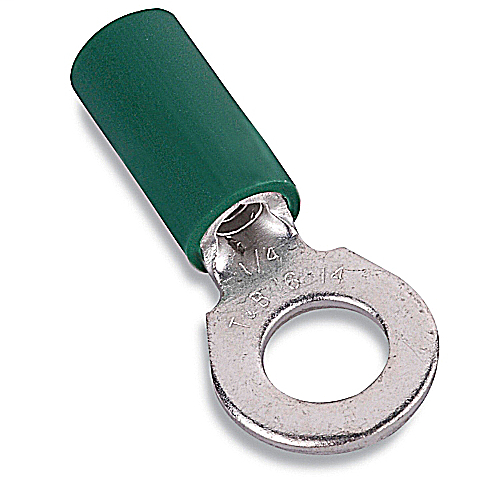

Ring Terminal
MFG #RBC717
$4.18Â /Â E
EACH
EACH
Product Description:
Vinyl Insulated Heavy-Duty Ring Terminal, Length 1.19 Inches, Width .51 Inches, Maximum Insulation .210, Bolt Hole 1/4 Inch, Wire Range #16-#14 Heavy Duty AWG, Color Blue, Copper, Tin Plated, 500 Pack
HESCO Part Number
TBRBC717
UPC
78621088034
Manufacturer Part Number
RBC717
Manufacturer
Thomas & Betts
Ring Terminal
MFG #RBC717
Product Description:
Vinyl Insulated Heavy-Duty Ring Terminal, Length 1.19 Inches, Width .51 Inches, Maximum Insulation .210, Bolt Hole 1/4 Inch, Wire Range #16-#14 Heavy Duty AWG, Color Blue, Copper, Tin Plated, 500 Pack
HESCO Part Number
TBRBC717
UPC
78621088034
Manufacturer Part Number
RBC717
Manufacturer
Thomas & Betts
$4.18Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Funneled Barrel Entry, Deep Internal Serrations, Brazed or overlapping seams.
- Application Tools: WT2000, ERG4001
- Alternate Package Qty: 14RBC-14
North American Specifications (UNSPSC)
| UNSPSC | :Â Â | 39121432 Electrical terminals |
| IGCC | :Â Â | 4603 Electrical terminals |
| Brand Name | :Â Â | Sta-Kon |
| Type | :Â Â | Ring Terminal |
| Special Features | :Â Â | Funneled Barrel Entry, Deep Internal Serrations, Brazed or overlapping seams. |
| Standard | :Â Â | UL E9809 |
| Wire Size | :Â Â | 16-14 Heavy Duty |
| Voltage Rating | :Â Â | 600V |
| Material | :Â Â | Copper |
| Color | :Â Â | Green |
Packaging | ||
| Inner Quantity | :Â Â | 500 |
| Inner Dimensions (inches) | :Â Â | 6.1x4.6x3.1 |
| Outer Quantity | :Â Â | 5000 |
| Outer Dimensions (inches) | :Â Â | 17x10x7.7 |
| Weight Uom | :Â Â | 6.88 lbs. per 1000 |
European Specifications (ETIM) | ||
| ETIM | :Â Â | EC001052 Solderless copper terminals for copper conductors |
| Flange shape | :Â Â | Ring shape |
| Insulation | :Â Â | PVC |
| Colour insulation | :Â Â | Blue |
| Reel packaging | :Â Â | N |
| AWG-range | :Â Â | 16-14 |
| Material | :Â Â | Copper |
| Surface protection | :Â Â | Tinned |
- Funneled Barrel Entry, Deep Internal Serrations, Brazed or overlapping seams.
- Application Tools: WT2000, ERG4001
- Alternate Package Qty: 14RBC-14
North American Specifications (UNSPSC)
UNSPSC :Â Â 39121432 Electrical terminals IGCC :Â Â 4603 Electrical terminals Brand Name :Â Â Sta-Kon Type :Â Â Ring Terminal Special Features :Â Â Funneled Barrel Entry, Deep Internal Serrations, Brazed or overlapping seams. Standard :Â Â UL E9809 Wire Size :Â Â 16-14 Heavy Duty Voltage Rating :Â Â 600V Material :Â Â Copper Color :Â Â Green Packaging
Inner Quantity :Â Â 500 Inner Dimensions (inches) :Â Â 6.1x4.6x3.1 Outer Quantity :Â Â 5000 Outer Dimensions (inches) :Â Â 17x10x7.7 Weight Uom :Â Â 6.88 lbs. per 1000 European Specifications (ETIM)
ETIM :Â Â EC001052 Solderless copper terminals for copper conductors Flange shape :Â Â Ring shape Insulation :Â Â PVC Colour insulation :Â Â Blue Reel packaging :Â Â N AWG-range :Â Â 16-14 Material :Â Â Copper Surface protection :Â Â Tinned - Downloads
Spec SheetTechnical Drawing / Spec Sheet USTechnical Drawing / Spec Sheet Canada
