AL FULLTENS COMP SLEEVE 2ASCR
MFG #RC2BB
$47.18Â /Â E
EACH
EACH
Product Description:

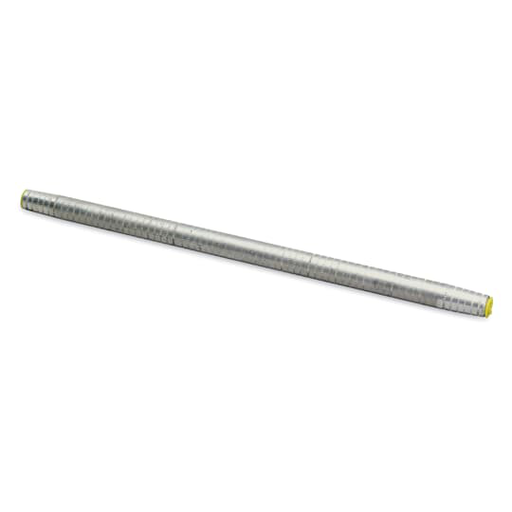

Aluminum Compression Connector Sleeve Conductor (STR) 2 ACSR, 2 AAAC, 2 5005, 2 AAC MECH DIES: 5/8 - 1, W-245, 635, BG HYDR DIES: B30EA, B24EA, 245, 687 Single, Full Tension Sleeve
HESCO Part Number
BLBRC2BB
UPC
783786051175
Manufacturer Part Number
RC2BB
Manufacturer
Thomas & Betts
AL FULLTENS COMP SLEEVE 2ASCR
MFG #RC2BB
Product Description:
Aluminum Compression Connector Sleeve Conductor (STR) 2 ACSR, 2 AAAC, 2 5005, 2 AAC MECH DIES: 5/8 - 1, W-245, 635, BG HYDR DIES: B30EA, B24EA, 245, 687 Single, Full Tension Sleeve
HESCO Part Number
BLBRC2BB
UPC
783786051175
Manufacturer Part Number
RC2BB
Manufacturer
Thomas & Betts
$47.18Â /Â E
EACH
EACH
- Specifications
Classifications
| WEEE Category | :Â Â | Product Not in WEEE Scope |
| IDEA Granular Category Code (IGCC) | :Â Â | 4669 >> Wire or cable compression splice |
Additional Information | ||
| Application | :Â Â | Distribution Compression Connector |
| Brand / Label | :Â Â | Blackburn |
| Connection Type | :Â Â | Compression |
| Effective Date | :Â Â | 19991027 |
| Insulation Material | :Â Â | None |
| Mounting Type | :Â Â | None |
| Number of Conductors | :Â Â | 2 |
| Product Name | :Â Â | AL TENSION SPLICE |
| Product Type | :Â Â | Compression Splice |
| Size | :Â Â | 13-5/8 inch |
| Special Functions | :Â Â | Center stop assures proper conductor positioning. External end taper provides conductor stress relief, ease of stringing and corona protection. Internal end chamfer allows easy conductor insertion and prevents sharp edge contact with conductor. Replaces two-piece splices. Type RC Single Sleeve, Full Tension Splice for ACSR, AAAC, 5005 and AAC Conductor. |
| Standards | :Â Â | ANSI C119.4 |
Ordering | ||
| Country of Origin | :Â Â | Mexico (MX) |
| Selling Unit of Measure | :Â Â | each |
Classifications
WEEE Category :Â Â Product Not in WEEE Scope IDEA Granular Category Code (IGCC) :Â Â 4669 >> Wire or cable compression splice Additional Information
Application :Â Â Distribution Compression Connector Brand / Label :Â Â Blackburn Connection Type :Â Â Compression Effective Date :Â Â 19991027 Insulation Material :Â Â None Mounting Type :Â Â None Number of Conductors :Â Â 2 Product Name :Â Â AL TENSION SPLICE Product Type :Â Â Compression Splice Size :Â Â 13-5/8 inch Special Functions :Â Â Center stop assures proper conductor positioning. External end taper provides conductor stress relief, ease of stringing and corona protection. Internal end chamfer allows easy conductor insertion and prevents sharp edge contact with conductor. Replaces two-piece splices. Type RC Single Sleeve, Full Tension Splice for ACSR, AAAC, 5005 and AAC Conductor. Standards :Â Â ANSI C119.4 Ordering
Country of Origin :Â Â Mexico (MX) Selling Unit of Measure :Â Â each
