Ring Terminal
MFG #RZ22-2
$2.63 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
Product Description:

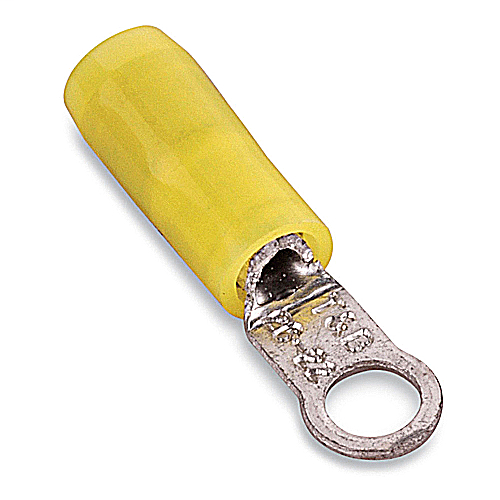

Insulated Nylon Ring Terminal For Wire Range 26-22 Stud Size #2, Yellow
HESCO Part Number
TBRZ222
UPC
78621080452
Manufacturer Part Number
RZ22-2
Manufacturer
Thomas & Betts
Ring Terminal
MFG #RZ22-2
Product Description:
Insulated Nylon Ring Terminal For Wire Range 26-22 Stud Size #2, Yellow
HESCO Part Number
TBRZ222
UPC
78621080452
Manufacturer Part Number
RZ22-2
Manufacturer
Thomas & Betts
$2.63 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
- Features
- Specifications
- Resources
- Self-insulated with high dieletric-strength nylon sleeves. An inner bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep.
Dimension Information
| A (inches) | : | .57 |
| Maximum Insulation (inches) | : | .083 |
| C (inches) | : | .13 |
| Stock Thickness | : | .02 |
| M (inches) | : | .49 |
| B (inches) | : | .14 |
Certifications | ||
| RoHS Compliance | : | Yes |
Packaging | ||
| Package Length | : | 5.1 |
| Outer Package | : | 500 |
| T&B Sold in UOM | : | Each |
| Package Type | : | Standard |
| T&B Weight Per UOM | : | 1.25 lbs. per 1000 |
| Inner Package | : | 100 |
| Order Multiple | : | 100 |
| Package Height | : | 1.9 |
| Package Width | : | 2.7 |
Tooling | ||
| Recommended Tool | : | ERG4006 |
| Application Tools | : | WT1452 |
General | ||
| Material | : | Copper |
| Finish | : | Electro Tin-Plated |
| Insulation Type | : | Insulated Nylon |
| Terminal Series | : | RZ |
| Stud Size | : | #2 |
| Color | : | Yellow |
| Wire Range | : | 26-22 |
Specifications | ||
| Flammability Rating | : | UL 94 V-2 |
| Voltage Rating | : | 600V |
| Temperature Rating | : | 105°C |
