Intermediate
MFG #TY125-40X
$0.25 / E
EACH
EACH
Product Description:

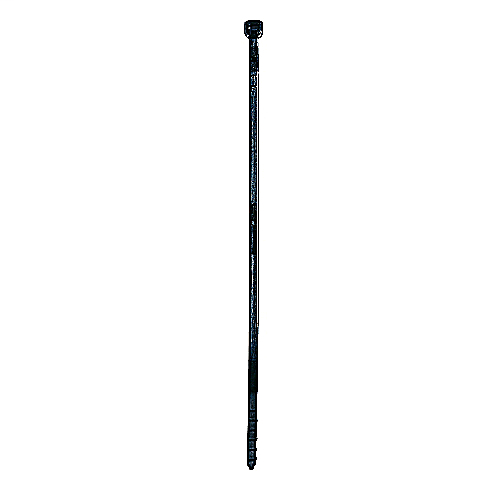

Cable Tie, Black Polyamide (Nylon 6.6) for Temperatures up to 85 Degrees Celsius (185 F), Weather and Ultraviolet Resistant for Indoor and Outdoor Applications, Length of 141.48mm (5.57 Inches), Width of 3.556mm (0.140 Inches), Thickness of 1.17mm (0.046 Inches), Tensile Strength Rating of 180 Newtons (40 Pounds), Bulk Pack
HESCO Part Number
TBTY12540X
UPC
78621089856
Manufacturer Part Number
TY125-40X
Manufacturer
Thomas & Betts
Intermediate
MFG #TY125-40X
Product Description:
Cable Tie, Black Polyamide (Nylon 6.6) for Temperatures up to 85 Degrees Celsius (185 F), Weather and Ultraviolet Resistant for Indoor and Outdoor Applications, Length of 141.48mm (5.57 Inches), Width of 3.556mm (0.140 Inches), Thickness of 1.17mm (0.046 Inches), Tensile Strength Rating of 180 Newtons (40 Pounds), Bulk Pack
HESCO Part Number
TBTY12540X
UPC
78621089856
Manufacturer Part Number
TY125-40X
Manufacturer
Thomas & Betts
$0.25 / E
EACH
EACH
- Features
- Specifications
- Resources
- The integrally formed nylon pawl combines low insertion and high locking strength.
- Application Tools: ERG50, QC-100, L-200, L-400-C
North American Specifications (UNSPSC)
| UNSPSC | : | 39121703 Cable ties |
| IGCC | : | 5034 Cable ties |
| Brand Name | : | Ty-Fast |
| Type | : | Intermediate |
| Special Features | : | The integrally formed nylon pawl combines low insertion and high locking strength. |
| Standard | : | UL E49405 |
| Width | : | 0.14 in ; 3.556 mm |
| Length | : | 5.57 in ; 141.48 mm |
| Thickness | : | 0.046 Inch/1.17mm |
| Bundle Diameter | : | 0.06 Inches/1.6mm-1.26 Inches/32mm |
| Material | : | Nylon/Polyamide 6.6 Weather Resistant |
| Color | : | Black |
| Lock Mechanism | : | Plastic Pawl |
| Tensile Strength | : | 40 Pounds/180 Newtons |
European Specifications (ETIM) | ||
| ETIM | : | EC000046 Cable tie |
| Band width | : | 3.556mm |
| Length belt/tape/tie | : | 141.48mm |
| Tie thickness | : | 1.17mm |
| Max. bundle diameter | : | 31.75mm |
| Min. holding force | : | 180N |
| Operating temperature | : | -40-+85°C |
| Model | : | Internal toothing |
| Band closure | : | Plastic lip/-cam |
| Material | : | Plastic |
| Material quality | : | Polyamide PA |
| Surface protection | : | Untreated |
| Halogen free | : | Y |
| Colour | : | Black |
| Transparent | : | N |
| Reflective (fluorescent) | : | N |
| Text strip | : | None |
| Solvable fastener | : | N |
| MIL approval | : | N |
| UL approval | : | Y |
Packaging | ||
| Inner Quantity | : | 1000 |
| Inner Dimensions (inches) | : | 12.7x9x2.6 |
| Outer Quantity | : | 10000 |
| Outer Dimensions (inches) | : | 17.1x13.2x10.5 |
| Weight Uom | : | 1.36 lbs. per 1000 |
- The integrally formed nylon pawl combines low insertion and high locking strength.
- Application Tools: ERG50, QC-100, L-200, L-400-C
North American Specifications (UNSPSC)
UNSPSC : 39121703 Cable ties IGCC : 5034 Cable ties Brand Name : Ty-Fast Type : Intermediate Special Features : The integrally formed nylon pawl combines low insertion and high locking strength. Standard : UL E49405 Width : 0.14 in ; 3.556 mm Length : 5.57 in ; 141.48 mm Thickness : 0.046 Inch/1.17mm Bundle Diameter : 0.06 Inches/1.6mm-1.26 Inches/32mm Material : Nylon/Polyamide 6.6 Weather Resistant Color : Black Lock Mechanism : Plastic Pawl Tensile Strength : 40 Pounds/180 Newtons European Specifications (ETIM)
ETIM : EC000046 Cable tie Band width : 3.556mm Length belt/tape/tie : 141.48mm Tie thickness : 1.17mm Max. bundle diameter : 31.75mm Min. holding force : 180N Operating temperature : -40-+85°C Model : Internal toothing Band closure : Plastic lip/-cam Material : Plastic Material quality : Polyamide PA Surface protection : Untreated Halogen free : Y Colour : Black Transparent : N Reflective (fluorescent) : N Text strip : None Solvable fastener : N MIL approval : N UL approval : Y Packaging
Inner Quantity : 1000 Inner Dimensions (inches) : 12.7x9x2.6 Outer Quantity : 10000 Outer Dimensions (inches) : 17.1x13.2x10.5 Weight Uom : 1.36 lbs. per 1000 - Downloads
Spec SheetTechnical Drawing / Data Sheet USTechnical Drawing / Data Sheet Canada
