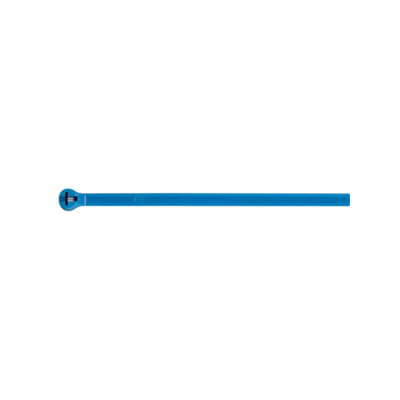

CABLE TIE 50LB 11IN BLUE NYLON
MFG #TY253M-6
$0.86Â /Â E
EACH
EACH
Product Description:
High Performance Cable Tie for Indoor applications, Blue Color Nylon 6.6, Length of 295mm (11.6 Inches) for Bundle Diameter up to 78mm (3.07 Inches), Width of 4.9mm (0.19 Inches), Tensile Strength Rating of 222 Newtons (50 Pounds), Operating Temperature of -60 Degrees Celsius (-76 F) to 85 Degrees Celsius (185 F), UL/EN/CSA62275 Type 2/21S Rated for AH-2 Plenum and as a Flexible Cable and Conduit Support, Military Specified (MIL-SPEC MS3367-7-6), Bulk Pack
HESCO Part Number
TBTY253M6
UPC
786210714776
Manufacturer Part Number
TY253M-6
Manufacturer
Thomas & Betts
CABLE TIE 50LB 11IN BLUE NYLON
MFG #TY253M-6
Product Description:
High Performance Cable Tie for Indoor applications, Blue Color Nylon 6.6, Length of 295mm (11.6 Inches) for Bundle Diameter up to 78mm (3.07 Inches), Width of 4.9mm (0.19 Inches), Tensile Strength Rating of 222 Newtons (50 Pounds), Operating Temperature of -60 Degrees Celsius (-76 F) to 85 Degrees Celsius (185 F), UL/EN/CSA62275 Type 2/21S Rated for AH-2 Plenum and as a Flexible Cable and Conduit Support, Military Specified (MIL-SPEC MS3367-7-6), Bulk Pack
HESCO Part Number
TBTY253M6
UPC
786210714776
Manufacturer Part Number
TY253M-6
Manufacturer
Thomas & Betts
$0.86Â /Â E
EACH
EACH
- Specifications
Additional Information
| Brand / Label | :Â Â | Ty-Rap |
| Bundle Diameter | :Â Â | 0.12 to 3.07 in3 to 78 mm |
| Color | :Â Â | Blue |
| Effective Date | :Â Â | 19720620 |
| Lock Type | :Â Â | Stainless Steel Barb |
| Material | :Â Â | Nylon/Polyamide 6.6 |
| Product Name | :Â Â | NYLON CABLE TIES AND ACCESSORIES |
| Product Type | :Â Â | High Performance |
| Special Functions | :Â Â | Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time. |
| Standards | :Â Â | UL E49405 |
| Tensile Strength | :Â Â | 50 lb222 N |
| Thickness | :Â Â | 0.05 in1.3 mm |
Dimensions | ||
| Product Net Width | :Â Â | 0.19 in4.82 mm |
| Product Net Depth / Length | :Â Â | 11.6 in295 mm |
Classifications | ||
| WEEE Category | :Â Â | Product Not in WEEE Scope |
| IDEA Granular Category Code (IGCC) | :Â Â | 5034 >> Cable ties |
Technical UL/CSA | ||
| Flammability According to UL94 | :Â Â | V-2 |
Ordering | ||
| Country of Origin | :Â Â | United States (US) |
| Selling Unit of Measure | :Â Â | each |
Additional Information
Brand / Label :Â Â Ty-Rap Bundle Diameter :Â Â 0.12 to 3.07 in3 to 78 mm Color :Â Â Blue Effective Date :Â Â 19720620 Lock Type :Â Â Stainless Steel Barb Material :Â Â Nylon/Polyamide 6.6 Product Name :Â Â NYLON CABLE TIES AND ACCESSORIES Product Type :Â Â High Performance Special Functions :Â Â Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time. Standards :Â Â UL E49405 Tensile Strength :Â Â 50 lb222 N Thickness :Â Â 0.05 in1.3 mm Dimensions
Product Net Width :Â Â 0.19 in4.82 mm Product Net Depth / Length :Â Â 11.6 in295 mm Classifications
WEEE Category :Â Â Product Not in WEEE Scope IDEA Granular Category Code (IGCC) :Â Â 5034 >> Cable ties Technical UL/CSA
Flammability According to UL94 :Â Â V-2 Ordering
Country of Origin :Â Â United States (US) Selling Unit of Measure :Â Â each
