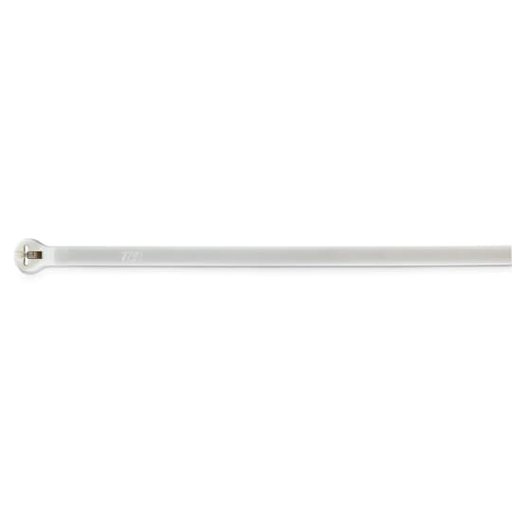

CABLE TIE 50LB 7IN WHI NYL FLM RTD
MFG #TY25MFR
$0.83Â /Â E
EACH
EACH
Product Description:
Cable Tie, Flame Retardant White Nylon 6.6, Temperature Range of -20 to 65 Degrees Celsius (-4 to 149 F) for Indoor Applications, Length of 185mm (7.3 Inches), Width of 4.6mm (0.18 Inch), Thickness of 1.3mm (0.05 Inch), Maximum Bundle Diameter 48mm (1.89 Inches), Tensile Strength Rating of 220 Newtons (49 Pounds)
HESCO Part Number
TBTY25MFR
UPC
786210899466
Manufacturer Part Number
TY25MFR
Manufacturer
Thomas & Betts
CABLE TIE 50LB 7IN WHI NYL FLM RTD
MFG #TY25MFR
Product Description:
Cable Tie, Flame Retardant White Nylon 6.6, Temperature Range of -20 to 65 Degrees Celsius (-4 to 149 F) for Indoor Applications, Length of 185mm (7.3 Inches), Width of 4.6mm (0.18 Inch), Thickness of 1.3mm (0.05 Inch), Maximum Bundle Diameter 48mm (1.89 Inches), Tensile Strength Rating of 220 Newtons (49 Pounds)
HESCO Part Number
TBTY25MFR
UPC
786210899466
Manufacturer Part Number
TY25MFR
Manufacturer
Thomas & Betts
$0.83Â /Â E
EACH
EACH
- Specifications
Additional Information
| Brand / Label | :Â Â | Ty-Rap |
| Bundle Diameter | :Â Â | 0.12 to 1.89 in3.0 to 48 mm |
| Color | :Â Â | White |
| Effective Date | :Â Â | 19780502 |
| Lock Type | :Â Â | Stainless Steel Barb |
| Material | :Â Â | Nylon/Polyamide 6.6 |
| Product Name | :Â Â | NYLON CABLE TIES AND ACCESSORIES |
| Product Type | :Â Â | Flame Retardant |
| Special Functions | :Â Â | Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time. |
| Standards | :Â Â | UL E49405 |
| Tensile Strength | :Â Â | 49 lb220 N |
| Thickness | :Â Â | 0.05 in1.3 mm |
Dimensions | ||
| Product Net Width | :Â Â | 0.18 in4.57 mm |
| Product Net Depth / Length | :Â Â | 7.3 in185 mm |
Classifications | ||
| WEEE Category | :Â Â | Product Not in WEEE Scope |
| IDEA Granular Category Code (IGCC) | :Â Â | 5034 >> Cable ties |
Technical UL/CSA | ||
| Flammability According to UL94 | :Â Â | V-0 |
Ordering | ||
| Country of Origin | :Â Â | Hungary (HU) |
| Selling Unit of Measure | :Â Â | each |
Additional Information
Brand / Label :Â Â Ty-Rap Bundle Diameter :Â Â 0.12 to 1.89 in3.0 to 48 mm Color :Â Â White Effective Date :Â Â 19780502 Lock Type :Â Â Stainless Steel Barb Material :Â Â Nylon/Polyamide 6.6 Product Name :Â Â NYLON CABLE TIES AND ACCESSORIES Product Type :Â Â Flame Retardant Special Functions :Â Â Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time. Standards :Â Â UL E49405 Tensile Strength :Â Â 49 lb220 N Thickness :Â Â 0.05 in1.3 mm Dimensions
Product Net Width :Â Â 0.18 in4.57 mm Product Net Depth / Length :Â Â 7.3 in185 mm Classifications
WEEE Category :Â Â Product Not in WEEE Scope IDEA Granular Category Code (IGCC) :Â Â 5034 >> Cable ties Technical UL/CSA
Flammability According to UL94 :Â Â V-0 Ordering
Country of Origin :Â Â Hungary (HU) Selling Unit of Measure :Â Â each
