Thomas & Betts

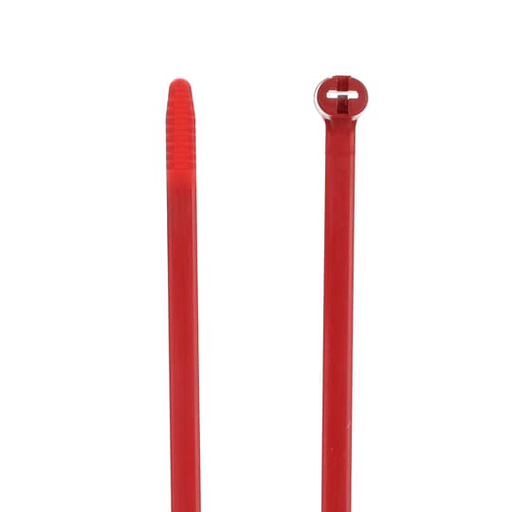

CABLE TIE 120LB 24IN RED NYLON
MFG #TY277M-2
$3.32Â /Â E
EACH
EACH
Product Description:
High Performance Cable Tie for Indoor Applications, Red Color Nylon 6.6, Length of 617mm (24.3 Inches) for Bundle Diameter up to 177mm (6.96 Inches), Width of 6.9mm (0.27 Inch), Tensile Strength Rating of 534 Newtons (120 Pounds), Operating Temperature of -60 Degrees Celsius (-76 F) to 85 Degrees Celsius (185 F), UL/EN/CSA62275 Type 2/21S Rated for AH-2 Plenum and as a Flexible Cable and Conduit Support, Bulk Pack
HESCO Part Number
TBTY277M2
UPC
786210117645
Manufacturer Part Number
TY277M-2
Manufacturer
Thomas & Betts
Thomas & Betts
CABLE TIE 120LB 24IN RED NYLON
MFG #TY277M-2
Product Description:
High Performance Cable Tie for Indoor Applications, Red Color Nylon 6.6, Length of 617mm (24.3 Inches) for Bundle Diameter up to 177mm (6.96 Inches), Width of 6.9mm (0.27 Inch), Tensile Strength Rating of 534 Newtons (120 Pounds), Operating Temperature of -60 Degrees Celsius (-76 F) to 85 Degrees Celsius (185 F), UL/EN/CSA62275 Type 2/21S Rated for AH-2 Plenum and as a Flexible Cable and Conduit Support, Bulk Pack
HESCO Part Number
TBTY277M2
UPC
786210117645
Manufacturer Part Number
TY277M-2
Manufacturer
Thomas & Betts
$3.32Â /Â E
EACH
EACH
- Specifications
Additional Information
| Brand / Label | :Â Â | Ty-Rap |
| Bundle Diameter | :Â Â | 0.236 to 6.96 in6 to 177 mm |
| Color | :Â Â | Red |
| Effective Date | :Â Â | 19940420 |
| Lock Type | :Â Â | Stainless Steel Barb |
| Material | :Â Â | Nylon/Polyamide 6.6 |
| Product Name | :Â Â | NYLON CABLE TIES AND ACCESSORIES |
| Product Type | :Â Â | High Performance |
| Special Functions | :Â Â | Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time. |
| Standards | :Â Â | UL E49405 |
| Tensile Strength | :Â Â | 120 lb530 N |
| Thickness | :Â Â | 0.06 in1.65 mm |
Dimensions | ||
| Product Net Width | :Â Â | 0.27 in7 mm |
| Product Net Depth / Length | :Â Â | 24.3 in617 mm |
Classifications | ||
| WEEE Category | :Â Â | Product Not in WEEE Scope |
| IDEA Granular Category Code (IGCC) | :Â Â | 5034 >> Cable ties |
Technical UL/CSA | ||
| Flammability According to UL94 | :Â Â | V-2 |
Ordering | ||
| Country of Origin | :Â Â | United States (US) |
| Selling Unit of Measure | :Â Â | each |
Additional Information
Brand / Label :Â Â Ty-Rap Bundle Diameter :Â Â 0.236 to 6.96 in6 to 177 mm Color :Â Â Red Effective Date :Â Â 19940420 Lock Type :Â Â Stainless Steel Barb Material :Â Â Nylon/Polyamide 6.6 Product Name :Â Â NYLON CABLE TIES AND ACCESSORIES Product Type :Â Â High Performance Special Functions :Â Â Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time. Standards :Â Â UL E49405 Tensile Strength :Â Â 120 lb530 N Thickness :Â Â 0.06 in1.65 mm Dimensions
Product Net Width :Â Â 0.27 in7 mm Product Net Depth / Length :Â Â 24.3 in617 mm Classifications
WEEE Category :Â Â Product Not in WEEE Scope IDEA Granular Category Code (IGCC) :Â Â 5034 >> Cable ties Technical UL/CSA
Flammability According to UL94 :Â Â V-2 Ordering
Country of Origin :Â Â United States (US) Selling Unit of Measure :Â Â each
