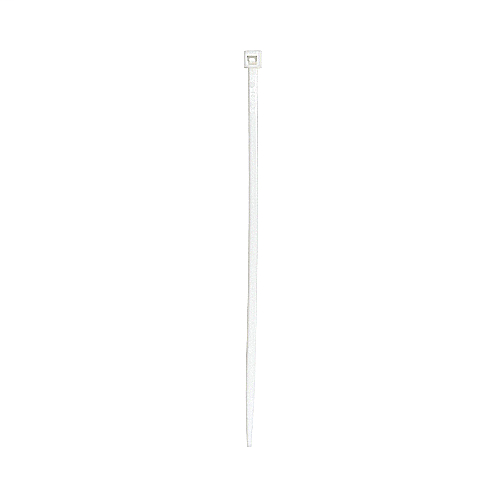

Heavy-Duty Cable Tie
MFG #TY400-120
$0.70 / e
EACH
EACH
Product Description:
Cable Tie, Natural Polyamide (Nylon 6.6) for Temperatures up to 85 Degrees Celsius (185 F) for Indoor Applications, UL/EN/CSA62275 Type 2/21S Rated for AH-2 Plenum and as a Flexible Cable and Conduit Support, Length of 374.65mm (14.75 Inches), Width of 7.595mm (0.299 Inches), Thickness of 1.90mm (0.075 Inches), Tensile Strength Rating of 540 Newtons (120 Pounds), Bulk Pack
HESCO Part Number
TBTY400120
UPC
78621089826
Manufacturer Part Number
TY400-120
Manufacturer
Thomas & Betts
Heavy-Duty Cable Tie
MFG #TY400-120
Product Description:
Cable Tie, Natural Polyamide (Nylon 6.6) for Temperatures up to 85 Degrees Celsius (185 F) for Indoor Applications, UL/EN/CSA62275 Type 2/21S Rated for AH-2 Plenum and as a Flexible Cable and Conduit Support, Length of 374.65mm (14.75 Inches), Width of 7.595mm (0.299 Inches), Thickness of 1.90mm (0.075 Inches), Tensile Strength Rating of 540 Newtons (120 Pounds), Bulk Pack
HESCO Part Number
TBTY400120
UPC
78621089826
Manufacturer Part Number
TY400-120
Manufacturer
Thomas & Betts
$0.70 / e
EACH
EACH
- Features
- Specifications
- Resources
- The integrally formed nylon pawl combines low insertion and high locking strength.
- Application Tools: ERG120
North American Specifications (UNSPSC)
| UNSPSC | : | 39121703 Cable ties |
| IGCC | : | 5034 Cable ties |
| Brand Name | : | Ty-Fast |
| Type | : | Heavy-Duty Cable Tie |
| Special Features | : | The integrally formed nylon pawl combines low insertion and high locking strength. |
| Standard | : | UL E49405 |
| Width | : | 0.299 in ; 7.595 mm |
| Length | : | 14.76 in ; 374.65 mm |
| Thickness | : | 0.05 Inch/1.31mm |
| Bundle Diameter | : | 0.189 Inches/4.8mm-4.02 Inches/102mm |
| Material | : | Nylon/Polyamide 6.6 |
| Color | : | Natural |
| Lock Mechanism | : | Plastic Pawl |
| Tensile Strength | : | 120 Pounds/534 Newtons |
Packaging | ||
| Inner Quantity | : | 500 |
| Outer Quantity | : | 2500 |
| Outer Dimensions (inches) | : | 18.2x13.4x13.4 |
| Weight Uom | : | 1.5 lbs. per 100 |
European Specifications (ETIM) | ||
| ETIM | : | EC000046 Cable tie |
| Band width | : | 7.595mm |
| Length belt/tape/tie | : | 374.65mm |
| Tie thickness | : | 1.9mm |
| Max. bundle diameter | : | 101.6mm |
| Min. holding force | : | 540N |
| Operating temperature | : | -40-+85°C |
| Model | : | Internal toothing |
| Band closure | : | Plastic lip/-cam |
| Material | : | Plastic |
| Material quality | : | Polyamide PA |
| Surface protection | : | Untreated |
| Halogen free | : | Y |
| Colour | : | Natural colour |
| Transparent | : | N |
| Reflective (fluorescent) | : | N |
| Text strip | : | None |
| Solvable fastener | : | N |
| VG approval | : | N |
| MIL approval | : | N |
| UL approval | : | Y |
- The integrally formed nylon pawl combines low insertion and high locking strength.
- Application Tools: ERG120
North American Specifications (UNSPSC)
UNSPSC : 39121703 Cable ties IGCC : 5034 Cable ties Brand Name : Ty-Fast Type : Heavy-Duty Cable Tie Special Features : The integrally formed nylon pawl combines low insertion and high locking strength. Standard : UL E49405 Width : 0.299 in ; 7.595 mm Length : 14.76 in ; 374.65 mm Thickness : 0.05 Inch/1.31mm Bundle Diameter : 0.189 Inches/4.8mm-4.02 Inches/102mm Material : Nylon/Polyamide 6.6 Color : Natural Lock Mechanism : Plastic Pawl Tensile Strength : 120 Pounds/534 Newtons Packaging
Inner Quantity : 500 Outer Quantity : 2500 Outer Dimensions (inches) : 18.2x13.4x13.4 Weight Uom : 1.5 lbs. per 100 European Specifications (ETIM)
ETIM : EC000046 Cable tie Band width : 7.595mm Length belt/tape/tie : 374.65mm Tie thickness : 1.9mm Max. bundle diameter : 101.6mm Min. holding force : 540N Operating temperature : -40-+85°C Model : Internal toothing Band closure : Plastic lip/-cam Material : Plastic Material quality : Polyamide PA Surface protection : Untreated Halogen free : Y Colour : Natural colour Transparent : N Reflective (fluorescent) : N Text strip : None Solvable fastener : N VG approval : N MIL approval : N UL approval : Y - Downloads
Spec SheetTechnical Drawing / Data Sheet USTechnical Drawing / Data Sheet Canada
