Thomas & Betts

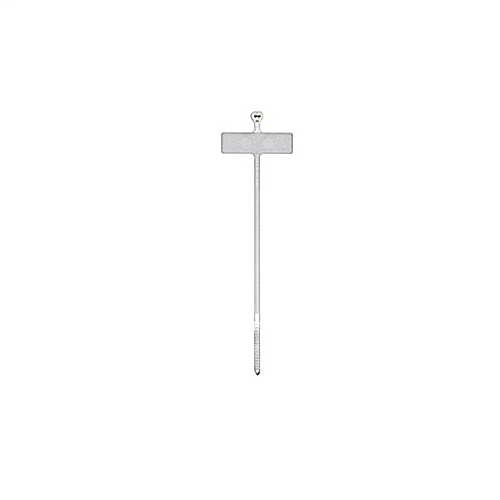

Identification Cable Tie
MFG #TY512M
$0.87 / E
EACH
EACH
Product Description:
Identification Cable Tie, Natural Polyamide (Nylon 6.6) for Temperatures up to 85 Degrees Celsius (185 F) for Indoor Applications, Length of 208.29mm (8.2 Inches), Width of 2.02mm (0.08 Inch), Thickness of 0.77mm (0.03 Inch), Marking Pad Size of 25.15mm (0.99 Inch) x 7.67mm (0.302 Inch), Tensile Strength Rating of 80 Newtons (18 Pounds), Bulk Pack
HESCO Part Number
TBTY512M
UPC
78621083971
Manufacturer Part Number
TY512M
Manufacturer
Thomas & Betts
Thomas & Betts
Identification Cable Tie
MFG #TY512M
Product Description:
Identification Cable Tie, Natural Polyamide (Nylon 6.6) for Temperatures up to 85 Degrees Celsius (185 F) for Indoor Applications, Length of 208.29mm (8.2 Inches), Width of 2.02mm (0.08 Inch), Thickness of 0.77mm (0.03 Inch), Marking Pad Size of 25.15mm (0.99 Inch) x 7.67mm (0.302 Inch), Tensile Strength Rating of 80 Newtons (18 Pounds), Bulk Pack
HESCO Part Number
TBTY512M
UPC
78621083971
Manufacturer Part Number
TY512M
Manufacturer
Thomas & Betts
$0.87 / E
EACH
EACH
- Specifications
- Resources
European Specifications (ETIM)
| ETIM | : | EC000046 Cable tie |
| Band width | : | 2.02mm |
| Length belt/tape/tie | : | 208.29mm |
| Tie thickness | : | 0.77mm |
| Max. bundle diameter | : | 51mm |
| Min. holding force | : | 80N |
| Operating temperature | : | -40-+85°C |
| Model | : | Internal toothing |
| Band closure | : | Steel nose |
| Material | : | Plastic |
| Material quality | : | Polyamide PA |
| Surface protection | : | Untreated |
| UV-stable acc. ASTM D6779 | : | N |
| Halogen free | : | Y |
| Colour | : | Natural colour |
| Transparent | : | N |
| Reflective (fluorescent) | : | N |
| Text strip | : | Adjacent to bundle |
| Solvable fastener | : | N |
| VG approval | : | N |
| MIL approval | : | N |
| UL approval | : | N |
North American Specifications (UNSPSC) | ||
| UNSPSC | : | 39121703 Cable ties |
| IGCC | : | 5040 I.D. Ties |
| Brand Name | : | Ty-Rap |
| Type | : | Identification Cable Tie |
| Standard | : | UL E49405 |
| Width | : | 0.094 in ; 2.4 mm |
| Length | : | 8.27 in ; 210 mm |
| Thickness | : | 1.0 Inch/25.4mm |
| Bundle Diameter | : | 0.39 Inch/10mm-2.0 Inches/51mm |
| Material | : | Nylon/Polyamide 6.6 |
| Color | : | Natural |
| Lock Mechanism | : | Stainless Steel Barb |
| Tensile Strength | : | 18 Pounds/80 Newtons |
Packaging | ||
| Inner Quantity | : | 1000 |
| Outer Quantity | : | 5000 |
| Outer Dimensions (inches) | : | 15.2x12.9x8.9 |
| Weight Uom | : | 1.88 lbs. per 1000 |
European Specifications (ETIM)
ETIM : EC000046 Cable tie Band width : 2.02mm Length belt/tape/tie : 208.29mm Tie thickness : 0.77mm Max. bundle diameter : 51mm Min. holding force : 80N Operating temperature : -40-+85°C Model : Internal toothing Band closure : Steel nose Material : Plastic Material quality : Polyamide PA Surface protection : Untreated UV-stable acc. ASTM D6779 : N Halogen free : Y Colour : Natural colour Transparent : N Reflective (fluorescent) : N Text strip : Adjacent to bundle Solvable fastener : N VG approval : N MIL approval : N UL approval : N North American Specifications (UNSPSC)
UNSPSC : 39121703 Cable ties IGCC : 5040 I.D. Ties Brand Name : Ty-Rap Type : Identification Cable Tie Standard : UL E49405 Width : 0.094 in ; 2.4 mm Length : 8.27 in ; 210 mm Thickness : 1.0 Inch/25.4mm Bundle Diameter : 0.39 Inch/10mm-2.0 Inches/51mm Material : Nylon/Polyamide 6.6 Color : Natural Lock Mechanism : Stainless Steel Barb Tensile Strength : 18 Pounds/80 Newtons Packaging
Inner Quantity : 1000 Outer Quantity : 5000 Outer Dimensions (inches) : 15.2x12.9x8.9 Weight Uom : 1.88 lbs. per 1000 - Downloads
