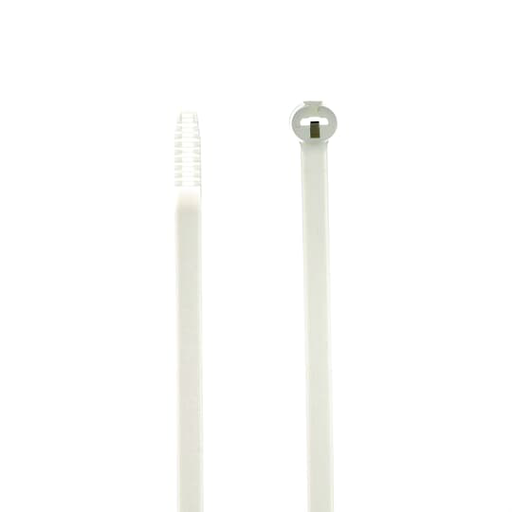

CBL TIE 120LB 24IN NATURAL NYLON
MFG #TY5277M
$2.62Â /Â E
(Must order in increments of 50/E)
(Must order in increments of 50/E)
Product Description:
High Performance Cable Tie, Natural Color Nylon 6.6, Length of 617mm (24.3 Inches) for Bundle Diameter up to 177mm (6.97 Inches), Width of 6.9mm (0.27 Inch), Tensile Strength Rating of 534 Newtons (120 Pounds), Operating Temperature of -60 Degrees Celsius (-76 F) to 85 Degrees Celsius (185 F)
HESCO Part Number
TBTY5277M
UPC
786210870823
Manufacturer Part Number
TY5277M
Manufacturer
Thomas & Betts
CBL TIE 120LB 24IN NATURAL NYLON
MFG #TY5277M
Product Description:
High Performance Cable Tie, Natural Color Nylon 6.6, Length of 617mm (24.3 Inches) for Bundle Diameter up to 177mm (6.97 Inches), Width of 6.9mm (0.27 Inch), Tensile Strength Rating of 534 Newtons (120 Pounds), Operating Temperature of -60 Degrees Celsius (-76 F) to 85 Degrees Celsius (185 F)
HESCO Part Number
TBTY5277M
UPC
786210870823
Manufacturer Part Number
TY5277M
Manufacturer
Thomas & Betts
$2.62Â /Â E
(Must order in increments of 50/E)
(Must order in increments of 50/E)
- Specifications
Additional Information
| Brand / Label | :Â Â | Ty-Rap |
| Bundle Diameter | :Â Â | Max 6.97 inMax 177 mm |
| Color | :Â Â | Natural |
| Effective Date | :Â Â | 19900615 |
| Lock Type | :Â Â | Stainless Steel Barb |
| Product Name | :Â Â | NYLON CABLE TIE |
| Product Type | :Â Â | High Performance |
| Special Functions | :Â Â | Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time. |
| Standards | :Â Â | UL E49405 |
| Tensile Strength | :Â Â | 120 lb534 N |
| Thickness | :Â Â | 0.06 in1.5 mm |
Dimensions | ||
| Product Net Depth / Length | :Â Â | 24.3 in617 mm |
Classifications | ||
| WEEE Category | :Â Â | Product Not in WEEE Scope |
| IDEA Granular Category Code (IGCC) | :Â Â | 5034 >> Cable ties |
Technical UL/CSA | ||
| Flammability According to UL94 | :Â Â | V-2 |
Ordering | ||
| Country of Origin | :Â Â | United States (US) |
| Selling Unit of Measure | :Â Â | each |
Additional Information
Brand / Label :Â Â Ty-Rap Bundle Diameter :Â Â Max 6.97 inMax 177 mm Color :Â Â Natural Effective Date :Â Â 19900615 Lock Type :Â Â Stainless Steel Barb Product Name :Â Â NYLON CABLE TIE Product Type :Â Â High Performance Special Functions :Â Â Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time. Standards :Â Â UL E49405 Tensile Strength :Â Â 120 lb534 N Thickness :Â Â 0.06 in1.5 mm Dimensions
Product Net Depth / Length :Â Â 24.3 in617 mm Classifications
WEEE Category :Â Â Product Not in WEEE Scope IDEA Granular Category Code (IGCC) :Â Â 5034 >> Cable ties Technical UL/CSA
Flammability According to UL94 :Â Â V-2 Ordering
Country of Origin :Â Â United States (US) Selling Unit of Measure :Â Â each
