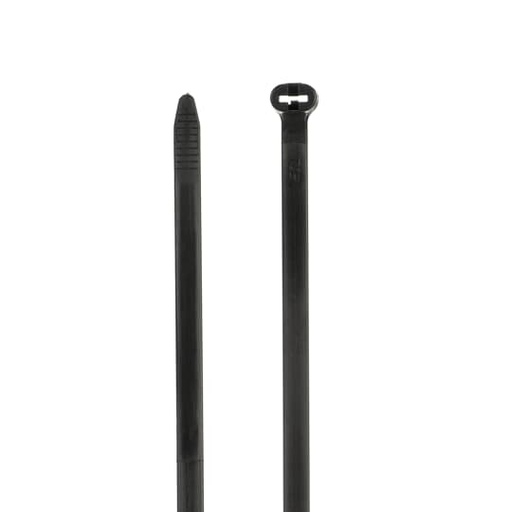

CABLE TIE 175LB 35IN UV BLACK NYLON
MFG #TY53510MX
$4.58Â /Â E
EACH
EACH
Product Description:
Cable Tie, Black Polyamide (Nylon 6.6) for Temperatures up to 105 Degrees Celsius (220 F), Weather and Ultraviolet Resistant for Indoor and Outdoor Applications, UL/EN/CSA62275 Type 2/21S Rated for AH-2 Plenum and as a Flexible Cable and Conduit Support, Length of 889mm (35.0 Inches), Width of 8.13mm (0.32 Inches), Thickness of 1.7mm (0.07 Inches), Tensile Strength Rating of 780 Newtons (175 pounds)
HESCO Part Number
TBTY53510MX
UPC
786210304816
Manufacturer Part Number
TY53510MX
Manufacturer
Thomas & Betts
CABLE TIE 175LB 35IN UV BLACK NYLON
MFG #TY53510MX
Product Description:
Cable Tie, Black Polyamide (Nylon 6.6) for Temperatures up to 105 Degrees Celsius (220 F), Weather and Ultraviolet Resistant for Indoor and Outdoor Applications, UL/EN/CSA62275 Type 2/21S Rated for AH-2 Plenum and as a Flexible Cable and Conduit Support, Length of 889mm (35.0 Inches), Width of 8.13mm (0.32 Inches), Thickness of 1.7mm (0.07 Inches), Tensile Strength Rating of 780 Newtons (175 pounds)
HESCO Part Number
TBTY53510MX
UPC
786210304816
Manufacturer Part Number
TY53510MX
Manufacturer
Thomas & Betts
$4.58Â /Â E
EACH
EACH
- Specifications
Additional Information
| Brand / Label | :Â Â | Ty-Rap |
| Bundle Diameter | :Â Â | Max 10 inMax 254 mm |
| Color | :Â Â | Black |
| Effective Date | :Â Â | 19950719 |
| Lock Type | :Â Â | Stainless Steel Barb |
| Material | :Â Â | Nylon/Polyamide 6.6 |
| Product Name | :Â Â | NYLON DUCT TIE |
| Product Type | :Â Â | High Performance |
| Special Functions | :Â Â | Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time. |
| Tensile Strength | :Â Â | 175 lb780 N |
| Thickness | :Â Â | 0.07 in1.7 mm |
Dimensions | ||
| Product Net Width | :Â Â | 0.32 in8.13 mm |
| Product Net Depth / Length | :Â Â | 35 in889 mm |
Classifications | ||
| WEEE Category | :Â Â | Product Not in WEEE Scope |
| IDEA Granular Category Code (IGCC) | :Â Â | 5034 >> Cable ties |
Technical UL/CSA | ||
| Flammability According to UL94 | :Â Â | V-2 |
Ordering | ||
| Country of Origin | :Â Â | Hungary (HU) |
| Selling Unit of Measure | :Â Â | each |
Additional Information
Brand / Label :Â Â Ty-Rap Bundle Diameter :Â Â Max 10 inMax 254 mm Color :Â Â Black Effective Date :Â Â 19950719 Lock Type :Â Â Stainless Steel Barb Material :Â Â Nylon/Polyamide 6.6 Product Name :Â Â NYLON DUCT TIE Product Type :Â Â High Performance Special Functions :Â Â Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time. Tensile Strength :Â Â 175 lb780 N Thickness :Â Â 0.07 in1.7 mm Dimensions
Product Net Width :Â Â 0.32 in8.13 mm Product Net Depth / Length :Â Â 35 in889 mm Classifications
WEEE Category :Â Â Product Not in WEEE Scope IDEA Granular Category Code (IGCC) :Â Â 5034 >> Cable ties Technical UL/CSA
Flammability According to UL94 :Â Â V-2 Ordering
Country of Origin :Â Â Hungary (HU) Selling Unit of Measure :Â Â each
