Weather-Resistant Polypropylene
MFG #TYP25MX
$0.40 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
Product Description:

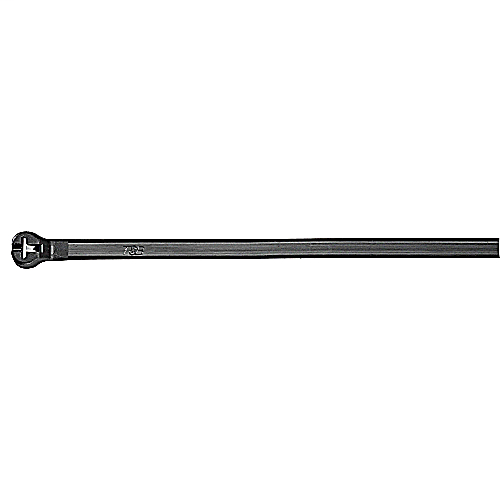

Cable Tie, Black Polypropylene for Temperatures up to 85 Degrees Celsius (185 F), Weather and Ultraviolet Resistant for Indoor and Outdoor Applications, UL/EN/CSA62275 Type 2/21 Rated for AH-2 Plenum, Length of 178.18mm (7.015 Inches), Width of 4.72mm (0.186 Inches), Thickness of 1.22mm (0.048 Inches), Tensile Strength Rating of 133 Newtons (30 Pounds)
HESCO Part Number
TBTYP25MX
UPC
78621082530
Manufacturer Part Number
TYP25MX
Manufacturer
Thomas & Betts
Weather-Resistant Polypropylene
MFG #TYP25MX
Product Description:
Cable Tie, Black Polypropylene for Temperatures up to 85 Degrees Celsius (185 F), Weather and Ultraviolet Resistant for Indoor and Outdoor Applications, UL/EN/CSA62275 Type 2/21 Rated for AH-2 Plenum, Length of 178.18mm (7.015 Inches), Width of 4.72mm (0.186 Inches), Thickness of 1.22mm (0.048 Inches), Tensile Strength Rating of 133 Newtons (30 Pounds)
HESCO Part Number
TBTYP25MX
UPC
78621082530
Manufacturer Part Number
TYP25MX
Manufacturer
Thomas & Betts
$0.40 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
- Features
- Specifications
- Resources
- Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time.
- Because there are no notches, Ty-Rap ties provide an infinite number of locking positions while fastening the tie at the precise bundle diameter needed.
- The No-Slip Tail provides easy grip during tensioning. Ty-Rap ties feature a unique friction surface designed to reduce slippage during installation.
- Smooth, notchless body reduces stress concentration points under tension, making the tie stronger and lower profile than notched body ties. Ribbed and Stippled body grips the bundle and prevents slippage. Rounded edges protect insulation, preventing sharp edges from damaging cables.
- Application Tools: ERG50, WT1-TB
Packaging
| Inner Quantity | : | 1000 |
| Outer Quantity | : | 10000 |
| Outer Dimensions (inches) | : | 21.1x13.5x9.7 |
| Weight Uom | : | 2.5 lbs. per 1000 |
North American Specifications (UNSPSC) | ||
| UNSPSC | : | 39121703 Cable ties |
| IGCC | : | 5037 Cable Ties & Wraps |
| Brand Name | : | Ty-Rap |
| Type | : | Weather-Resistant Polypropylene |
| Special Features | : | Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time. |
| Width | : | 0.186 in ; 4.72 mm |
| Length | : | 7.015 in ; 178.18 mm |
| Thickness | : | 0.048 Inch/1.22mm |
| Bundle Diameter | : | 0.138 Inch/3.5mm-1.77 Inches/45mm |
| Material | : | Polypropylene |
| Color | : | Black |
| Lock Mechanism | : | Stainless Steel Barb |
| Tensile Strength | : | 30 Pounds/135 Newtons |
European Specifications (ETIM) | ||
| ETIM | : | EC000046 Cable tie |
| Band width | : | 4.72mm |
| Length belt/tape/tie | : | 178.18mm |
| Tie thickness | : | 1.22mm |
| Max. bundle diameter | : | 45mm |
| Min. holding force | : | 133N |
| Operating temperature | : | -40-+85°C |
| Model | : | Internal toothing |
| Band closure | : | Steel nose |
| Material | : | Plastic |
| Material quality | : | Polypropylene |
| Surface protection | : | Untreated |
| UV-stable acc. ASTM D6779 | : | N |
| Halogen free | : | Y |
| Colour | : | Black |
| Transparent | : | N |
| Reflective (fluorescent) | : | N |
| Text strip | : | None |
| Solvable fastener | : | N |
| VG approval | : | N |
| MIL approval | : | N |
| UL approval | : | Y |
- Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time.
- Because there are no notches, Ty-Rap ties provide an infinite number of locking positions while fastening the tie at the precise bundle diameter needed.
- The No-Slip Tail provides easy grip during tensioning. Ty-Rap ties feature a unique friction surface designed to reduce slippage during installation.
- Smooth, notchless body reduces stress concentration points under tension, making the tie stronger and lower profile than notched body ties. Ribbed and Stippled body grips the bundle and prevents slippage. Rounded edges protect insulation, preventing sharp edges from damaging cables.
- Application Tools: ERG50, WT1-TB
Packaging
Inner Quantity : 1000 Outer Quantity : 10000 Outer Dimensions (inches) : 21.1x13.5x9.7 Weight Uom : 2.5 lbs. per 1000 North American Specifications (UNSPSC)
UNSPSC : 39121703 Cable ties IGCC : 5037 Cable Ties & Wraps Brand Name : Ty-Rap Type : Weather-Resistant Polypropylene Special Features : Low profile head is designed to prevent snags on uneven surfaces and easier to pull through bulkheads. Non-magnetic stainless steel locking device insures both maximum strength and the right tightness every time. Width : 0.186 in ; 4.72 mm Length : 7.015 in ; 178.18 mm Thickness : 0.048 Inch/1.22mm Bundle Diameter : 0.138 Inch/3.5mm-1.77 Inches/45mm Material : Polypropylene Color : Black Lock Mechanism : Stainless Steel Barb Tensile Strength : 30 Pounds/135 Newtons European Specifications (ETIM)
ETIM : EC000046 Cable tie Band width : 4.72mm Length belt/tape/tie : 178.18mm Tie thickness : 1.22mm Max. bundle diameter : 45mm Min. holding force : 133N Operating temperature : -40-+85°C Model : Internal toothing Band closure : Steel nose Material : Plastic Material quality : Polypropylene Surface protection : Untreated UV-stable acc. ASTM D6779 : N Halogen free : Y Colour : Black Transparent : N Reflective (fluorescent) : N Text strip : None Solvable fastener : N VG approval : N MIL approval : N UL approval : Y - Downloads
Technical Drawing / Spec SheetSpec SheetTechnical Drawing / Spec Sheet Canada
