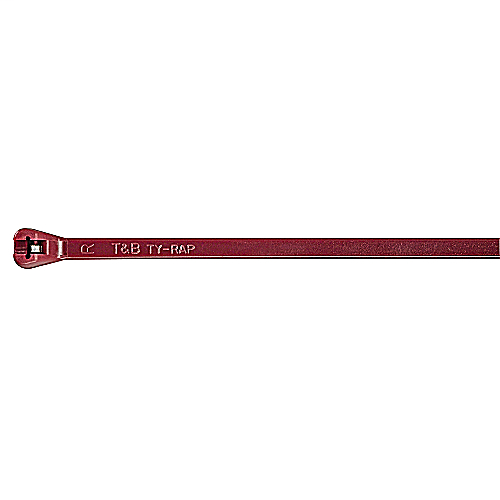

Low Smoke Cable Tie
MFG #TYV23M
$1.22 / E
EACH
EACH
Product Description:
Fluoropolymer Cable Tie, Maroon Fluoropolymer ECTFE, for up to 150 Degrees Celsius (302 F) for Applications Where Smoke Generation is a Concern, Length of 91.95mm (3.62 Inches), Width of 2.31mm (0.091 Inch), Thickness of 1.02mm (0.04 Inch), Tensile Strength Rating of 80 Newtons (18 Pounds), Bulk Pack
HESCO Part Number
TBTYV23M
UPC
78621091177
Manufacturer Part Number
TYV23M
Manufacturer
Thomas & Betts
Low Smoke Cable Tie
MFG #TYV23M
Product Description:
Fluoropolymer Cable Tie, Maroon Fluoropolymer ECTFE, for up to 150 Degrees Celsius (302 F) for Applications Where Smoke Generation is a Concern, Length of 91.95mm (3.62 Inches), Width of 2.31mm (0.091 Inch), Thickness of 1.02mm (0.04 Inch), Tensile Strength Rating of 80 Newtons (18 Pounds), Bulk Pack
HESCO Part Number
TBTYV23M
UPC
78621091177
Manufacturer Part Number
TYV23M
Manufacturer
Thomas & Betts
$1.22 / E
EACH
EACH
- Features
- Specifications
- Resources
- Application Tools: ERG50, WT1-TB
European Specifications (ETIM)
| ETIM | : | EC000046 Cable tie |
| Band width | : | 2.31mm |
| Length belt/tape/tie | : | 91.95mm |
| Tie thickness | : | 1.02mm |
| Max. bundle diameter | : | 15.875mm |
| Min. holding force | : | 80N |
| Operating temperature | : | 150-150°C |
| Model | : | Internal toothing |
| Band closure | : | Steel nose |
| Material | : | Plastic |
| Material quality | : | Other |
| Surface protection | : | Untreated |
| UV-stable acc. ASTM D6779 | : | N |
| Halogen free | : | N |
| Colour | : | Other |
| Transparent | : | N |
| Reflective (fluorescent) | : | N |
| Text strip | : | None |
| Solvable fastener | : | N |
| VG approval | : | N |
| MIL approval | : | N |
| UL approval | : | N |
Packaging | ||
| Inner Quantity | : | 1000 |
| Inner Dimensions (inches) | : | 10x10x.01 |
| Outer Quantity | : | 10000 |
| Outer Dimensions (inches) | : | 10x10x8.5 |
| Weight Uom | : | 0.09 lbs. per 100 |
North American Specifications (UNSPSC) | ||
| UNSPSC | : | 39121703 Cable ties |
| IGCC | : | 5037 Cable Ties & Wraps |
| Brand Name | : | Ty-Rap |
| Type | : | Low Smoke Cable Tie |
| Width | : | 0.091 in ; 2.31 mm |
| Length | : | 3.62 in ; 91.95 mm |
| Thickness | : | 0.04 Inch/1.02mm |
| Bundle Diameter | : | 0.625 Inch/15.88mm |
| Material | : | Fluoropolymer ECTFE |
| Color | : | Maroon |
| Lock Mechanism | : | Stainless Steel Barb |
| Tensile Strength | : | 18 Pounds/80 Newtons |
- Application Tools: ERG50, WT1-TB
European Specifications (ETIM)
ETIM : EC000046 Cable tie Band width : 2.31mm Length belt/tape/tie : 91.95mm Tie thickness : 1.02mm Max. bundle diameter : 15.875mm Min. holding force : 80N Operating temperature : 150-150°C Model : Internal toothing Band closure : Steel nose Material : Plastic Material quality : Other Surface protection : Untreated UV-stable acc. ASTM D6779 : N Halogen free : N Colour : Other Transparent : N Reflective (fluorescent) : N Text strip : None Solvable fastener : N VG approval : N MIL approval : N UL approval : N Packaging
Inner Quantity : 1000 Inner Dimensions (inches) : 10x10x.01 Outer Quantity : 10000 Outer Dimensions (inches) : 10x10x8.5 Weight Uom : 0.09 lbs. per 100 North American Specifications (UNSPSC)
UNSPSC : 39121703 Cable ties IGCC : 5037 Cable Ties & Wraps Brand Name : Ty-Rap Type : Low Smoke Cable Tie Width : 0.091 in ; 2.31 mm Length : 3.62 in ; 91.95 mm Thickness : 0.04 Inch/1.02mm Bundle Diameter : 0.625 Inch/15.88mm Material : Fluoropolymer ECTFE Color : Maroon Lock Mechanism : Stainless Steel Barb Tensile Strength : 18 Pounds/80 Newtons - Downloads
Technical Drawing / Data Sheet USSpec SheetTechnical Drawing / Data Sheet Canada
