AL HTYPE COMPCONN 4/0-3/0ASCR 8-10
MFG #WR502
$9.98 / E
EACH
EACH
Product Description:

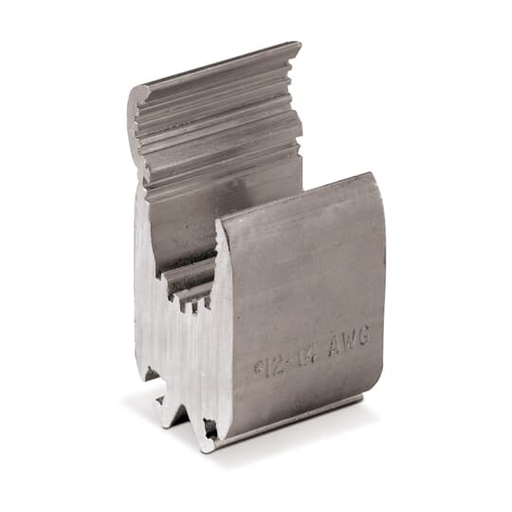

Aluminum Wide Range H-Type Compression Connector Main: 4/0 - 3/0 ACSR, 4/0 - 3/0 Str., Tap: 8 - 10 Str., 6 - 10 Sol., Groove C: 12 - 14 Str., 12 - 14 Sol. 1-1/2 inch
HESCO Part Number
BLBWR502
UPC
783786100378
Manufacturer Part Number
WR502
Manufacturer
Thomas & Betts
AL HTYPE COMPCONN 4/0-3/0ASCR 8-10
MFG #WR502
Product Description:
Aluminum Wide Range H-Type Compression Connector Main: 4/0 - 3/0 ACSR, 4/0 - 3/0 Str., Tap: 8 - 10 Str., 6 - 10 Sol., Groove C: 12 - 14 Str., 12 - 14 Sol. 1-1/2 inch
HESCO Part Number
BLBWR502
UPC
783786100378
Manufacturer Part Number
WR502
Manufacturer
Thomas & Betts
$9.98 / E
EACH
EACH
- Specifications
Additional Information
| Application | : | For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors. |
| Brand / Label | : | Blackburn |
| Connection Type | : | Compression |
| Effective Date | : | 19991027 |
| Insulation Material | : | None |
| Mounting Type | : | None |
| Number of Conductors | : | 3 |
| Product Name | : | BKB-OVERHEAD SPLICE & TAP CONN |
| Product Type | : | H-Type Compression Tap Connector |
| Size | : | Length 1-1/2 inch |
| Special Functions | : | Made of 1350 Aluminum Alloy for high strength and high conductivity. Standard Compression tools and dies install all sizes - no special tools needed. Field-proven ribbed design enables excellent connector/conductor contact without distorting the conductor's shape. Fold-in tabs provide tab interlock as tool closes. Prefilled with oxide inhibitor held captive in the rib/connection area. |
| Standards | : | RUS Accepted. Complies with ANSI C119.4 Specifications |
| Temperature Range | : | up to 90 °C |
Classifications | ||
| WEEE Category | : | Product Not in WEEE Scope |
| IDEA Granular Category Code (IGCC) | : | 4543 >> Wire connectors |
Ordering | ||
| Country of Origin | : | Mexico (MX) |
| Selling Unit of Measure | : | each |
Additional Information
Application : For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors. Brand / Label : Blackburn Connection Type : Compression Effective Date : 19991027 Insulation Material : None Mounting Type : None Number of Conductors : 3 Product Name : BKB-OVERHEAD SPLICE & TAP CONN Product Type : H-Type Compression Tap Connector Size : Length 1-1/2 inch Special Functions : Made of 1350 Aluminum Alloy for high strength and high conductivity. Standard Compression tools and dies install all sizes - no special tools needed. Field-proven ribbed design enables excellent connector/conductor contact without distorting the conductor's shape. Fold-in tabs provide tab interlock as tool closes. Prefilled with oxide inhibitor held captive in the rib/connection area. Standards : RUS Accepted. Complies with ANSI C119.4 Specifications Temperature Range : up to 90 °C Classifications
WEEE Category : Product Not in WEEE Scope IDEA Granular Category Code (IGCC) : 4543 >> Wire connectors Ordering
Country of Origin : Mexico (MX) Selling Unit of Measure : each
