COMP STIRRUP W/CONTAX 1/0-3ASCR 2
MFG #WRQ172
$35.80Â /Â E
EACH
EACH
Product Description:

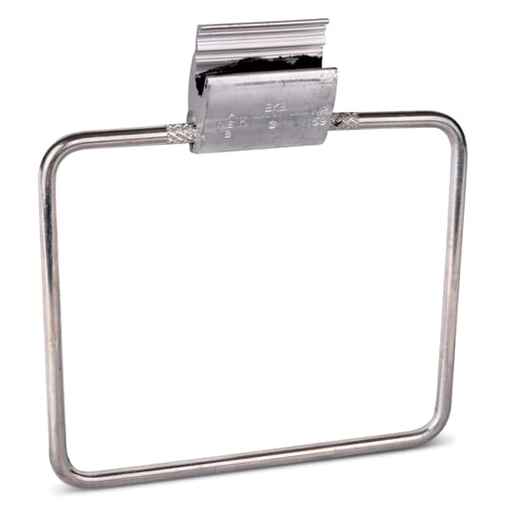

Aluminum Compression H-Tap Connector with Tin Plated Copper Stirrup, Contax Filled, Wire Range: 1/0-3 ASCR, 1/0 Stranded -1 Solid AWG, Stirrup #2 Solid Copper, square shaped, 1 H-Tap Connector on Stirrup. 4-1/2 inch x 3-3/4 inch.
HESCO Part Number
BLBWRQ172
UPC
783786051571
Manufacturer Part Number
WRQ172
Manufacturer
Thomas & Betts
COMP STIRRUP W/CONTAX 1/0-3ASCR 2
MFG #WRQ172
Product Description:
Aluminum Compression H-Tap Connector with Tin Plated Copper Stirrup, Contax Filled, Wire Range: 1/0-3 ASCR, 1/0 Stranded -1 Solid AWG, Stirrup #2 Solid Copper, square shaped, 1 H-Tap Connector on Stirrup. 4-1/2 inch x 3-3/4 inch.
HESCO Part Number
BLBWRQ172
UPC
783786051571
Manufacturer Part Number
WRQ172
Manufacturer
Thomas & Betts
$35.80Â /Â E
EACH
EACH
- Specifications
Additional Information
| Application | :Â Â | Protect Main Conductors from Arcing Damage. |
| Brand / Label | :Â Â | Blackburn |
| Connection Type | :Â Â | Compression |
| Effective Date | :Â Â | 19991027 |
| Insulation Material | :Â Â | None |
| Material | :Â Â | Aluminum with Tin Plated Copper Bails |
| Product Name | :Â Â | BKB-OVERHEAD SPLICE & TAP CONN |
| Product Type | :Â Â | Compression Connector with Stirrup |
| Size | :Â Â | 4-1/2 X 3-3/4 inches Tall |
| Special Functions | :Â Â | Guard Main Conductors Against Arcs - Perfect for when Hot Line Taps are Installed. Utilize Standard Wide Range Connectors and Plated Copper Bails for High Conductivity and Corrosion Resistance. |
| Wire Size | :Â Â | 1/0 to #3CSR A1/0 STR AWG |
Classifications | ||
| WEEE Category | :Â Â | Product Not in WEEE Scope |
| IDEA Granular Category Code (IGCC) | :Â Â | 4543 >> Wire connectors |
Ordering | ||
| Country of Origin | :Â Â | Mexico (MX) |
| Selling Unit of Measure | :Â Â | each |
Additional Information
Application :Â Â Protect Main Conductors from Arcing Damage. Brand / Label :Â Â Blackburn Connection Type :Â Â Compression Effective Date :Â Â 19991027 Insulation Material :Â Â None Material :Â Â Aluminum with Tin Plated Copper Bails Product Name :Â Â BKB-OVERHEAD SPLICE & TAP CONN Product Type :Â Â Compression Connector with Stirrup Size :Â Â 4-1/2 X 3-3/4 inches Tall Special Functions :Â Â Guard Main Conductors Against Arcs - Perfect for when Hot Line Taps are Installed. Utilize Standard Wide Range Connectors and Plated Copper Bails for High Conductivity and Corrosion Resistance. Wire Size :Â Â 1/0 to #3CSR A1/0 STR AWG Classifications
WEEE Category :Â Â Product Not in WEEE Scope IDEA Granular Category Code (IGCC) :Â Â 4543 >> Wire connectors Ordering
Country of Origin :Â Â Mexico (MX) Selling Unit of Measure :Â Â each
