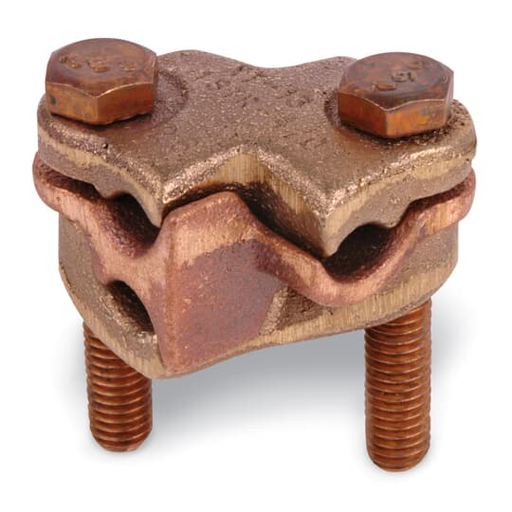

CU TEE-TAP CLAMP 500-1000 500-1000
MFG #XT34
$403.24Â /Â E
EACH
EACH
Product Description:
Copper Type XT - Clamp for Tee-Tap, Cross, Parallel and End-to-End for Wire Range Main: 500 - 1000 kcmil Tap: 500 - 1000 kcmil, Bolt Size 7/16. A multi-purpose connector, casting of copper alloy, bolts of silicon bronze. Dimensions 2-11/16 inch long x 3-1/8 inch high x 2-11/16 inch wide. Bolt Length 2-5/8 inches.
HESCO Part Number
BLBXT34
UPC
783786400362
Manufacturer Part Number
XT34
Manufacturer
Thomas & Betts
CU TEE-TAP CLAMP 500-1000 500-1000
MFG #XT34
Product Description:
Copper Type XT - Clamp for Tee-Tap, Cross, Parallel and End-to-End for Wire Range Main: 500 - 1000 kcmil Tap: 500 - 1000 kcmil, Bolt Size 7/16. A multi-purpose connector, casting of copper alloy, bolts of silicon bronze. Dimensions 2-11/16 inch long x 3-1/8 inch high x 2-11/16 inch wide. Bolt Length 2-5/8 inches.
HESCO Part Number
BLBXT34
UPC
783786400362
Manufacturer Part Number
XT34
Manufacturer
Thomas & Betts
$403.24Â /Â E
EACH
EACH
- Specifications
Additional Information
| Application | :Â Â | Multi-purpose Connector |
| Brand / Label | :Â Â | Blackburn |
| Connection Type | :Â Â | Mechanical |
| Effective Date | :Â Â | 19991101 |
| Enclosure Type | :Â Â | None |
| Insulation Material | :Â Â | Bare |
| Material | :Â Â | Casting of Copper Alloy, Bolts of Silicon Bronze |
| Number of Conductors | :Â Â | 2 |
| Number of Secondary Ports | :Â Â | 1 |
| Outside Diameter | :Â Â | 7/16 in |
| Product Name | :Â Â | BKB-OVERHEAD SPLICE & TAP CONN |
| Product Type | :Â Â | Mechanical Connector |
| Special Functions | :Â Â | Design allows for free wrench rotation which speeds installation. |
| Surface Finishing | :Â Â | Bare |
| Voltage Rating | :Â Â | 35 kV |
Classifications | ||
| WEEE Category | :Â Â | Product Not in WEEE Scope |
| IDEA Granular Category Code (IGCC) | :Â Â | 4541 >> Mechanical connectors |
Ordering | ||
| Country of Origin | :Â Â | India (IN) |
| Selling Unit of Measure | :Â Â | each |
Additional Information
Application :Â Â Multi-purpose Connector Brand / Label :Â Â Blackburn Connection Type :Â Â Mechanical Effective Date :Â Â 19991101 Enclosure Type :Â Â None Insulation Material :Â Â Bare Material :Â Â Casting of Copper Alloy, Bolts of Silicon Bronze Number of Conductors :Â Â 2 Number of Secondary Ports :Â Â 1 Outside Diameter :Â Â 7/16 in Product Name :Â Â BKB-OVERHEAD SPLICE & TAP CONN Product Type :Â Â Mechanical Connector Special Functions :Â Â Design allows for free wrench rotation which speeds installation. Surface Finishing :Â Â Bare Voltage Rating :Â Â 35 kV Classifications
WEEE Category :Â Â Product Not in WEEE Scope IDEA Granular Category Code (IGCC) :Â Â 4541 >> Mechanical connectors Ordering
Country of Origin :Â Â India (IN) Selling Unit of Measure :Â Â each
