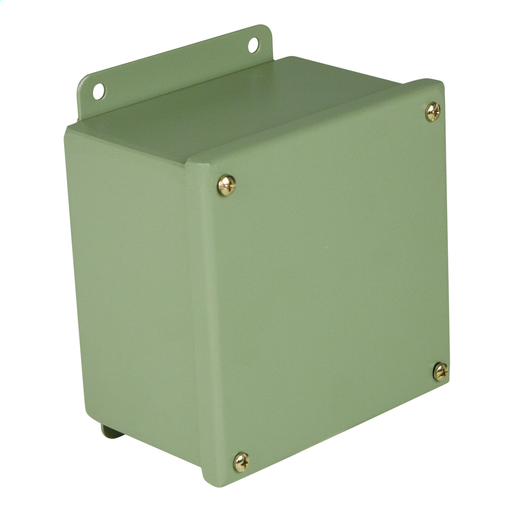

N12 JIC Screw-Cover 6X6X4 Carbon Steel - Gray
MFG #B060604SC
$138.40Â /Â E
EACH
EACH
Product Description:
N12 JIC Screw-Cover 6X6X4 Carbon Steel - Gray
HESCO Part Number
WIEB060604SC
UPC
786725330553
Manufacturer Part Number
B060604SC
Manufacturer
Wiegmann
N12 JIC Screw-Cover 6X6X4 Carbon Steel - Gray
MFG #B060604SC
Product Description:
N12 JIC Screw-Cover 6X6X4 Carbon Steel - Gray
HESCO Part Number
WIEB060604SC
UPC
786725330553
Manufacturer Part Number
B060604SC
Manufacturer
Wiegmann
$138.40Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Bodies and doors fabricated from 14 gauge steel. Continuously welded seams ground smooth, less knockouts of holes. Lids are sealed with closed cell oil resistant neoprene gasket. External mounting plates, top and bottom of enclosure. Weldnuts are provided to secure optional back panel. Captivated cover screws are provided which thread into sealed wells to prevent leakage through cover. Grounding provisions provided.
Specifications
| Buy American Compliant | :Â Â | Contact Manufacturer |
| Country of Origin | :Â Â | MX |
| Each - Width | :Â Â | 7.400 in |
| Application | :Â Â | Designed for use as instrument housings, electrical control enclosures, terminal wiring boxes, or electrical junction boxes. Provides protection from dirt, dust, oil, and water. |
| Color | :Â Â | Ansi-61 Gray Textured |
| Cover Type | :Â Â | Screw Cover |
| Cubic Capacity | :Â Â | 144 cu.in |
| Depth | :Â Â | 4 in |
| Height | :Â Â | 6 in |
| Mounting | :Â Â | External Mounting Plates |
| NEMA Rating | :Â Â | 12 |
| Standard | :Â Â | cULus |
| Type | :Â Â | Enclosure |
| Width | :Â Â | 6 in |
| Weight | :Â Â | 4.9 lb. |
| Material type | :Â Â | Carbon Steel |
| Mounting Type | :Â Â | External Mounting Plates |
| Nema Rating | :Â Â | 12 |
| ARRA Compliant | :Â Â | Contact Manufacturer |
| Class Code | :Â Â | P04 |
| Description - Invoice | :Â Â | JIC,CS,SCREW COVER,6X6X4 |
| Freight Class Code | :Â Â | 06316009 |
| Harmonization Code | :Â Â | 7326908688 |
| Image Actual Or Representative | :Â Â | R |
| Lead Time | :Â Â | 7 wk |
| MSDS Flag | :Â Â | No |
| Order Multiple | :Â Â | 1 EA |
| Returnable Indicator | :Â Â | Yes |
| Stock Indicator | :Â Â | S - Shelf Stock |
| Sub Class Code | :Â Â | P04P067 |
| UL Listed | :Â Â | Yes |
| Construction | :Â Â | Continuously Welded Seams |
| Material | :Â Â | Carbon Steel |
| Base Unit of Measure | :Â Â | EA |
| BOX SIZE | :Â Â | 4.750x8.600x7.400 (in) |
| Carton - Gross Weight per Pack | :Â Â | 4.900 lb. |
| Carton - Number of Sub Packs | :Â Â | 1 |
| Carton - Pack Description | :Â Â | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | :Â Â | 00786725330553 |
| Carton - Total Units | :Â Â | 1 EA |
| Pallet Height | :Â Â | 47.250 in |
| Pallet Length | :Â Â | 40.000 in |
| Pallet Weight | :Â Â | 860.625 lb. |
| Pallet Width | :Â Â | 48.000 in |
Certifications | ||
| Certified Listed | :Â Â | cULus |
| EU RoHS Indicator | :Â Â | Yes |
| Listings | :Â Â | UL, CSA |
- Bodies and doors fabricated from 14 gauge steel. Continuously welded seams ground smooth, less knockouts of holes. Lids are sealed with closed cell oil resistant neoprene gasket. External mounting plates, top and bottom of enclosure. Weldnuts are provided to secure optional back panel. Captivated cover screws are provided which thread into sealed wells to prevent leakage through cover. Grounding provisions provided.
