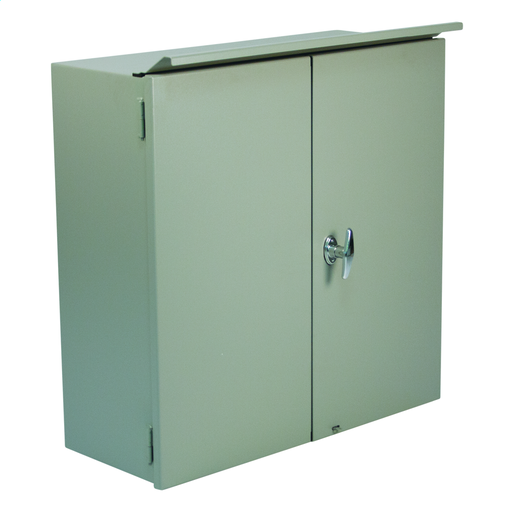

N3R CT Double Door Hinged-Cover 44X30X12 Carbon Steel - Gray
MFG #CTDD443012
$1,127.61Â /Â E
EACH
EACH
Product Description:
N3R CT Double Door Hinged-Cover 44X30X12 Carbon Steel - Gray
HESCO Part Number
WIECTDD443012
UPC
786725854011
Manufacturer Part Number
CTDD443012
Manufacturer
Wiegmann
N3R CT Double Door Hinged-Cover 44X30X12 Carbon Steel - Gray
MFG #CTDD443012
Product Description:
N3R CT Double Door Hinged-Cover 44X30X12 Carbon Steel - Gray
HESCO Part Number
WIECTDD443012
UPC
786725854011
Manufacturer Part Number
CTDD443012
Manufacturer
Wiegmann
$1,127.61Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Manufactured from 12 gauge carbon steel
- Fully seam welded and ground smooth, with weep hole
- Drip shield
- Lift off hinges, gasketed doors
- Supplied with non-locking "T" handle
- Meter seal provisions
- Mounting holes in back
- Supplied with studs in back of enclosure to support optional wood sub panel
Specifications
| Buy American Compliant | :Â Â | Contact Manufacturer |
| Country of Origin | :Â Â | US |
| Each - Width | :Â Â | 44.000 in |
| Number of Doors (Fixed) | :Â Â | 2 |
| Application | :Â Â | Enclosures are designed as a housing for current and voltage transformers, recorders, meters, junction, service box, relay, and/or for terminal instrumentation. |
| Color | :Â Â | Ansi-61 Gray Smooth |
| Cubic Capacity | :Â Â | 15840 cu.in |
| Depth | :Â Â | 12 in |
| Height | :Â Â | 30 in |
| Mounting | :Â Â | Mounting Holes |
| NEMA Rating | :Â Â | 3R |
| Standard | :Â Â | cULus |
| Type | :Â Â | Enclosure |
| Width | :Â Â | 44 in |
| Weight | :Â Â | 161 lb. |
| Mounting Type | :Â Â | Mounting Holes |
| Nema Rating | :Â Â | 3R |
| ARRA Compliant | :Â Â | Contact Manufacturer |
| Class Code | :Â Â | P01 |
| Description - Invoice | :Â Â | CT,DD,CS,44X30X12 |
| Freight Class Code | :Â Â | 06316009 |
| Harmonization Code | :Â Â | 7326908688 |
| Image Actual Or Representative | :Â Â | R |
| Lead Time | :Â Â | 21 wk |
| MSDS Flag | :Â Â | No |
| Order Multiple | :Â Â | 1 EA |
| Returnable Indicator | :Â Â | Yes |
| Stock Indicator | :Â Â | S - Shelf Stock |
| Sub Class Code | :Â Â | P01P001 |
| UL Listed | :Â Â | Yes |
| Material | :Â Â | Carbon Steel |
| Base Unit of Measure | :Â Â | EA |
| BOX SIZE | :Â Â | 30.000x12.000x44.000 (in) |
| Carton - Gross Weight per Pack | :Â Â | 161.000 lb. |
| Carton - Number of Sub Packs | :Â Â | 1 |
| Carton - Pack Description | :Â Â | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | :Â Â | 00786725854011 |
| Carton - Total Units | :Â Â | 1 |
Certifications | ||
| Certified Listed | :Â Â | cULus |
| EU RoHS Indicator | :Â Â | No |
| Listings | :Â Â | UL, CSA |
- Manufactured from 12 gauge carbon steel
- Fully seam welded and ground smooth, with weep hole
- Drip shield
- Lift off hinges, gasketed doors
- Supplied with non-locking "T" handle
- Meter seal provisions
- Mounting holes in back
- Supplied with studs in back of enclosure to support optional wood sub panel
Specifications
Buy American Compliant :Â Â Contact Manufacturer Country of Origin :Â Â US Each - Width :Â Â 44.000 in Number of Doors (Fixed) :Â Â 2 Application :Â Â Enclosures are designed as a housing for current and voltage transformers, recorders, meters, junction, service box, relay, and/or for terminal instrumentation. Color :Â Â Ansi-61 Gray Smooth Cubic Capacity :Â Â 15840 cu.in Depth :Â Â 12 in Height :Â Â 30 in Mounting :Â Â Mounting Holes NEMA Rating :Â Â 3R Standard :Â Â cULus Type :Â Â Enclosure Width :Â Â 44 in Weight :Â Â 161 lb. Mounting Type :Â Â Mounting Holes Nema Rating :Â Â 3R ARRA Compliant :Â Â Contact Manufacturer Class Code :Â Â P01 Description - Invoice :Â Â CT,DD,CS,44X30X12 Freight Class Code :Â Â 06316009 Harmonization Code :Â Â 7326908688 Image Actual Or Representative :Â Â R Lead Time :Â Â 21 wk MSDS Flag :Â Â No Order Multiple :Â Â 1 EA Returnable Indicator :Â Â Yes Stock Indicator :Â Â S - Shelf Stock Sub Class Code :Â Â P01P001 UL Listed :Â Â Yes Material :Â Â Carbon Steel Base Unit of Measure :Â Â EA BOX SIZE :Â Â 30.000x12.000x44.000 (in) Carton - Gross Weight per Pack :Â Â 161.000 lb. Carton - Number of Sub Packs :Â Â 1 Carton - Pack Description :Â Â Carton Carton - SCC-14 Next Lower Level Sub Pack :Â Â 00786725854011 Carton - Total Units :Â Â 1 Certifications
Certified Listed :Â Â cULus EU RoHS Indicator :Â Â No Listings :Â Â UL, CSA - Downloads
Spec SheetMSDS
STEP 3D Model Asset ReferenceCatalog Full Asset ReferenceCustomer Notices Asset ReferenceSales Drawing Asset ReferenceTerms and Conditions Asset ReferenceHWDCTDD443012-S.dxf
