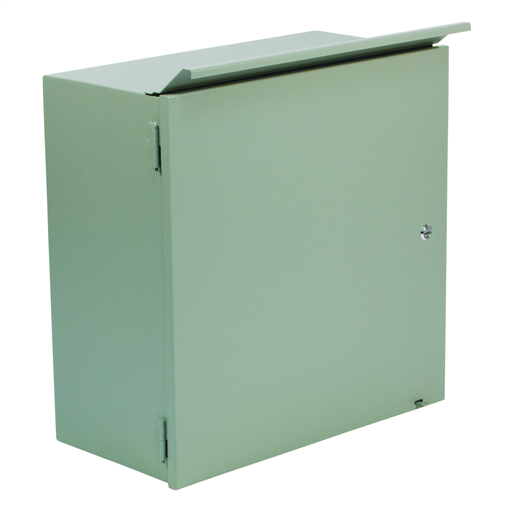

N3R CT Single Door Hinged-Cover 20X20X10 Carbon Steel - Gray
MFG #CTSD202010
$718.50Â /Â E
EACH
EACH
Product Description:
N3R CT Single Door Hinged-Cover 20X20X10 Carbon Steel - Gray
HESCO Part Number
WIECTSD202010
UPC
786725854103
Manufacturer Part Number
CTSD202010
Manufacturer
Wiegmann
N3R CT Single Door Hinged-Cover 20X20X10 Carbon Steel - Gray
MFG #CTSD202010
Product Description:
N3R CT Single Door Hinged-Cover 20X20X10 Carbon Steel - Gray
HESCO Part Number
WIECTSD202010
UPC
786725854103
Manufacturer Part Number
CTSD202010
Manufacturer
Wiegmann
$718.50Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Manufactured from 14 gauge carbon steel
- Fully seam welded and ground smooth, with weep hole
- Drip shield
- Lift off hinges, gasketed doors
- Supplied with non-locking 1/4 turn latch
- Meter seal provisions
- Mounting holes in back
- Supplied with studs in back of enclosure to support optional wood sub panel
Specifications
| Buy American Compliant | :Â Â | Contact Manufacturer |
| Country of Origin | :Â Â | US |
| Each - Width | :Â Â | 20.000 in |
| Number of Doors (Fixed) | :Â Â | 1 |
| Application | :Â Â | Designed as a housing for current and voltage transformers, recorders, meters, junction box, service box, rely and/or for terminal instrumentation. |
| Color | :Â Â | Ansi-61 Gray Smooth |
| Cubic Capacity | :Â Â | 4000 cu.in |
| Depth | :Â Â | 10 in |
| Height | :Â Â | 20 in |
| Mounting | :Â Â | Mounting Holes |
| NEMA Rating | :Â Â | 3R |
| Standard | :Â Â | cULus |
| Type | :Â Â | Enclosure |
| Width | :Â Â | 20 in |
| Weight | :Â Â | 45 lb. |
| Mounting Type | :Â Â | Mounting Holes |
| Nema Rating | :Â Â | 3R |
| ARRA Compliant | :Â Â | Contact Manufacturer |
| Class Code | :Â Â | P01 |
| Description - Invoice | :Â Â | CT,SD,CS,20X20X10 |
| Freight Class Code | :Â Â | 06316009 |
| Harmonization Code | :Â Â | 7326908688 |
| Image Actual Or Representative | :Â Â | R |
| Lead Time | :Â Â | 21 wk |
| MSDS Flag | :Â Â | No |
| Order Multiple | :Â Â | 1 EA |
| Returnable Indicator | :Â Â | Yes |
| Stock Indicator | :Â Â | S - Shelf Stock |
| Sub Class Code | :Â Â | P01P001 |
| UL Listed | :Â Â | Yes |
| Material | :Â Â | Carbon Steel |
| Base Unit of Measure | :Â Â | EA |
| BOX SIZE | :Â Â | 20.000x10.000x20.000 (in) |
| Carton - Gross Weight per Pack | :Â Â | 45.000 lb. |
| Carton - Number of Sub Packs | :Â Â | 1 |
| Carton - Pack Description | :Â Â | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | :Â Â | 00786725854103 |
| Carton - Total Units | :Â Â | 1 |
Certifications | ||
| Certified Listed | :Â Â | cULus |
| EU RoHS Indicator | :Â Â | No |
| Listings | :Â Â | UL, CSA |
- Manufactured from 14 gauge carbon steel
- Fully seam welded and ground smooth, with weep hole
- Drip shield
- Lift off hinges, gasketed doors
- Supplied with non-locking 1/4 turn latch
- Meter seal provisions
- Mounting holes in back
- Supplied with studs in back of enclosure to support optional wood sub panel
Specifications
Buy American Compliant :Â Â Contact Manufacturer Country of Origin :Â Â US Each - Width :Â Â 20.000 in Number of Doors (Fixed) :Â Â 1 Application :Â Â Designed as a housing for current and voltage transformers, recorders, meters, junction box, service box, rely and/or for terminal instrumentation. Color :Â Â Ansi-61 Gray Smooth Cubic Capacity :Â Â 4000 cu.in Depth :Â Â 10 in Height :Â Â 20 in Mounting :Â Â Mounting Holes NEMA Rating :Â Â 3R Standard :Â Â cULus Type :Â Â Enclosure Width :Â Â 20 in Weight :Â Â 45 lb. Mounting Type :Â Â Mounting Holes Nema Rating :Â Â 3R ARRA Compliant :Â Â Contact Manufacturer Class Code :Â Â P01 Description - Invoice :Â Â CT,SD,CS,20X20X10 Freight Class Code :Â Â 06316009 Harmonization Code :Â Â 7326908688 Image Actual Or Representative :Â Â R Lead Time :Â Â 21 wk MSDS Flag :Â Â No Order Multiple :Â Â 1 EA Returnable Indicator :Â Â Yes Stock Indicator :Â Â S - Shelf Stock Sub Class Code :Â Â P01P001 UL Listed :Â Â Yes Material :Â Â Carbon Steel Base Unit of Measure :Â Â EA BOX SIZE :Â Â 20.000x10.000x20.000 (in) Carton - Gross Weight per Pack :Â Â 45.000 lb. Carton - Number of Sub Packs :Â Â 1 Carton - Pack Description :Â Â Carton Carton - SCC-14 Next Lower Level Sub Pack :Â Â 00786725854103 Carton - Total Units :Â Â 1 Certifications
Certified Listed :Â Â cULus EU RoHS Indicator :Â Â No Listings :Â Â UL, CSA - Downloads
Spec SheetMSDSCatalog Full Asset ReferenceCustomer Notices Asset ReferenceSales Drawing Asset ReferenceTerms and Conditions Asset Reference
HWDCTSD202010-S.dxfCTSD202010-MOD.dxfMOD Center Drawings Instructions
