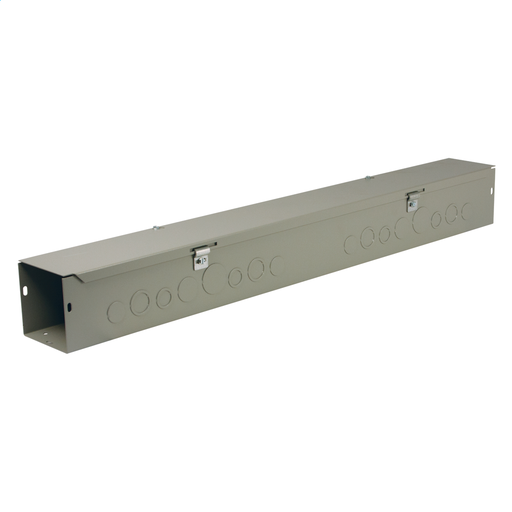

N1 Hinged Wireway 4X4X48 Carbon Steel - Gray
MFG #HS444
$112.84Â /Â E
EACH
EACH
Product Description:
N1 Hinged Wireway 4X4X48 Carbon Steel - Gray
HESCO Part Number
WIEHS444
UPC
786725609505
Manufacturer Part Number
HS444
Manufacturer
Wiegmann
N1 Hinged Wireway 4X4X48 Carbon Steel - Gray
MFG #HS444
Product Description:
N1 Hinged Wireway 4X4X48 Carbon Steel - Gray
HESCO Part Number
WIEHS444
UPC
786725609505
Manufacturer Part Number
HS444
Manufacturer
Wiegmann
$112.84Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Bodies and covers are fabricated from 16 gauge steel. HS Series combination hinge/screw cover design offers easy access to open top for "lay-in" of wireway. Screws do not need to be removed to open top. Straight sections with knockouts are provided on side walls on wireways.
Specifications
| Buy American Compliant | :Â Â | Contact Manufacturer |
| Country of Origin | :Â Â | US |
| Each - Width | :Â Â | 4.620 in |
| Height | :Â Â | 4 in |
| Application | :Â Â | Designed to protect electrical wiring in applications where dirt, dust, oil, and water are not serious problems. All sections are open on one side so wires and cable can be laid in along an entire wireway run. |
| Color | :Â Â | Ansi-61 Gray Smooth |
| Depth | :Â Â | 48 in |
| Standard | :Â Â | cULus |
| Type | :Â Â | Wireway |
| Width | :Â Â | 4 in |
| Weight | :Â Â | 15 lb. |
| Nema Rating | :Â Â | 1 |
| ARRA Compliant | :Â Â | Contact Manufacturer |
| Class Code | :Â Â | P01 |
| Description - Invoice | :Â Â | WW,HC,SC,W/KO,CS,4"X4"X48" |
| Freight Class Code | :Â Â | 12007000 |
| Harmonization Code | :Â Â | 7326908688 |
| Image Actual Or Representative | :Â Â | R |
| Lead Time | :Â Â | 21 wk |
| MSDS Flag | :Â Â | No |
| Order Multiple | :Â Â | 1 EA |
| Returnable Indicator | :Â Â | No |
| Stock Indicator | :Â Â | S - Shelf Stock |
| Sub Class Code | :Â Â | P01P014 |
| UL Listed | :Â Â | Yes |
| Material | :Â Â | Carbon Steel |
| Base Unit of Measure | :Â Â | EA |
| BOX SIZE | :Â Â | 4.000x48.000x4.000 (in) |
| Carton - Gross Weight per Pack | :Â Â | 15.000 lb. |
| Carton - Number of Sub Packs | :Â Â | 4 |
| Carton - Pack Description | :Â Â | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | :Â Â | 00786725609505 |
| Carton - Total Units | :Â Â | 4 EA |
Certifications | ||
| Certified Listed | :Â Â | cULus |
| EU RoHS Indicator | :Â Â | Yes |
| Listings | :Â Â | UL, CSA |
- Bodies and covers are fabricated from 16 gauge steel. HS Series combination hinge/screw cover design offers easy access to open top for "lay-in" of wireway. Screws do not need to be removed to open top. Straight sections with knockouts are provided on side walls on wireways.
Specifications
Buy American Compliant :Â Â Contact Manufacturer Country of Origin :Â Â US Each - Width :Â Â 4.620 in Height :Â Â 4 in Application :Â Â Designed to protect electrical wiring in applications where dirt, dust, oil, and water are not serious problems. All sections are open on one side so wires and cable can be laid in along an entire wireway run. Color :Â Â Ansi-61 Gray Smooth Depth :Â Â 48 in Standard :Â Â cULus Type :Â Â Wireway Width :Â Â 4 in Weight :Â Â 15 lb. Nema Rating :Â Â 1 ARRA Compliant :Â Â Contact Manufacturer Class Code :Â Â P01 Description - Invoice :Â Â WW,HC,SC,W/KO,CS,4"X4"X48" Freight Class Code :Â Â 12007000 Harmonization Code :Â Â 7326908688 Image Actual Or Representative :Â Â R Lead Time :Â Â 21 wk MSDS Flag :Â Â No Order Multiple :Â Â 1 EA Returnable Indicator :Â Â No Stock Indicator :Â Â S - Shelf Stock Sub Class Code :Â Â P01P014 UL Listed :Â Â Yes Material :Â Â Carbon Steel Base Unit of Measure :Â Â EA BOX SIZE :Â Â 4.000x48.000x4.000 (in) Carton - Gross Weight per Pack :Â Â 15.000 lb. Carton - Number of Sub Packs :Â Â 4 Carton - Pack Description :Â Â Carton Carton - SCC-14 Next Lower Level Sub Pack :Â Â 00786725609505 Carton - Total Units :Â Â 4 EA Certifications
Certified Listed :Â Â cULus EU RoHS Indicator :Â Â Yes Listings :Â Â UL, CSA - Downloads
Spec SheetMSDS
STEP 3D Model Asset ReferenceCatalog Full Asset ReferenceCustomer Notices Asset ReferenceSales Drawing Asset ReferenceTerms and Conditions Asset ReferenceHWDHS444-S.dxf
