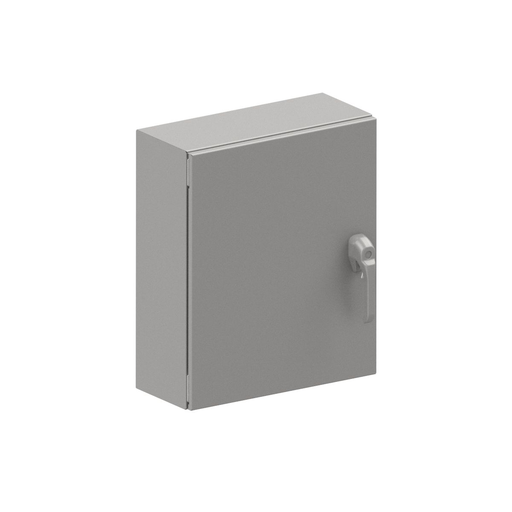

N412 Single Door Wall-Mount Ultimate 1-Point Handle 16X16X6 304 Stainless Steel
MFG #N412161606SS1PTC
$1,685.74Â /Â E
EACH
EACH
Product Description:
N412 Single Door Wall-Mount Ultimate 1-Point Handle 16X16X6 304 Stainless Steel
HESCO Part Number
WIEN412161606SS1PTC
UPC
786725873517
Manufacturer Part Number
N412161606SS1PTC
Manufacturer
Wiegmann
N412 Single Door Wall-Mount Ultimate 1-Point Handle 16X16X6 304 Stainless Steel
MFG #N412161606SS1PTC
Product Description:
N412 Single Door Wall-Mount Ultimate 1-Point Handle 16X16X6 304 Stainless Steel
HESCO Part Number
WIEN412161606SS1PTC
UPC
786725873517
Manufacturer Part Number
N412161606SS1PTC
Manufacturer
Wiegmann
$1,685.74Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- 1-Point Handle 16X16X6 304 Stainless Steel
Specifications
| Actual Depth | :Â Â | 7.75 in |
| Actual Width | :Â Â | 16.06 in |
| Buy American Compliant | :Â Â | Contact Manufacturer |
| Country of Origin | :Â Â | US |
| Each - Width | :Â Â | 16.000 in |
| Industry Standard(s) | :Â Â | cULus;IEC 60529 |
| Number of Doors (Fixed) | :Â Â | 1 |
| Application | :Â Â | Hubbell Wiegmann N412SS1PTC ULTIMATE Stainless Steel Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are |
| Cable Entry | :Â Â | NO |
| Color | :Â Â | Brushes Stainless Steel |
| Cover Type | :Â Â | Door |
| Cubic Capacity | :Â Â | 1536 cu.in |
| Depth | :Â Â | 6 in |
| Finish | :Â Â | Smooth Grained Stainless |
| Height | :Â Â | 16 in |
| Mounting | :Â Â | Mounting Holes |
| NEMA Rating | :Â Â | 1,3R,12,13,4,4X |
| Standard | :Â Â | cULus;IEC 60529 |
| Sub Brand | :Â Â | Ultimate Series |
| Type | :Â Â | Enclosure |
| Width | :Â Â | 16 in |
| Weight | :Â Â | 26 lb. |
| Finish Type | :Â Â | Smooth Grained Stainless |
| Knockouts | :Â Â | No |
| Mounting Type | :Â Â | Mounting Holes |
| Nema Rating | :Â Â | 1,3R,12,13,4,4X |
| Number of Holes | :Â Â | 4 |
| ARRA Compliant | :Â Â | Contact Manufacturer |
| Class Code | :Â Â | P03 |
| Description - Invoice | :Â Â | N412,ULTIMATE,SD,SS,16X16X6,1PT HANDLE |
| Freight Class Code | :Â Â | 06316009 |
| Harmonization Code | :Â Â | 7326908688 |
| Image Actual Or Representative | :Â Â | R |
| Lead Time | :Â Â | 21 wk |
| MSDS Flag | :Â Â | No |
| Order Multiple | :Â Â | 1 EA |
| Returnable Indicator | :Â Â | Yes |
| Stock Indicator | :Â Â | S - Shelf Stock |
| Sub Class Code | :Â Â | P03P057 |
| Latches Type | :Â Â | 1-Point |
| UL Listed | :Â Â | Yes |
| Material | :Â Â | Stainless Steel |
| Base Unit of Measure | :Â Â | EA |
| BOX SIZE | :Â Â | 7.750x22.500x16.060 (in) |
| Carton - SCC-14 Next Lower Level Sub Pack | :Â Â | 00786725873517 |
Certifications | ||
| Certified Listed | :Â Â | cULus;IEC |
| EU RoHS Indicator | :Â Â | No |
| Listings | :Â Â | UL, CSA |
- 1-Point Handle 16X16X6 304 Stainless Steel
Specifications
Actual Depth :Â Â 7.75 in Actual Width :Â Â 16.06 in Buy American Compliant :Â Â Contact Manufacturer Country of Origin :Â Â US Each - Width :Â Â 16.000 in Industry Standard(s) :Â Â cULus;IEC 60529 Number of Doors (Fixed) :Â Â 1 Application :Â Â Hubbell Wiegmann N412SS1PTC ULTIMATE Stainless Steel Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are Cable Entry :Â Â NO Color :Â Â Brushes Stainless Steel Cover Type :Â Â Door Cubic Capacity :Â Â 1536 cu.in Depth :Â Â 6 in Finish :Â Â Smooth Grained Stainless Height :Â Â 16 in Mounting :Â Â Mounting Holes NEMA Rating :Â Â 1,3R,12,13,4,4X Standard :Â Â cULus;IEC 60529 Sub Brand :Â Â Ultimate Series Type :Â Â Enclosure Width :Â Â 16 in Weight :Â Â 26 lb. Finish Type :Â Â Smooth Grained Stainless Knockouts :Â Â No Mounting Type :Â Â Mounting Holes Nema Rating :Â Â 1,3R,12,13,4,4X Number of Holes :Â Â 4 ARRA Compliant :Â Â Contact Manufacturer Class Code :Â Â P03 Description - Invoice :Â Â N412,ULTIMATE,SD,SS,16X16X6,1PT HANDLE Freight Class Code :Â Â 06316009 Harmonization Code :Â Â 7326908688 Image Actual Or Representative :Â Â R Lead Time :Â Â 21 wk MSDS Flag :Â Â No Order Multiple :Â Â 1 EA Returnable Indicator :Â Â Yes Stock Indicator :Â Â S - Shelf Stock Sub Class Code :Â Â P03P057 Latches Type :Â Â 1-Point UL Listed :Â Â Yes Material :Â Â Stainless Steel Base Unit of Measure :Â Â EA BOX SIZE :Â Â 7.750x22.500x16.060 (in) Carton - SCC-14 Next Lower Level Sub Pack :Â Â 00786725873517 Certifications
Certified Listed :Â Â cULus;IEC EU RoHS Indicator :Â Â No Listings :Â Â UL, CSA - Downloads
Spec SheetMSDS
STEP 3D Model Asset ReferenceBrochure Asset ReferenceCatalog Full Asset ReferenceCustomer Notices Asset ReferenceSales Drawing Asset ReferenceTerms and Conditions Asset ReferenceHWDN412161606SS1PTC-S.dxfN412161606SS1PTC-MOD.dxfMOD Center Drawings Instructions
