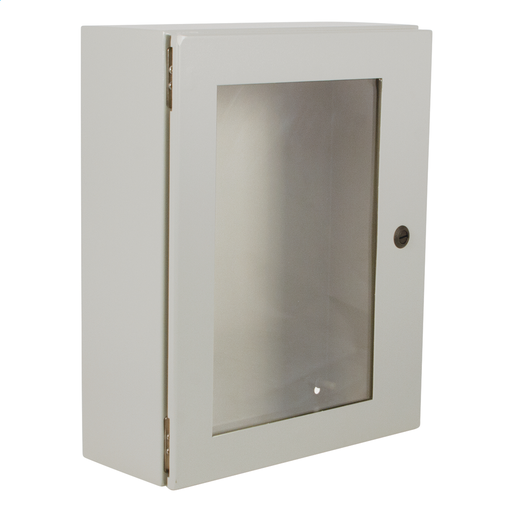

N412 Single Door Wall-Mount Ultimate with Window 20X20X8 Carbon Steel - Light Gray
MFG #N412202008WCLG
$883.07Â /Â E
EACH
EACH
Product Description:
N412 Single Door Wall-Mount Ultimate with Window 20X20X8 Carbon Steel - Light Gray
HESCO Part Number
WIEN412202008WCLG
UPC
786725868759
Manufacturer Part Number
N412202008WCLG
Manufacturer
Wiegmann
N412 Single Door Wall-Mount Ultimate with Window 20X20X8 Carbon Steel - Light Gray
MFG #N412202008WCLG
Product Description:
N412 Single Door Wall-Mount Ultimate with Window 20X20X8 Carbon Steel - Light Gray
HESCO Part Number
WIEN412202008WCLG
UPC
786725868759
Manufacturer Part Number
N412202008WCLG
Manufacturer
Wiegmann
$883.07Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Hubbell Wiegmann N12C ULTIMATE Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments
- For use in installations where dirt, dust, oil, water or other contaminants are present
- Streamlined styling, flush latching and attrative durable finish complement any high tech electronic equipment.
Specifications
| Actual Depth | :Â Â | 9.75 in |
| Actual Height | :Â Â | 22.5 in |
| Actual Width | :Â Â | 20.06 in |
| Buy American Compliant | :Â Â | Contact Manufacturer |
| Country of Origin | :Â Â | US |
| Each - Width | :Â Â | 21.000 in |
| Industry Standard(s) | :Â Â | cULus;IEC 60529 |
| Number of Doors (Fixed) | :Â Â | 1 |
| Application | :Â Â | Hubbell Wiegmann N412WC ULTIMATE Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are present. Streamlined |
| Cable Entry | :Â Â | NO |
| Color | :Â Â | RAL 7035 Light-Gray, Textured |
| Cubic Capacity | :Â Â | 3200 cu.in |
| Depth | :Â Â | 8 in |
| Finish | :Â Â | Textured Polyester Paint |
| Height | :Â Â | 20 in |
| Mounting | :Â Â | Mounting Holes |
| NEMA Rating | :Â Â | 1,3R, 12, 13, 4 |
| Standard | :Â Â | cULus;IEC 60529 |
| Sub Brand | :Â Â | Ultimate Series |
| Type | :Â Â | Enclosure |
| Width | :Â Â | 20 in |
| Weight | :Â Â | 37 lb. |
| Finish Type | :Â Â | Textured Polyester Paint |
| Knockouts | :Â Â | No |
| Mounting Type | :Â Â | Mounting Holes |
| Nema Rating | :Â Â | 1,3R, 12, 13, 4 |
| Number of Holes | :Â Â | 4 |
| ARRA Compliant | :Â Â | Contact Manufacturer |
| Class Code | :Â Â | P02 |
| Description - Invoice | :Â Â | N412,SD,WINDOW,20X20X8,ULT. LIGHT GRAY |
| Freight Class Code | :Â Â | 06316009 |
| Harmonization Code | :Â Â | 7326908688 |
| Image Actual Or Representative | :Â Â | R |
| Lead Time | :Â Â | 21 wk |
| MSDS Flag | :Â Â | No |
| Order Multiple | :Â Â | 1 EA |
| Returnable Indicator | :Â Â | Yes |
| Stock Indicator | :Â Â | S - Shelf Stock |
| Sub Class Code | :Â Â | P02P038 |
| Latches Type | :Â Â | 1/4 Turn |
| UL Listed | :Â Â | Yes |
| Material | :Â Â | Carbon Steel |
| Base Unit of Measure | :Â Â | EA |
| BOX SIZE | :Â Â | 9.750x22.500x20.060 (in) |
| Carton - SCC-14 Next Lower Level Sub Pack | :Â Â | 00786725868759 |
Certifications | ||
| Certified Listed | :Â Â | cULus;IEC |
| EU RoHS Indicator | :Â Â | No |
| Listings | :Â Â | UL, CSA |
- Hubbell Wiegmann N12C ULTIMATE Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments
- For use in installations where dirt, dust, oil, water or other contaminants are present
- Streamlined styling, flush latching and attrative durable finish complement any high tech electronic equipment.
Specifications
Actual Depth :Â Â 9.75 in Actual Height :Â Â 22.5 in Actual Width :Â Â 20.06 in Buy American Compliant :Â Â Contact Manufacturer Country of Origin :Â Â US Each - Width :Â Â 21.000 in Industry Standard(s) :Â Â cULus;IEC 60529 Number of Doors (Fixed) :Â Â 1 Application :Â Â Hubbell Wiegmann N412WC ULTIMATE Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are present. Streamlined Cable Entry :Â Â NO Color :Â Â RAL 7035 Light-Gray, Textured Cubic Capacity :Â Â 3200 cu.in Depth :Â Â 8 in Finish :Â Â Textured Polyester Paint Height :Â Â 20 in Mounting :Â Â Mounting Holes NEMA Rating :Â Â 1,3R, 12, 13, 4 Standard :Â Â cULus;IEC 60529 Sub Brand :Â Â Ultimate Series Type :Â Â Enclosure Width :Â Â 20 in Weight :Â Â 37 lb. Finish Type :Â Â Textured Polyester Paint Knockouts :Â Â No Mounting Type :Â Â Mounting Holes Nema Rating :Â Â 1,3R, 12, 13, 4 Number of Holes :Â Â 4 ARRA Compliant :Â Â Contact Manufacturer Class Code :Â Â P02 Description - Invoice :Â Â N412,SD,WINDOW,20X20X8,ULT. LIGHT GRAY Freight Class Code :Â Â 06316009 Harmonization Code :Â Â 7326908688 Image Actual Or Representative :Â Â R Lead Time :Â Â 21 wk MSDS Flag :Â Â No Order Multiple :Â Â 1 EA Returnable Indicator :Â Â Yes Stock Indicator :Â Â S - Shelf Stock Sub Class Code :Â Â P02P038 Latches Type :Â Â 1/4 Turn UL Listed :Â Â Yes Material :Â Â Carbon Steel Base Unit of Measure :Â Â EA BOX SIZE :Â Â 9.750x22.500x20.060 (in) Carton - SCC-14 Next Lower Level Sub Pack :Â Â 00786725868759 Certifications
Certified Listed :Â Â cULus;IEC EU RoHS Indicator :Â Â No Listings :Â Â UL, CSA - Downloads
Spec SheetMSDS
STEP 3D Model Asset ReferenceCatalog Full Asset ReferenceCustomer Notices Asset ReferenceSales Drawing Asset ReferenceTerms and Conditions Asset ReferenceHWDN412202008WCLG-S.dxf
