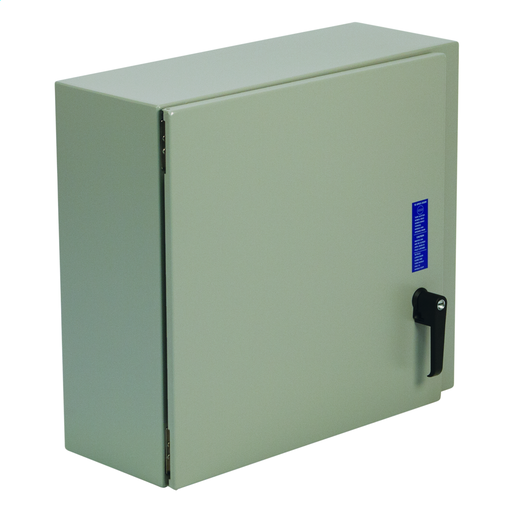

N412 Single Door Flanged Disconnect Ultimate 20X22X8 Carbon Steel - Gray
MFG #N412202208CD
$1,035.02Â /Â E
EACH
EACH
Product Description:
N412 Single Door Flanged Disconnect Ultimate 20X22X8 Carbon Steel - Gray
HESCO Part Number
WIEN412202208CD
UPC
786725862610
Manufacturer Part Number
N412202208CD
Manufacturer
Wiegmann
N412 Single Door Flanged Disconnect Ultimate 20X22X8 Carbon Steel - Gray
MFG #N412202208CD
Product Description:
N412 Single Door Flanged Disconnect Ultimate 20X22X8 Carbon Steel - Gray
HESCO Part Number
WIEN412202208CD
UPC
786725862610
Manufacturer Part Number
N412202208CD
Manufacturer
Wiegmann
$1,035.02Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- 20X22X8 Carbon Steel - Gray
Specifications
| Buy American Compliant | :Â Â | Contact Manufacturer |
| Country of Origin | :Â Â | US |
| Each - Width | :Â Â | 23.000 in |
| Industry Standard(s) | :Â Â | cULus;IEC 60529 |
| Number of Doors (Fixed) | :Â Â | 1 |
| Application | :Â Â | These general purpose disconnect enclosures accept major brand disconnect switches and circuit breakers, available with or without Wiegmann-supplied defeater door handle and handle hardware. |
| Cable Entry | :Â Â | NO |
| Color | :Â Â | ANSI-61 Gray, Textured |
| Cover Type | :Â Â | Door |
| Cubic Capacity | :Â Â | 3520 cu.in |
| Depth | :Â Â | 8 in |
| Finish | :Â Â | Textured Polyester Paint |
| Height | :Â Â | 20 in |
| Mounting | :Â Â | Mounting Holes |
| NEMA Rating | :Â Â | 1,3R, 12, 13, 4 |
| Standard | :Â Â | cULus;IEC 60529 |
| Sub Brand | :Â Â | Ultimate Series |
| Type | :Â Â | Enclosure |
| Width | :Â Â | 22 in |
| Weight | :Â Â | 43 lb. |
| Finish Type | :Â Â | Textured Polyester Paint |
| Knockouts | :Â Â | No |
| Mounting Type | :Â Â | Mounting Holes |
| Nema Rating | :Â Â | 1,3R, 12, 13, 4 |
| Number of Holes | :Â Â | 4 |
| ARRA Compliant | :Â Â | Contact Manufacturer |
| Class Code | :Â Â | P02 |
| Description - Invoice | :Â Â | N412,DISCONNECT 20X22X8W/HNDL-ULTIMATE |
| Freight Class Code | :Â Â | 06316009 |
| Harmonization Code | :Â Â | 7326908688 |
| Image Actual Or Representative | :Â Â | R |
| Lead Time | :Â Â | 21 wk |
| MSDS Flag | :Â Â | No |
| Order Multiple | :Â Â | 1 EA |
| Returnable Indicator | :Â Â | Yes |
| Stock Indicator | :Â Â | S - Shelf Stock |
| Sub Class Code | :Â Â | P02P038 |
| Latches Type | :Â Â | 2-Point |
| UL Listed | :Â Â | Yes |
| Construction | :Â Â | Continuously Welded Seams |
| Material | :Â Â | Carbon Steel |
| Base Unit of Measure | :Â Â | EA |
| BOX SIZE | :Â Â | 12.000x23.000x23.000 (in) |
| Carton - SCC-14 Next Lower Level Sub Pack | :Â Â | 00786725862610 |
| Carton - Total Units | :Â Â | 1 EA |
| Pallet Height | :Â Â | 40.500 in |
| Pallet Length | :Â Â | 48.000 in |
| Pallet Weight | :Â Â | 291.000 lb. |
| Pallet Width | :Â Â | 40.000 in |
Certifications | ||
| CSA Approved | :Â Â | NO |
| cULus | :Â Â | YES |
| ETL | :Â Â | NO |
| Certified Listed | :Â Â | cULus;IEC |
| EU RoHS Indicator | :Â Â | Yes |
| Listings | :Â Â | UL, CSA |
- 20X22X8 Carbon Steel - Gray
Specifications
Buy American Compliant :Â Â Contact Manufacturer Country of Origin :Â Â US Each - Width :Â Â 23.000 in Industry Standard(s) :Â Â cULus;IEC 60529 Number of Doors (Fixed) :Â Â 1 Application :Â Â These general purpose disconnect enclosures accept major brand disconnect switches and circuit breakers, available with or without Wiegmann-supplied defeater door handle and handle hardware. Cable Entry :Â Â NO Color :Â Â ANSI-61 Gray, Textured Cover Type :Â Â Door Cubic Capacity :Â Â 3520 cu.in Depth :Â Â 8 in Finish :Â Â Textured Polyester Paint Height :Â Â 20 in Mounting :Â Â Mounting Holes NEMA Rating :Â Â 1,3R, 12, 13, 4 Standard :Â Â cULus;IEC 60529 Sub Brand :Â Â Ultimate Series Type :Â Â Enclosure Width :Â Â 22 in Weight :Â Â 43 lb. Finish Type :Â Â Textured Polyester Paint Knockouts :Â Â No Mounting Type :Â Â Mounting Holes Nema Rating :Â Â 1,3R, 12, 13, 4 Number of Holes :Â Â 4 ARRA Compliant :Â Â Contact Manufacturer Class Code :Â Â P02 Description - Invoice :Â Â N412,DISCONNECT 20X22X8W/HNDL-ULTIMATE Freight Class Code :Â Â 06316009 Harmonization Code :Â Â 7326908688 Image Actual Or Representative :Â Â R Lead Time :Â Â 21 wk MSDS Flag :Â Â No Order Multiple :Â Â 1 EA Returnable Indicator :Â Â Yes Stock Indicator :Â Â S - Shelf Stock Sub Class Code :Â Â P02P038 Latches Type :Â Â 2-Point UL Listed :Â Â Yes Construction :Â Â Continuously Welded Seams Material :Â Â Carbon Steel Base Unit of Measure :Â Â EA BOX SIZE :Â Â 12.000x23.000x23.000 (in) Carton - SCC-14 Next Lower Level Sub Pack :Â Â 00786725862610 Carton - Total Units :Â Â 1 EA Pallet Height :Â Â 40.500 in Pallet Length :Â Â 48.000 in Pallet Weight :Â Â 291.000 lb. Pallet Width :Â Â 40.000 in Certifications
CSA Approved :Â Â NO cULus :Â Â YES ETL :Â Â NO Certified Listed :Â Â cULus;IEC EU RoHS Indicator :Â Â Yes Listings :Â Â UL, CSA - Downloads
Spec SheetMSDS
STEP 3D Model Asset ReferenceCatalog Full Asset ReferenceCustomer Notices Asset ReferenceSales Drawing Asset ReferenceTerms and Conditions Asset ReferenceHWDN412202208CD.dxfN412202208CD-MOD.dxfMOD Center Drawings Instructions
