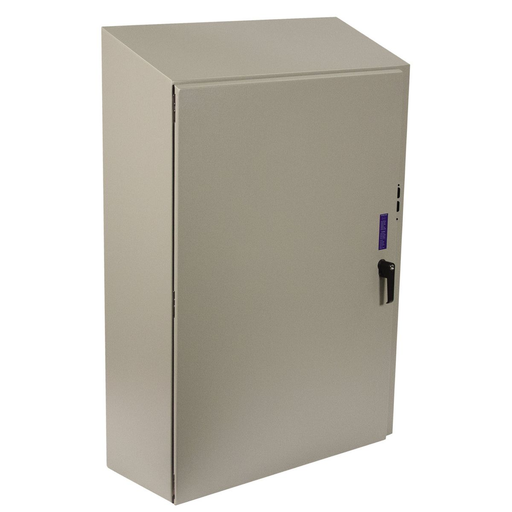

N412 Single Door Slope-Top Disconnect Ultimate Series 24X26X8 Carbon Steel-Gray
MFG #N412242608CSTD
$1,261.61Â /Â E
EACH
EACH
Product Description:
N412 Single Door Slope-Top Disconnect Ultimate Series 24X26X8 Carbon Steel-Gray
HESCO Part Number
WIEN412242608CSTD
UPC
786725864560
Manufacturer Part Number
N412242608CSTD
Manufacturer
Wiegmann
N412 Single Door Slope-Top Disconnect Ultimate Series 24X26X8 Carbon Steel-Gray
MFG #N412242608CSTD
Product Description:
N412 Single Door Slope-Top Disconnect Ultimate Series 24X26X8 Carbon Steel-Gray
HESCO Part Number
WIEN412242608CSTD
UPC
786725864560
Manufacturer Part Number
N412242608CSTD
Manufacturer
Wiegmann
$1,261.61Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Bodies and doors are fabricated from carbon steel
- Seams are continuously welded and ground smooth
- Doors are sealed with a poured in place gasket
- Mounting holes are located in the back of the enclosure
- Latching system interlocks with the disconnect handle for added safety
- Bodies and doors fabricated from 14 gauge steel. Continuously plasma welded seams. Increased tub opening for better access. 20 degree sloped top. Sloped "Top tub flange". Concealed hinges. Easy to remove doors are interchangeable. Grounding provisions included. 1/4-turn semi-flush oil tight latches are supplied to hold door securely closed. Print pocket is provided. Doors are sealed with poured-in-place polyurethane gasket. Mounting holes in rear of enclosure. Studs for mounting optional back panel (the Ultimate back panels have increased in size to accommodate larger foot-print installations). Ultimate Accessory Driven. Door handle and latching hardware are provided. Door latching system installed on door with slotted insert defeater mechanism to open. Latching system interlocks with the disconnect handle for added safety. 3pt latch system.
Specifications
| Buy American Compliant | :Â Â | Contact Manufacturer |
| Country of Origin | :Â Â | US |
| Each - Width | :Â Â | 26.000 in |
| Industry Standard(s) | :Â Â | cULus;IEC 60529 |
| Number of Doors (Fixed) | :Â Â | 1 |
| Application | :Â Â | Hubbell Wiegmann N412CSTD Ultimate Series Disconnects are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are present. Streamli |
| Cable Entry | :Â Â | NO |
| Color | :Â Â | ANSI-61 Gray, Textured |
| Cover Type | :Â Â | Door |
| Cubic Capacity | :Â Â | 4992 cu.in |
| Depth | :Â Â | 8 in |
| Finish | :Â Â | Textured Polyester Paint |
| Height | :Â Â | 24 in |
| Mounting | :Â Â | Mounting Holes |
| NEMA Rating | :Â Â | 1,3R, 12, 13, 4 |
| Special Features | :Â Â | Bodies and doors fabricated from 14 gauge steel. Continuously plasma welded seams. Increased tub opening for better access. 20 degree sloped top. Sloped "Top tub flange". Concealed hinges. Easy to remove doors are interchangeable. Grounding provisions included. 1/4-turn semi-flush oil tight latches are supplied to hold door securely closed. Print pocket is provided. Doors are sealed with poured-in-place polyurethane gasket. Mounting holes in rear of enclosure. Studs for mounting optional back panel (the Ultimate back panels have increased in size to accommodate larger foot-print installations). Ultimate Accessory Driven. Door handle and latching hardware are provided. Door latching system installed on door with slotted insert defeater mechanism to open. Latching system interlocks with the disconnect handle for added safety. 3pt latch system. |
| Standard | :Â Â | cULus;IEC 60529 |
| Sub Brand | :Â Â | Ultimate Series |
| Type | :Â Â | Carbon Steel NEMA 4X Slope Top Single Door Disconnect Enclosure |
| Width | :Â Â | 26 in |
| Weight | :Â Â | 44.5 lb. |
| Finish Type | :Â Â | Textured Polyester Paint |
| Knockouts | :Â Â | No |
| Mounting Type | :Â Â | Mounting Holes |
| Nema Rating | :Â Â | 1,3R, 12, 13, 4 |
| Number of Holes | :Â Â | 4 |
| ARRA Compliant | :Â Â | Contact Manufacturer |
| Class Code | :Â Â | P02 |
| Description - Invoice | :Â Â | N412,SD,ULTIMATE,SLOPE TOP,DISC,24X26X8 |
| Freight Class Code | :Â Â | 06316009 |
| Harmonization Code | :Â Â | 7326908688 |
| Image Actual Or Representative | :Â Â | R |
| Lead Time | :Â Â | 21 wk |
| MSDS Flag | :Â Â | No |
| Order Multiple | :Â Â | 1 EA |
| Returnable Indicator | :Â Â | Yes |
| Stock Indicator | :Â Â | S - Shelf Stock |
| Sub Class Code | :Â Â | P02P038 |
| Latches Type | :Â Â | 2-Point |
| UL Listed | :Â Â | Yes |
| Material | :Â Â | Carbon Steel |
| Base Unit of Measure | :Â Â | EA |
| BOX SIZE | :Â Â | 24.000x8.000x26.000 (in) |
| Carton - SCC-14 Next Lower Level Sub Pack | :Â Â | 00786725864560 |
Certifications | ||
| Certified Listed | :Â Â | cULus;IEC |
| EU RoHS Indicator | :Â Â | Yes |
| Listings | :Â Â | UL, CSA |
- Bodies and doors are fabricated from carbon steel
- Seams are continuously welded and ground smooth
- Doors are sealed with a poured in place gasket
- Mounting holes are located in the back of the enclosure
- Latching system interlocks with the disconnect handle for added safety
- Bodies and doors fabricated from 14 gauge steel. Continuously plasma welded seams. Increased tub opening for better access. 20 degree sloped top. Sloped "Top tub flange". Concealed hinges. Easy to remove doors are interchangeable. Grounding provisions included. 1/4-turn semi-flush oil tight latches are supplied to hold door securely closed. Print pocket is provided. Doors are sealed with poured-in-place polyurethane gasket. Mounting holes in rear of enclosure. Studs for mounting optional back panel (the Ultimate back panels have increased in size to accommodate larger foot-print installations). Ultimate Accessory Driven. Door handle and latching hardware are provided. Door latching system installed on door with slotted insert defeater mechanism to open. Latching system interlocks with the disconnect handle for added safety. 3pt latch system.
Specifications
Buy American Compliant :Â Â Contact Manufacturer Country of Origin :Â Â US Each - Width :Â Â 26.000 in Industry Standard(s) :Â Â cULus;IEC 60529 Number of Doors (Fixed) :Â Â 1 Application :Â Â Hubbell Wiegmann N412CSTD Ultimate Series Disconnects are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are present. Streamli Cable Entry :Â Â NO Color :Â Â ANSI-61 Gray, Textured Cover Type :Â Â Door Cubic Capacity :Â Â 4992 cu.in Depth :Â Â 8 in Finish :Â Â Textured Polyester Paint Height :Â Â 24 in Mounting :Â Â Mounting Holes NEMA Rating :Â Â 1,3R, 12, 13, 4 Special Features :Â Â Bodies and doors fabricated from 14 gauge steel. Continuously plasma welded seams. Increased tub opening for better access. 20 degree sloped top. Sloped "Top tub flange". Concealed hinges. Easy to remove doors are interchangeable. Grounding provisions included. 1/4-turn semi-flush oil tight latches are supplied to hold door securely closed. Print pocket is provided. Doors are sealed with poured-in-place polyurethane gasket. Mounting holes in rear of enclosure. Studs for mounting optional back panel (the Ultimate back panels have increased in size to accommodate larger foot-print installations). Ultimate Accessory Driven. Door handle and latching hardware are provided. Door latching system installed on door with slotted insert defeater mechanism to open. Latching system interlocks with the disconnect handle for added safety. 3pt latch system. Standard :Â Â cULus;IEC 60529 Sub Brand :Â Â Ultimate Series Type :Â Â Carbon Steel NEMA 4X Slope Top Single Door Disconnect Enclosure Width :Â Â 26 in Weight :Â Â 44.5 lb. Finish Type :Â Â Textured Polyester Paint Knockouts :Â Â No Mounting Type :Â Â Mounting Holes Nema Rating :Â Â 1,3R, 12, 13, 4 Number of Holes :Â Â 4 ARRA Compliant :Â Â Contact Manufacturer Class Code :Â Â P02 Description - Invoice :Â Â N412,SD,ULTIMATE,SLOPE TOP,DISC,24X26X8 Freight Class Code :Â Â 06316009 Harmonization Code :Â Â 7326908688 Image Actual Or Representative :Â Â R Lead Time :Â Â 21 wk MSDS Flag :Â Â No Order Multiple :Â Â 1 EA Returnable Indicator :Â Â Yes Stock Indicator :Â Â S - Shelf Stock Sub Class Code :Â Â P02P038 Latches Type :Â Â 2-Point UL Listed :Â Â Yes Material :Â Â Carbon Steel Base Unit of Measure :Â Â EA BOX SIZE :Â Â 24.000x8.000x26.000 (in) Carton - SCC-14 Next Lower Level Sub Pack :Â Â 00786725864560 Certifications
Certified Listed :Â Â cULus;IEC EU RoHS Indicator :Â Â Yes Listings :Â Â UL, CSA - Downloads
