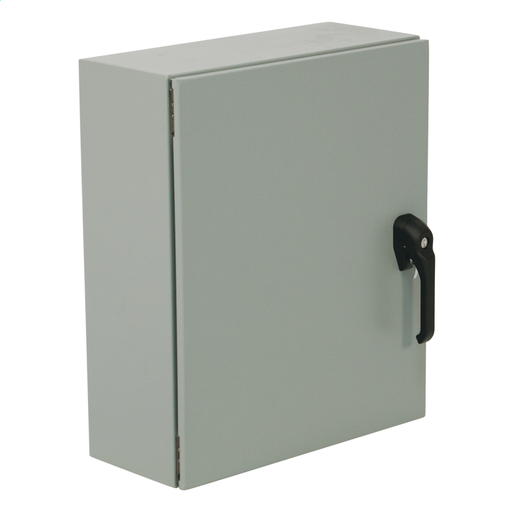

N412 Single Door Wall-Mount Ultimate 3-Point Handle 30X30X8 Carbon Steel - Gray
MFG #N4123030083PTC
$1,030.65Â /Â E
EACH
EACH
Product Description:
N412 Single Door Wall-Mount Ultimate 3-Point Handle 30X30X8 Carbon Steel - Gray
HESCO Part Number
WIEN4123030083PTC
UPC
786725869138
Manufacturer Part Number
N4123030083PTC
Manufacturer
Wiegmann
N412 Single Door Wall-Mount Ultimate 3-Point Handle 30X30X8 Carbon Steel - Gray
MFG #N4123030083PTC
Product Description:
N412 Single Door Wall-Mount Ultimate 3-Point Handle 30X30X8 Carbon Steel - Gray
HESCO Part Number
WIEN4123030083PTC
UPC
786725869138
Manufacturer Part Number
N4123030083PTC
Manufacturer
Wiegmann
$1,030.65Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Bodies and doors fabricated from 14 gauge steel
- Continuously welded seams ground smooth, less holes and knockouts
- Doors are interchangeable and easily removable
- Grounding studs are welded to door and body assuring a positive ground
- Print pocket is provided
- Doors are sealed with poured-in-place gasket
- Mounting holes in rear of enclosure
- Collar studs for mounting optional back panel
- With 3pt keylocking/padlocking combo handle
Certifications
| Certified Listed | :Â Â | cULus;IEC |
| EU RoHS Indicator | :Â Â | No |
| Listings | :Â Â | UL, CSA |
Specifications | ||
| Actual Depth | :Â Â | 9.75 in |
| Actual Height | :Â Â | 30 in |
| Actual Width | :Â Â | 30.06 in |
| Buy American Compliant | :Â Â | Contact Manufacturer |
| Country of Origin | :Â Â | US |
| Each - Width | :Â Â | 31.000 in |
| Industry Standard(s) | :Â Â | cULus;IEC 60529 |
| Number of Doors (Fixed) | :Â Â | 1 |
| Application | :Â Â | Hubbell Wiegmann N4123PTC ULTIMATE Series Enclosures are designed to house and protect electrical and eletronic components from harsh, dirty environments. For use in installations where dirt, dust, oil water, or other contaminants are present. Streamlined |
| Cable Entry | :Â Â | NO |
| Color | :Â Â | ANSI-61 Gray, Textured |
| Cubic Capacity | :Â Â | 7200 cu.in |
| Depth | :Â Â | 8 in |
| Finish | :Â Â | Textured Polyester Paint |
| Height | :Â Â | 30 in |
| Mounting | :Â Â | Mounting Holes |
| NEMA Rating | :Â Â | 1,3R, 12, 13, 4 |
| Standard | :Â Â | cULus;IEC 60529 |
| Sub Brand | :Â Â | Ultimate Series |
| Type | :Â Â | Enclosure |
| Width | :Â Â | 30 in |
| Weight | :Â Â | 68 lb. |
| Finish Type | :Â Â | Textured Polyester Paint |
| Knockouts | :Â Â | No |
| Mounting Type | :Â Â | Mounting Holes |
| Nema Rating | :Â Â | 1,3R, 12, 13, 4 |
| Number of Holes | :Â Â | 4 |
| ARRA Compliant | :Â Â | Contact Manufacturer |
| Class Code | :Â Â | P02 |
| Description - Invoice | :Â Â | N412,SD,30X30X8,ULTIMATE, 3PT. HANDLE |
| Freight Class Code | :Â Â | 06316009 |
| Harmonization Code | :Â Â | 7326908688 |
| Image Actual Or Representative | :Â Â | R |
| Lead Time | :Â Â | 21 wk |
| MSDS Flag | :Â Â | No |
| Order Multiple | :Â Â | 1 EA |
| Returnable Indicator | :Â Â | Yes |
| Stock Indicator | :Â Â | S - Shelf Stock |
| Sub Class Code | :Â Â | P02P038 |
| Latches Type | :Â Â | 3-Point Keylocking/Padlocking |
| UL Listed | :Â Â | Yes |
| Material | :Â Â | Carbon Steel |
| Base Unit of Measure | :Â Â | EA |
| BOX SIZE | :Â Â | 9.750x38.500x30.060 (in) |
| Carton - SCC-14 Next Lower Level Sub Pack | :Â Â | 00786725869138 |
- Bodies and doors fabricated from 14 gauge steel
- Continuously welded seams ground smooth, less holes and knockouts
- Doors are interchangeable and easily removable
- Grounding studs are welded to door and body assuring a positive ground
- Print pocket is provided
- Doors are sealed with poured-in-place gasket
- Mounting holes in rear of enclosure
- Collar studs for mounting optional back panel
- With 3pt keylocking/padlocking combo handle
Certifications
Certified Listed :Â Â cULus;IEC EU RoHS Indicator :Â Â No Listings :Â Â UL, CSA Specifications
Actual Depth :Â Â 9.75 in Actual Height :Â Â 30 in Actual Width :Â Â 30.06 in Buy American Compliant :Â Â Contact Manufacturer Country of Origin :Â Â US Each - Width :Â Â 31.000 in Industry Standard(s) :Â Â cULus;IEC 60529 Number of Doors (Fixed) :Â Â 1 Application :Â Â Hubbell Wiegmann N4123PTC ULTIMATE Series Enclosures are designed to house and protect electrical and eletronic components from harsh, dirty environments. For use in installations where dirt, dust, oil water, or other contaminants are present. Streamlined Cable Entry :Â Â NO Color :Â Â ANSI-61 Gray, Textured Cubic Capacity :Â Â 7200 cu.in Depth :Â Â 8 in Finish :Â Â Textured Polyester Paint Height :Â Â 30 in Mounting :Â Â Mounting Holes NEMA Rating :Â Â 1,3R, 12, 13, 4 Standard :Â Â cULus;IEC 60529 Sub Brand :Â Â Ultimate Series Type :Â Â Enclosure Width :Â Â 30 in Weight :Â Â 68 lb. Finish Type :Â Â Textured Polyester Paint Knockouts :Â Â No Mounting Type :Â Â Mounting Holes Nema Rating :Â Â 1,3R, 12, 13, 4 Number of Holes :Â Â 4 ARRA Compliant :Â Â Contact Manufacturer Class Code :Â Â P02 Description - Invoice :Â Â N412,SD,30X30X8,ULTIMATE, 3PT. HANDLE Freight Class Code :Â Â 06316009 Harmonization Code :Â Â 7326908688 Image Actual Or Representative :Â Â R Lead Time :Â Â 21 wk MSDS Flag :Â Â No Order Multiple :Â Â 1 EA Returnable Indicator :Â Â Yes Stock Indicator :Â Â S - Shelf Stock Sub Class Code :Â Â P02P038 Latches Type :Â Â 3-Point Keylocking/Padlocking UL Listed :Â Â Yes Material :Â Â Carbon Steel Base Unit of Measure :Â Â EA BOX SIZE :Â Â 9.750x38.500x30.060 (in) Carton - SCC-14 Next Lower Level Sub Pack :Â Â 00786725869138 - Downloads
