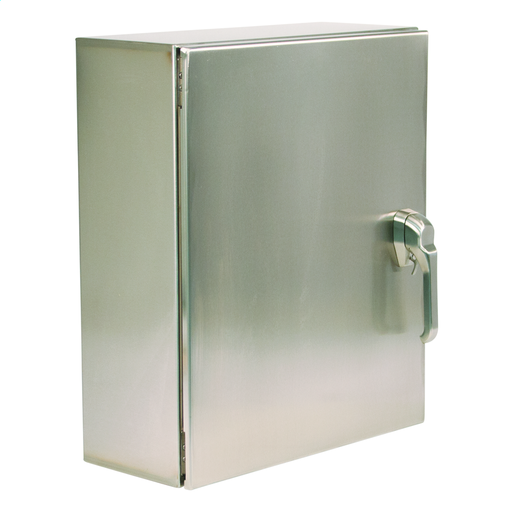

N412 Single Door Wall-Mount Ultimate 3-Point Handle 36X24X12 304 Stainless Steel
MFG #N412362412SS3PTC
$3,375.12Â /Â E
EACH
EACH
Product Description:
N412 Single Door Wall-Mount Ultimate 3-Point Handle 36X24X12 304 Stainless Steel
HESCO Part Number
WIEN412362412SS3PTC
UPC
786725870103
Manufacturer Part Number
N412362412SS3PTC
Manufacturer
Wiegmann
N412 Single Door Wall-Mount Ultimate 3-Point Handle 36X24X12 304 Stainless Steel
MFG #N412362412SS3PTC
Product Description:
N412 Single Door Wall-Mount Ultimate 3-Point Handle 36X24X12 304 Stainless Steel
HESCO Part Number
WIEN412362412SS3PTC
UPC
786725870103
Manufacturer Part Number
N412362412SS3PTC
Manufacturer
Wiegmann
$3,375.12Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Hubbell Wiegmann N412SSC ULTIMATE Stainless Steel Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments
- For use in installations where dirt, dust, oil, water or other contaminants are present
- Typically used in the following areas where corrosion-resistant protection is needed: food processing plants, pharmaceutical manufacturing facilities, petrochemical plants, pulp and paper processing and waste water treatment facilities
- Streamlined styling, flush latching and attractive stainless steel finish complement any high tech electronic equipment.
Certifications
| Certified Listed | :Â Â | cULus;IEC |
| EU RoHS Indicator | :Â Â | No |
| Listings | :Â Â | UL, CSA |
Specifications | ||
| Actual Depth | :Â Â | 13.75 in |
| Actual Height | :Â Â | 36 in |
| Actual Width | :Â Â | 30.06 in |
| Buy American Compliant | :Â Â | Contact Manufacturer |
| Country of Origin | :Â Â | US |
| Each - Width | :Â Â | 24.000 in |
| Industry Standard(s) | :Â Â | cULus;IEC 60529 |
| Number of Doors (Fixed) | :Â Â | 1 |
| Application | :Â Â | Hubbell Wiegmann N412SS3PTC ULTIMATE Stainless Steel Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are |
| Cable Entry | :Â Â | NO |
| Color | :Â Â | Brushes Stainless Steel |
| Cover Type | :Â Â | Door |
| Cubic Capacity | :Â Â | 10368 cu.in |
| Depth | :Â Â | 12 in |
| Finish | :Â Â | Smooth Grained Stainless |
| Height | :Â Â | 36 in |
| Mounting | :Â Â | Mounting Holes |
| NEMA Rating | :Â Â | 1,3R,12,13,4,4X |
| Standard | :Â Â | cULus;IEC 60529 |
| Sub Brand | :Â Â | Ultimate Series |
| Type | :Â Â | Enclosure |
| Width | :Â Â | 24 in |
| Weight | :Â Â | 85 lb. |
| Finish Type | :Â Â | Smooth Grained Stainless |
| Knockouts | :Â Â | No |
| Mounting Type | :Â Â | Mounting Holes |
| Nema Rating | :Â Â | 1,3R,12,13,4,4X |
| Number of Holes | :Â Â | 4 |
| ARRA Compliant | :Â Â | Contact Manufacturer |
| Class Code | :Â Â | P03 |
| Description - Invoice | :Â Â | N412,ULTIMATE,SD,SS,36X24X12,3PT HANDLE |
| Freight Class Code | :Â Â | 06316009 |
| Harmonization Code | :Â Â | 7326908688 |
| Image Actual Or Representative | :Â Â | R |
| Lead Time | :Â Â | 21 wk |
| MSDS Flag | :Â Â | No |
| Order Multiple | :Â Â | 1 EA |
| Returnable Indicator | :Â Â | Yes |
| Stock Indicator | :Â Â | S - Shelf Stock |
| Sub Class Code | :Â Â | P03P057 |
| Latches Type | :Â Â | 3-Point Padlocking Handle |
| UL Listed | :Â Â | Yes |
| Material | :Â Â | Stainless Steel |
| Base Unit of Measure | :Â Â | EA |
| BOX SIZE | :Â Â | 13.750x38.500x30.060 (in) |
| Carton - SCC-14 Next Lower Level Sub Pack | :Â Â | 00786725870103 |
- Hubbell Wiegmann N412SSC ULTIMATE Stainless Steel Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments
- For use in installations where dirt, dust, oil, water or other contaminants are present
- Typically used in the following areas where corrosion-resistant protection is needed: food processing plants, pharmaceutical manufacturing facilities, petrochemical plants, pulp and paper processing and waste water treatment facilities
- Streamlined styling, flush latching and attractive stainless steel finish complement any high tech electronic equipment.
Certifications
Certified Listed :Â Â cULus;IEC EU RoHS Indicator :Â Â No Listings :Â Â UL, CSA Specifications
Actual Depth :Â Â 13.75 in Actual Height :Â Â 36 in Actual Width :Â Â 30.06 in Buy American Compliant :Â Â Contact Manufacturer Country of Origin :Â Â US Each - Width :Â Â 24.000 in Industry Standard(s) :Â Â cULus;IEC 60529 Number of Doors (Fixed) :Â Â 1 Application :Â Â Hubbell Wiegmann N412SS3PTC ULTIMATE Stainless Steel Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are Cable Entry :Â Â NO Color :Â Â Brushes Stainless Steel Cover Type :Â Â Door Cubic Capacity :Â Â 10368 cu.in Depth :Â Â 12 in Finish :Â Â Smooth Grained Stainless Height :Â Â 36 in Mounting :Â Â Mounting Holes NEMA Rating :Â Â 1,3R,12,13,4,4X Standard :Â Â cULus;IEC 60529 Sub Brand :Â Â Ultimate Series Type :Â Â Enclosure Width :Â Â 24 in Weight :Â Â 85 lb. Finish Type :Â Â Smooth Grained Stainless Knockouts :Â Â No Mounting Type :Â Â Mounting Holes Nema Rating :Â Â 1,3R,12,13,4,4X Number of Holes :Â Â 4 ARRA Compliant :Â Â Contact Manufacturer Class Code :Â Â P03 Description - Invoice :Â Â N412,ULTIMATE,SD,SS,36X24X12,3PT HANDLE Freight Class Code :Â Â 06316009 Harmonization Code :Â Â 7326908688 Image Actual Or Representative :Â Â R Lead Time :Â Â 21 wk MSDS Flag :Â Â No Order Multiple :Â Â 1 EA Returnable Indicator :Â Â Yes Stock Indicator :Â Â S - Shelf Stock Sub Class Code :Â Â P03P057 Latches Type :Â Â 3-Point Padlocking Handle UL Listed :Â Â Yes Material :Â Â Stainless Steel Base Unit of Measure :Â Â EA BOX SIZE :Â Â 13.750x38.500x30.060 (in) Carton - SCC-14 Next Lower Level Sub Pack :Â Â 00786725870103 - Downloads
