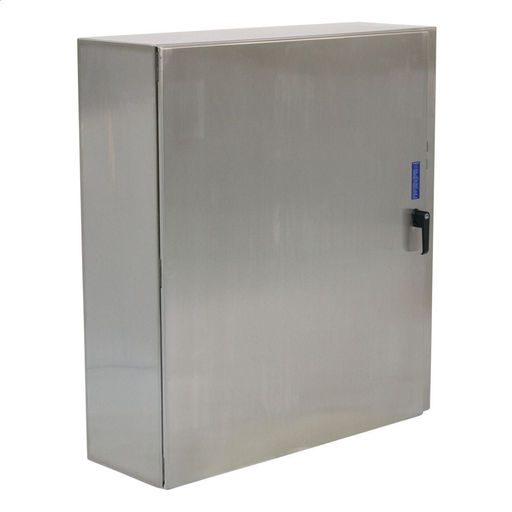

N412 Single Door Flanged Disconnect Ultimate Series 42X32X12 316 Stainless Steel
MFG #N412423212CDSSA
$6,644.16Â /Â E
EACH
EACH
Product Description:
N412 Single Door Flanged Disconnect Ultimate Series 42X32X12 316 Stainless Steel
HESCO Part Number
WIEN412423212CDSSA
UPC
786725869565
Manufacturer Part Number
N412423212CDSSA
Manufacturer
Wiegmann
N412 Single Door Flanged Disconnect Ultimate Series 42X32X12 316 Stainless Steel
MFG #N412423212CDSSA
Product Description:
N412 Single Door Flanged Disconnect Ultimate Series 42X32X12 316 Stainless Steel
HESCO Part Number
WIEN412423212CDSSA
UPC
786725869565
Manufacturer Part Number
N412423212CDSSA
Manufacturer
Wiegmann
$6,644.16Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Bodies and doors are fabricated from 316L stainless steel
- Seams are continuously welded and ground smooth
- Doors are sealed with a poured in place gasket
- Mounting holes are located in the back of the enclosure
- Latching system interlocks with the disconnect handle for added safety
- Bodies and doors fabricated from 14 gauge 316 stainless steel. Continuously plasma welded seams. Increased tub opening for better access. Concealed hinges. Easy to remove doors are interchangeable. Grounding provisions included. Doors are sealed with poured-in-place polyurethane gasket. Mounting holes in rear of enclosure. Studs for mounting optional sub panel. Door latching system installed on door with a slotted insert defeater mechanism to open. Latching system interlocks with the disconnect handle for added safety. 3pt latch system.
Specifications
| Buy American Compliant | :Â Â | Contact Manufacturer |
| Country of Origin | :Â Â | US |
| Each - Width | :Â Â | 32.000 in |
| Industry Standard(s) | :Â Â | cULus;IEC 60529 |
| Number of Doors (Fixed) | :Â Â | 1 |
| Application | :Â Â | These general purpose disconnect enclosures accept major brand disconnect switches and circuit breakers, available with or without Wiegmann-supplied defeater door handle and handle hardware. |
| Cable Entry | :Â Â | NO |
| Color | :Â Â | Brushes Stainless Steel |
| Cover Type | :Â Â | Door |
| Cubic Capacity | :Â Â | 16128 cu.in |
| Depth | :Â Â | 12 in |
| Finish | :Â Â | Smooth Grained Stainless |
| Height | :Â Â | 42 in |
| Mounting | :Â Â | Mounting Holes |
| NEMA Rating | :Â Â | 1,3R,12,13,4,4X |
| Special Features | :Â Â | Bodies and doors fabricated from 14 gauge 316 stainless steel. Continuously plasma welded seams. Increased tub opening for better access. Concealed hinges. Easy to remove doors are interchangeable. Grounding provisions included. Doors are sealed with poured-in-place polyurethane gasket. Mounting holes in rear of enclosure. Studs for mounting optional sub panel. Door latching system installed on door with a slotted insert defeater mechanism to open. Latching system interlocks with the disconnect handle for added safety. 3pt latch system. |
| Standard | :Â Â | cULus;IEC 60529 |
| Sub Brand | :Â Â | Ultimate Series |
| Type | :Â Â | Enclosure |
| Width | :Â Â | 32 in |
| Weight | :Â Â | 123 lb. |
| Finish Type | :Â Â | Smooth Grained Stainless |
| Knockouts | :Â Â | No |
| Mounting Type | :Â Â | Mounting Holes |
| Nema Rating | :Â Â | 1,3R,12,13,4,4X |
| Number of Holes | :Â Â | 4 |
| ARRA Compliant | :Â Â | Contact Manufacturer |
| Class Code | :Â Â | P03 |
| Description - Invoice | :Â Â | N412,WM 316SS DISC. 42X32X12W/HNDL.ULT. |
| Freight Class Code | :Â Â | 06316009 |
| Harmonization Code | :Â Â | 7326908688 |
| Image Actual Or Representative | :Â Â | R |
| Lead Time | :Â Â | 21 wk |
| MSDS Flag | :Â Â | No |
| Order Multiple | :Â Â | 1 EA |
| Returnable Indicator | :Â Â | Yes |
| Stock Indicator | :Â Â | S - Shelf Stock |
| Sub Class Code | :Â Â | P03P057 |
| Latches Type | :Â Â | 3-Point |
| UL Listed | :Â Â | Yes |
| Material | :Â Â | Stainless Steel |
| Base Unit of Measure | :Â Â | EA |
| BOX SIZE | :Â Â | 42.000x12.000x32.000 (in) |
| Carton - SCC-14 Next Lower Level Sub Pack | :Â Â | 00786725869565 |
Certifications | ||
| Certified Listed | :Â Â | cULus;IEC |
| EU RoHS Indicator | :Â Â | No |
| Listings | :Â Â | UL, CSA |
- Bodies and doors are fabricated from 316L stainless steel
- Seams are continuously welded and ground smooth
- Doors are sealed with a poured in place gasket
- Mounting holes are located in the back of the enclosure
- Latching system interlocks with the disconnect handle for added safety
- Bodies and doors fabricated from 14 gauge 316 stainless steel. Continuously plasma welded seams. Increased tub opening for better access. Concealed hinges. Easy to remove doors are interchangeable. Grounding provisions included. Doors are sealed with poured-in-place polyurethane gasket. Mounting holes in rear of enclosure. Studs for mounting optional sub panel. Door latching system installed on door with a slotted insert defeater mechanism to open. Latching system interlocks with the disconnect handle for added safety. 3pt latch system.
Specifications
Buy American Compliant :Â Â Contact Manufacturer Country of Origin :Â Â US Each - Width :Â Â 32.000 in Industry Standard(s) :Â Â cULus;IEC 60529 Number of Doors (Fixed) :Â Â 1 Application :Â Â These general purpose disconnect enclosures accept major brand disconnect switches and circuit breakers, available with or without Wiegmann-supplied defeater door handle and handle hardware. Cable Entry :Â Â NO Color :Â Â Brushes Stainless Steel Cover Type :Â Â Door Cubic Capacity :Â Â 16128 cu.in Depth :Â Â 12 in Finish :Â Â Smooth Grained Stainless Height :Â Â 42 in Mounting :Â Â Mounting Holes NEMA Rating :Â Â 1,3R,12,13,4,4X Special Features :Â Â Bodies and doors fabricated from 14 gauge 316 stainless steel. Continuously plasma welded seams. Increased tub opening for better access. Concealed hinges. Easy to remove doors are interchangeable. Grounding provisions included. Doors are sealed with poured-in-place polyurethane gasket. Mounting holes in rear of enclosure. Studs for mounting optional sub panel. Door latching system installed on door with a slotted insert defeater mechanism to open. Latching system interlocks with the disconnect handle for added safety. 3pt latch system. Standard :Â Â cULus;IEC 60529 Sub Brand :Â Â Ultimate Series Type :Â Â Enclosure Width :Â Â 32 in Weight :Â Â 123 lb. Finish Type :Â Â Smooth Grained Stainless Knockouts :Â Â No Mounting Type :Â Â Mounting Holes Nema Rating :Â Â 1,3R,12,13,4,4X Number of Holes :Â Â 4 ARRA Compliant :Â Â Contact Manufacturer Class Code :Â Â P03 Description - Invoice :Â Â N412,WM 316SS DISC. 42X32X12W/HNDL.ULT. Freight Class Code :Â Â 06316009 Harmonization Code :Â Â 7326908688 Image Actual Or Representative :Â Â R Lead Time :Â Â 21 wk MSDS Flag :Â Â No Order Multiple :Â Â 1 EA Returnable Indicator :Â Â Yes Stock Indicator :Â Â S - Shelf Stock Sub Class Code :Â Â P03P057 Latches Type :Â Â 3-Point UL Listed :Â Â Yes Material :Â Â Stainless Steel Base Unit of Measure :Â Â EA BOX SIZE :Â Â 42.000x12.000x32.000 (in) Carton - SCC-14 Next Lower Level Sub Pack :Â Â 00786725869565 Certifications
Certified Listed :Â Â cULus;IEC EU RoHS Indicator :Â Â No Listings :Â Â UL, CSA - Downloads
