Wiegmann

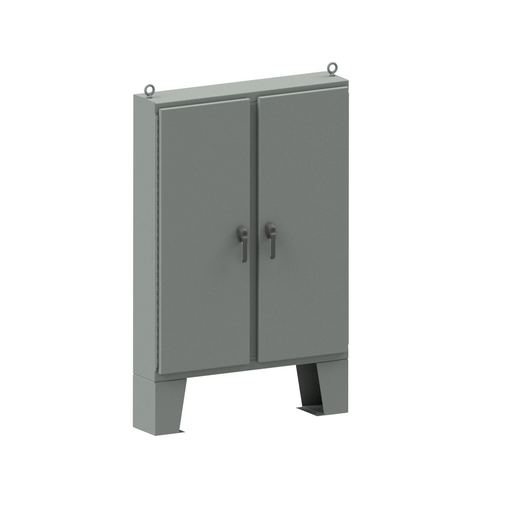

N4 Double Door Floor-Mount 3-Point Handle 74X72X12 Carbon Steel - Gray
MFG #N4D7472123PT
$7,017.41Â /Â E
EACH
EACH
Product Description:
N4 Double Door Floor-Mount 3-Point Handle 74X72X12 Carbon Steel - Gray
HESCO Part Number
WIEN4D7472123PT
UPC
786725865604
Manufacturer Part Number
N4D7472123PT
Manufacturer
Wiegmann
Wiegmann
N4 Double Door Floor-Mount 3-Point Handle 74X72X12 Carbon Steel - Gray
MFG #N4D7472123PT
Product Description:
N4 Double Door Floor-Mount 3-Point Handle 74X72X12 Carbon Steel - Gray
HESCO Part Number
WIEN4D7472123PT
UPC
786725865604
Manufacturer Part Number
N4D7472123PT
Manufacturer
Wiegmann
$7,017.41Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- 3-Point Handle 74X72X12 Carbon Steel - Gray
Certifications
| Certified Listed | :Â Â | cULus |
| EU RoHS Indicator | :Â Â | Yes |
| Listings | :Â Â | UL, CSA |
Specifications | ||
| Buy American Compliant | :Â Â | Contact Manufacturer |
| Country of Origin | :Â Â | US |
| Each - Width | :Â Â | 80.000 in |
| Number of Doors (Fixed) | :Â Â | 2 |
| Application | :Â Â | Designed to house electrical and electronic controls, components, and instruments in wet non-corrosive environments. Typical applications for these enclosures include dairies, breweries, and other food processing activities that may require hose down. Enc |
| Color | :Â Â | Ansi-61 Gray Textured |
| Cover Type | :Â Â | Door |
| Cubic Capacity | :Â Â | 46080 cu.in |
| Depth | :Â Â | 24 in |
| Height | :Â Â | 24 in |
| Mounting | :Â Â | 12 in High Floor Stand Kit |
| NEMA Rating | :Â Â | 4 |
| Standard | :Â Â | cULus |
| Type | :Â Â | Enclosure |
| Width | :Â Â | 80 in |
| Weight | :Â Â | 670 lb. |
| Mounting Type | :Â Â | 12 in High Floor Stand Kit |
| Nema Rating | :Â Â | 4 |
| ARRA Compliant | :Â Â | Contact Manufacturer |
| Class Code | :Â Â | P02 |
| Description - Invoice | :Â Â | ENCL,NEMA4,CS,2D,74X72X12,3PT |
| Freight Class Code | :Â Â | 06111001 |
| Harmonization Code | :Â Â | 7326908688 |
| Image Actual Or Representative | :Â Â | R |
| Lead Time | :Â Â | 21 wk |
| MSDS Flag | :Â Â | No |
| Order Multiple | :Â Â | 1 EA |
| Returnable Indicator | :Â Â | Yes |
| Stock Indicator | :Â Â | S - Shelf Stock |
| Sub Class Code | :Â Â | P02P031 |
| Latches Type | :Â Â | 3-Point Keylocking/Padlocking |
| UL Listed | :Â Â | Yes |
| Construction | :Â Â | Continuously Welded Seams |
| Material | :Â Â | Carbon Steel |
| Base Unit of Measure | :Â Â | EA |
| BOX SIZE | :Â Â | 24.000x79.000x80.000 (in) |
| Carton - SCC-14 Next Lower Level Sub Pack | :Â Â | 00786725865604 |
- 3-Point Handle 74X72X12 Carbon Steel - Gray
Certifications
Certified Listed :Â Â cULus EU RoHS Indicator :Â Â Yes Listings :Â Â UL, CSA Specifications
Buy American Compliant :Â Â Contact Manufacturer Country of Origin :Â Â US Each - Width :Â Â 80.000 in Number of Doors (Fixed) :Â Â 2 Application :Â Â Designed to house electrical and electronic controls, components, and instruments in wet non-corrosive environments. Typical applications for these enclosures include dairies, breweries, and other food processing activities that may require hose down. Enc Color :Â Â Ansi-61 Gray Textured Cover Type :Â Â Door Cubic Capacity :Â Â 46080 cu.in Depth :Â Â 24 in Height :Â Â 24 in Mounting :Â Â 12 in High Floor Stand Kit NEMA Rating :Â Â 4 Standard :Â Â cULus Type :Â Â Enclosure Width :Â Â 80 in Weight :Â Â 670 lb. Mounting Type :Â Â 12 in High Floor Stand Kit Nema Rating :Â Â 4 ARRA Compliant :Â Â Contact Manufacturer Class Code :Â Â P02 Description - Invoice :Â Â ENCL,NEMA4,CS,2D,74X72X12,3PT Freight Class Code :Â Â 06111001 Harmonization Code :Â Â 7326908688 Image Actual Or Representative :Â Â R Lead Time :Â Â 21 wk MSDS Flag :Â Â No Order Multiple :Â Â 1 EA Returnable Indicator :Â Â Yes Stock Indicator :Â Â S - Shelf Stock Sub Class Code :Â Â P02P031 Latches Type :Â Â 3-Point Keylocking/Padlocking UL Listed :Â Â Yes Construction :Â Â Continuously Welded Seams Material :Â Â Carbon Steel Base Unit of Measure :Â Â EA BOX SIZE :Â Â 24.000x79.000x80.000 (in) Carton - SCC-14 Next Lower Level Sub Pack :Â Â 00786725865604 - Downloads
Spec SheetMSDS
STEP 3D Model Asset ReferenceCatalog Full Asset ReferenceCustomer Notices Asset ReferenceSales Drawing Asset ReferenceTerms and Conditions Asset ReferenceHWDN4D7472123PT-S.dxf
