N3R Screw-Cover Wall-Mount No Knockouts 6X8X4 Carbon Steel - Gray
MFG #RSC060804NK
$57.06Â /Â E
EACH
EACH
Product Description:

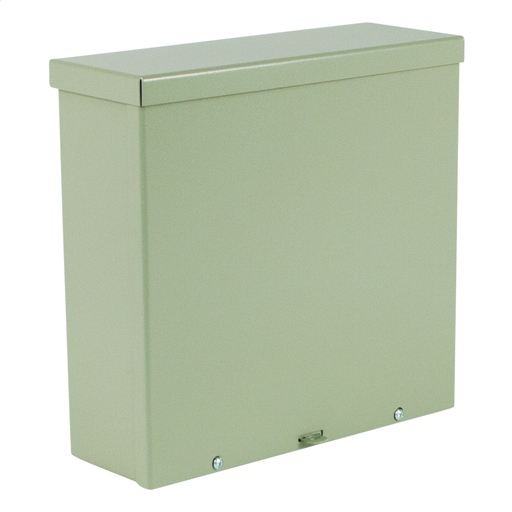

N3R Screw-Cover Wall-Mount No Knockouts 6X8X4 Carbon Steel - Gray
HESCO Part Number
WIERSC060804NK
UPC
786725865178
Manufacturer Part Number
RSC060804NK
Manufacturer
Wiegmann
N3R Screw-Cover Wall-Mount No Knockouts 6X8X4 Carbon Steel - Gray
MFG #RSC060804NK
Product Description:
N3R Screw-Cover Wall-Mount No Knockouts 6X8X4 Carbon Steel - Gray
HESCO Part Number
WIERSC060804NK
UPC
786725865178
Manufacturer Part Number
RSC060804NK
Manufacturer
Wiegmann
$57.06Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Bodies and doors fabricated from 16 gauge carbon steel
- Drop shiled top and smooth seamless sides and front
- A slip-on reversible cover is securely fastened with screws located along botoom edge
- No gasketing is required
- Hasp for padlocking or meter seal is provided
Specifications
| Buy American Compliant | :Â Â | Contact Manufacturer |
| Country of Origin | :Â Â | MX |
| Each - Width | :Â Â | 9.200 in |
| Application | :Â Â | Designed for use as wiring boxes and junction boxes. Provide protection in outdoor applications against rain, sleet, and snow, or indoors against dripping water. |
| Color | :Â Â | Ansi-61 Gray Textured |
| Cubic Capacity | :Â Â | 192 cu.in |
| Depth | :Â Â | 4 in |
| Height | :Â Â | 8 in |
| Mounting | :Â Â | Embossed Mounting Holes |
| NEMA Rating | :Â Â | 3R |
| Standard | :Â Â | cULus |
| Type | :Â Â | Enclosure |
| Width | :Â Â | 6 in |
| Weight | :Â Â | 4.9 lb. |
| Mounting Type | :Â Â | Embossed Mounting Holes |
| Nema Rating | :Â Â | 3R |
| ARRA Compliant | :Â Â | Contact Manufacturer |
| Class Code | :Â Â | P01 |
| Description - Invoice | :Â Â | RSC,RAINPROOF,N3R,CS,6X8X4, NK'S |
| Freight Class Code | :Â Â | 06316009 |
| Harmonization Code | :Â Â | 7326908688 |
| Image Actual Or Representative | :Â Â | R |
| Lead Time | :Â Â | 21 wk |
| MSDS Flag | :Â Â | No |
| Order Multiple | :Â Â | 1 EA |
| Returnable Indicator | :Â Â | Yes |
| Stock Indicator | :Â Â | S - Shelf Stock |
| Sub Class Code | :Â Â | P01P017 |
| UL Listed | :Â Â | Yes |
| Material | :Â Â | Carbon Steel |
| Base Unit of Measure | :Â Â | EA |
| BOX SIZE | :Â Â | 8.000x4.000x6.000 (in) |
| Carton - SCC-14 Next Lower Level Sub Pack | :Â Â | 00786725865178 |
Certifications | ||
| Certified Listed | :Â Â | cULus |
| EU RoHS Indicator | :Â Â | No |
| Listings | :Â Â | UL, CSA |
- Bodies and doors fabricated from 16 gauge carbon steel
- Drop shiled top and smooth seamless sides and front
- A slip-on reversible cover is securely fastened with screws located along botoom edge
- No gasketing is required
- Hasp for padlocking or meter seal is provided
Specifications
Buy American Compliant :Â Â Contact Manufacturer Country of Origin :Â Â MX Each - Width :Â Â 9.200 in Application :Â Â Designed for use as wiring boxes and junction boxes. Provide protection in outdoor applications against rain, sleet, and snow, or indoors against dripping water. Color :Â Â Ansi-61 Gray Textured Cubic Capacity :Â Â 192 cu.in Depth :Â Â 4 in Height :Â Â 8 in Mounting :Â Â Embossed Mounting Holes NEMA Rating :Â Â 3R Standard :Â Â cULus Type :Â Â Enclosure Width :Â Â 6 in Weight :Â Â 4.9 lb. Mounting Type :Â Â Embossed Mounting Holes Nema Rating :Â Â 3R ARRA Compliant :Â Â Contact Manufacturer Class Code :Â Â P01 Description - Invoice :Â Â RSC,RAINPROOF,N3R,CS,6X8X4, NK'S Freight Class Code :Â Â 06316009 Harmonization Code :Â Â 7326908688 Image Actual Or Representative :Â Â R Lead Time :Â Â 21 wk MSDS Flag :Â Â No Order Multiple :Â Â 1 EA Returnable Indicator :Â Â Yes Stock Indicator :Â Â S - Shelf Stock Sub Class Code :Â Â P01P017 UL Listed :Â Â Yes Material :Â Â Carbon Steel Base Unit of Measure :Â Â EA BOX SIZE :Â Â 8.000x4.000x6.000 (in) Carton - SCC-14 Next Lower Level Sub Pack :Â Â 00786725865178 Certifications
Certified Listed :Â Â cULus EU RoHS Indicator :Â Â No Listings :Â Â UL, CSA - Downloads
Spec SheetMSDS
STEP 3D Model Asset ReferenceCatalog Full Asset ReferenceCustomer Notices Asset ReferenceSales Drawing Asset ReferenceTerms and Conditions Asset ReferenceRSC060804NK-S.dxf
