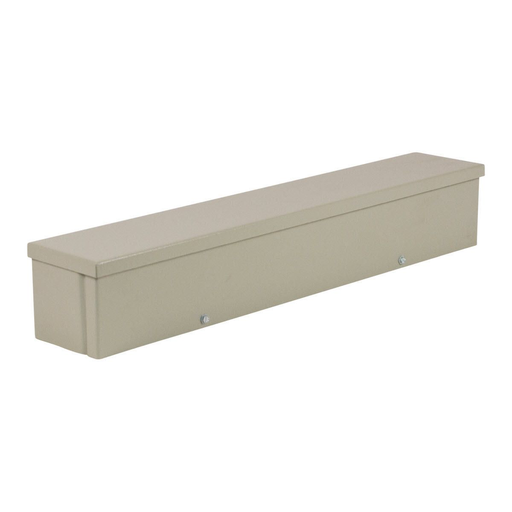

N3R Gutter 10X10X60 Carbon Steel - Gray
MFG #RSCG101060
$461.32Â /Â E
EACH
EACH
Product Description:
N3R Gutter 10X10X60 Carbon Steel - Gray
HESCO Part Number
WIERSCG101060
UPC
786725874989
Manufacturer Part Number
RSCG101060
Manufacturer
Wiegmann
N3R Gutter 10X10X60 Carbon Steel - Gray
MFG #RSCG101060
Product Description:
N3R Gutter 10X10X60 Carbon Steel - Gray
HESCO Part Number
WIERSCG101060
UPC
786725874989
Manufacturer Part Number
RSCG101060
Manufacturer
Wiegmann
$461.32Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Trough and cover fabricated from 16 gauge carbon steel
- Drip shield top and smooth seamless sides, front and back, prevent rain, snow and sleet from entering the enclosure
- Embossed mounting holes are conveniently located on the back
- A slip-on removable cover is securely fastened with screws located along the bottom edge
- Knockouts are provided on bottom of enclosure
Specifications
| Actual Depth | :Â Â | 60.13 in |
| Actual Height | :Â Â | 10.060 in |
| Buy American Compliant | :Â Â | Contact Manufacturer |
| Country of Origin | :Â Â | MX |
| Each - Width | :Â Â | 10.060 in |
| Application | :Â Â | Designed to protect wiring in outdoor installations against rain, sleet and snow, or indoors against dripping water. |
| Cable Entry | :Â Â | Knock Outs |
| Color | :Â Â | Ansi-61 Gray Textured |
| Cubic Capacity | :Â Â | 6000 cu.in |
| Depth | :Â Â | 60 in |
| Height | :Â Â | 10 in |
| Mounting | :Â Â | Embossed Mounting Holes |
| NEMA Rating | :Â Â | 3R |
| Standard | :Â Â | cULus |
| Type | :Â Â | Gutter |
| Width | :Â Â | 10 in |
| Weight | :Â Â | 31 lb. |
| Mounting Type | :Â Â | Embossed Mounting Holes |
| Nema Rating | :Â Â | 3R |
| ARRA Compliant | :Â Â | Contact Manufacturer |
| Class Code | :Â Â | P01 |
| Description - Invoice | :Â Â | RSC,GUTTER,NEMA3R,CS,10X10X60 |
| Freight Class Code | :Â Â | 06316009 |
| Harmonization Code | :Â Â | 7326908688 |
| Image Actual Or Representative | :Â Â | R |
| MSDS Flag | :Â Â | No |
| Order Multiple | :Â Â | 1 EA |
| Returnable Indicator | :Â Â | Yes |
| Stock Indicator | :Â Â | S - Shelf Stock |
| Sub Class Code | :Â Â | P01P003 |
| UL Listed | :Â Â | Yes |
| Material | :Â Â | Carbon Steel |
| Base Unit of Measure | :Â Â | EA |
| BOX SIZE | :Â Â | 10.060x60.130x10.060 (in) |
| Carton - SCC-14 Next Lower Level Sub Pack | :Â Â | 00786725874989 |
Certifications | ||
| Certified Listed | :Â Â | cULus |
| EU RoHS Indicator | :Â Â | Yes |
| Listings | :Â Â | UL, CSA |
- Trough and cover fabricated from 16 gauge carbon steel
- Drip shield top and smooth seamless sides, front and back, prevent rain, snow and sleet from entering the enclosure
- Embossed mounting holes are conveniently located on the back
- A slip-on removable cover is securely fastened with screws located along the bottom edge
- Knockouts are provided on bottom of enclosure
Specifications
Actual Depth :Â Â 60.13 in Actual Height :Â Â 10.060 in Buy American Compliant :Â Â Contact Manufacturer Country of Origin :Â Â MX Each - Width :Â Â 10.060 in Application :Â Â Designed to protect wiring in outdoor installations against rain, sleet and snow, or indoors against dripping water. Cable Entry :Â Â Knock Outs Color :Â Â Ansi-61 Gray Textured Cubic Capacity :Â Â 6000 cu.in Depth :Â Â 60 in Height :Â Â 10 in Mounting :Â Â Embossed Mounting Holes NEMA Rating :Â Â 3R Standard :Â Â cULus Type :Â Â Gutter Width :Â Â 10 in Weight :Â Â 31 lb. Mounting Type :Â Â Embossed Mounting Holes Nema Rating :Â Â 3R ARRA Compliant :Â Â Contact Manufacturer Class Code :Â Â P01 Description - Invoice :Â Â RSC,GUTTER,NEMA3R,CS,10X10X60 Freight Class Code :Â Â 06316009 Harmonization Code :Â Â 7326908688 Image Actual Or Representative :Â Â R MSDS Flag :Â Â No Order Multiple :Â Â 1 EA Returnable Indicator :Â Â Yes Stock Indicator :Â Â S - Shelf Stock Sub Class Code :Â Â P01P003 UL Listed :Â Â Yes Material :Â Â Carbon Steel Base Unit of Measure :Â Â EA BOX SIZE :Â Â 10.060x60.130x10.060 (in) Carton - SCC-14 Next Lower Level Sub Pack :Â Â 00786725874989 Certifications
Certified Listed :Â Â cULus EU RoHS Indicator :Â Â Yes Listings :Â Â UL, CSA - Downloads
Spec SheetMSDS
STEP 3D Model Asset ReferenceCatalog Full Asset ReferenceCustomer Notices Asset ReferenceSales Drawing Asset ReferenceTerms and Conditions Asset ReferenceHWDRSCG101060-S.dxf
