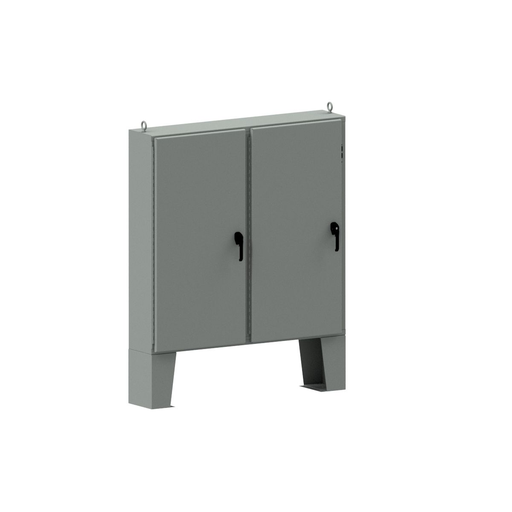

N4X Two Door Floor-Mount Right Flanged Disconnect 60X49X18 304 Stainless Steel
MFG #WA60X4918SSN4
$19,367.24Â /Â E
EACH
EACH
Product Description:
N4X Two Door Floor-Mount Right Flanged Disconnect 60X49X18 304 Stainless Steel
HESCO Part Number
WIEWA60X4918SSN4
UPC
786725869619
Manufacturer Part Number
WA60X4918SSN4
Manufacturer
Wiegmann
N4X Two Door Floor-Mount Right Flanged Disconnect 60X49X18 304 Stainless Steel
MFG #WA60X4918SSN4
Product Description:
N4X Two Door Floor-Mount Right Flanged Disconnect 60X49X18 304 Stainless Steel
HESCO Part Number
WIEWA60X4918SSN4
UPC
786725869619
Manufacturer Part Number
WA60X4918SSN4
Manufacturer
Wiegmann
$19,367.24Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Designed for indoor use in protecting components from dust, dirt, oil and water
- Punching in right flange (WAXU) or center post (WACPXU) to house the following disconnect operating handles with appropriate adaptor plate: Allen-Bradley Bulletin 1494V, ABB, Cutler-Hammer/Westinghouse type C361 and Type C371, General Electric Type STDA and Spectra Flex, I-T-E Max-Flex, and Square D Class Class9422 variable depth and cable mechanisms.
Specifications
| Actual Depth | :Â Â | 18.12 in |
| Actual Height | :Â Â | 60.120 in |
| Actual Width | :Â Â | 49.750 in |
| Buy American Compliant | :Â Â | Contact Manufacturer |
| Country of Origin | :Â Â | US |
| Each - Width | :Â Â | 49.750 in |
| Number of Doors (Fixed) | :Â Â | 2 |
| Application | :Â Â | Enclosures having the "WM" preferred cutout are sized for use with up to 200A disconnect switches and up to 400A circuit breakers unless otherwise specified. The "WM" preferred cutout accepts the smaller operating handle whose mounting hole centers are 4. |
| Cubic Capacity | :Â Â | 54000 cu.in |
| Depth | :Â Â | 18 in |
| Height | :Â Â | 60 in |
| Mounting | :Â Â | 15 in High Floor Stand Kit |
| NEMA Rating | :Â Â | 4X |
| Standard | :Â Â | cULus |
| Type | :Â Â | Enclosure |
| Width | :Â Â | 50 in |
| Weight | :Â Â | 535 lb. |
| Mounting Type | :Â Â | 15 in High Floor Stand Kit |
| Nema Rating | :Â Â | 4X |
| ARRA Compliant | :Â Â | Contact Manufacturer |
| Class Code | :Â Â | P03 |
| Description - Invoice | :Â Â | DISC,FM,N4,2D,RF,60X49X18,304 SS |
| Freight Class Code | :Â Â | 06111001 |
| Harmonization Code | :Â Â | 7326908688 |
| Image Actual Or Representative | :Â Â | R |
| Lead Time | :Â Â | 21 wk |
| MSDS Flag | :Â Â | No |
| Order Multiple | :Â Â | 1 EA |
| Returnable Indicator | :Â Â | Yes |
| Stock Indicator | :Â Â | S - Shelf Stock |
| Sub Class Code | :Â Â | P03P055 |
| Latches Type | :Â Â | 3-Point Padlocking Handle |
| UL Listed | :Â Â | Yes |
| Construction | :Â Â | Continuously Welded Seams |
| Material | :Â Â | Stainless Steel |
| Base Unit of Measure | :Â Â | EA |
| BOX SIZE | :Â Â | 60.120x18.120x49.750 (in) |
| Carton - SCC-14 Next Lower Level Sub Pack | :Â Â | 00786725869619 |
Certifications | ||
| Certified Listed | :Â Â | cULus |
| EU RoHS Indicator | :Â Â | No |
| Listings | :Â Â | UL, CSA |
- Designed for indoor use in protecting components from dust, dirt, oil and water
- Punching in right flange (WAXU) or center post (WACPXU) to house the following disconnect operating handles with appropriate adaptor plate: Allen-Bradley Bulletin 1494V, ABB, Cutler-Hammer/Westinghouse type C361 and Type C371, General Electric Type STDA and Spectra Flex, I-T-E Max-Flex, and Square D Class Class9422 variable depth and cable mechanisms.
Specifications
Actual Depth :Â Â 18.12 in Actual Height :Â Â 60.120 in Actual Width :Â Â 49.750 in Buy American Compliant :Â Â Contact Manufacturer Country of Origin :Â Â US Each - Width :Â Â 49.750 in Number of Doors (Fixed) :Â Â 2 Application :Â Â Enclosures having the "WM" preferred cutout are sized for use with up to 200A disconnect switches and up to 400A circuit breakers unless otherwise specified. The "WM" preferred cutout accepts the smaller operating handle whose mounting hole centers are 4. Cubic Capacity :Â Â 54000 cu.in Depth :Â Â 18 in Height :Â Â 60 in Mounting :Â Â 15 in High Floor Stand Kit NEMA Rating :Â Â 4X Standard :Â Â cULus Type :Â Â Enclosure Width :Â Â 50 in Weight :Â Â 535 lb. Mounting Type :Â Â 15 in High Floor Stand Kit Nema Rating :Â Â 4X ARRA Compliant :Â Â Contact Manufacturer Class Code :Â Â P03 Description - Invoice :Â Â DISC,FM,N4,2D,RF,60X49X18,304 SS Freight Class Code :Â Â 06111001 Harmonization Code :Â Â 7326908688 Image Actual Or Representative :Â Â R Lead Time :Â Â 21 wk MSDS Flag :Â Â No Order Multiple :Â Â 1 EA Returnable Indicator :Â Â Yes Stock Indicator :Â Â S - Shelf Stock Sub Class Code :Â Â P03P055 Latches Type :Â Â 3-Point Padlocking Handle UL Listed :Â Â Yes Construction :Â Â Continuously Welded Seams Material :Â Â Stainless Steel Base Unit of Measure :Â Â EA BOX SIZE :Â Â 60.120x18.120x49.750 (in) Carton - SCC-14 Next Lower Level Sub Pack :Â Â 00786725869619 Certifications
Certified Listed :Â Â cULus EU RoHS Indicator :Â Â No Listings :Â Â UL, CSA - Downloads
Spec SheetMSDS
STEP 3D Model Asset ReferenceBrochure Asset ReferenceCatalog Full Asset ReferenceCustomer Notices Asset ReferenceSales Drawing Asset Reference 1Sales Drawing Asset Reference 2Terms and Conditions Asset ReferenceHWDWA60X4918SSN4-S.dxf
