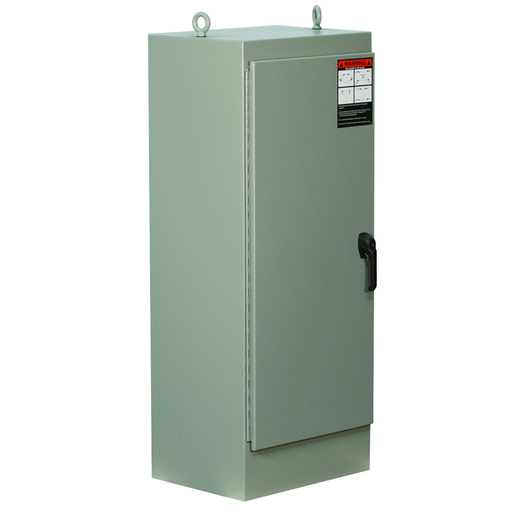

N12 Single Door Freestanding 72X30X18 Carbon Steel - Gray
MFG #WA723018FS
$3,210.97Â /Â E
EACH
EACH
Product Description:
N12 Single Door Freestanding 72X30X18 Carbon Steel - Gray
HESCO Part Number
WIEWA723018FS
UPC
786725417155
Manufacturer Part Number
WA723018FS
Manufacturer
Wiegmann
N12 Single Door Freestanding 72X30X18 Carbon Steel - Gray
MFG #WA723018FS
Product Description:
N12 Single Door Freestanding 72X30X18 Carbon Steel - Gray
HESCO Part Number
WIEWA723018FS
UPC
786725417155
Manufacturer Part Number
WA723018FS
Manufacturer
Wiegmann
$3,210.97Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Designed to protect electrical and electronic controls, components and instruments in typical industrial environments
- Enclosure protects enclosed equipment from dust, dirt, oil and dripping water
- These enclosures are used in machine tool applications for housing motor starters, drivers, contactors, PLC's, as well as a wide variety of other electrical and electronic equipment found in automotive, pulp and paper, wood products, textile and similar industries.
Certifications
| Certified Listed | :Â Â | cULus |
| EU RoHS Indicator | :Â Â | Yes |
| Listings | :Â Â | UL, CSA |
Specifications | ||
| Actual Depth | :Â Â | 18.12 in |
| Actual Height | :Â Â | 72.120 in |
| Actual Width | :Â Â | 30.12 in |
| Buy American Compliant | :Â Â | Contact Manufacturer |
| Country of Origin | :Â Â | US |
| Each - Width | :Â Â | 30.120 in |
| Number of Doors (Fixed) | :Â Â | 1 |
| Application | :Â Â | Designed to protect electronic controls, components and instruments in typical industrial environments from dust, dirt, oil and dripping water. These enclosures are used in machine tool applications for housing motor startes, drives, contactors, PLC's as well as a wide variety of other electrical and electronic equipment. The addition of 19-inch rack mounting accessories make these enclosures ideal for providing rugged protection for sensitive rack mounted components in harsh industrial environments. The enclosures are found extensively in automotive, pulp and paper, wood products, textile and similar industries. |
| Color | :Â Â | Ansi-61 Gray Textured |
| Cover Type | :Â Â | Door |
| Cubic Capacity | :Â Â | 38880 cu.in |
| Depth | :Â Â | 18 in |
| Height | :Â Â | 72 in |
| Mounting | :Â Â | Freestanding |
| NEMA Rating | :Â Â | 12 |
| Standard | :Â Â | cULus |
| Type | :Â Â | Enclosure |
| Width | :Â Â | 30 in |
| Weight | :Â Â | 335 lb. |
| Mounting Type | :Â Â | Freestanding |
| Nema Rating | :Â Â | 12 |
| ARRA Compliant | :Â Â | Contact Manufacturer |
| Class Code | :Â Â | P02 |
| Description - Invoice | :Â Â | ENCL,NEMA12,FS,1D,72X30X18 |
| Freight Class Code | :Â Â | 06111001 |
| Harmonization Code | :Â Â | 7326908688 |
| Image Actual Or Representative | :Â Â | R |
| Lead Time | :Â Â | 21 wk |
| MSDS Flag | :Â Â | No |
| Order Multiple | :Â Â | 1 EA |
| Returnable Indicator | :Â Â | Yes |
| Stock Indicator | :Â Â | S - Shelf Stock |
| Sub Class Code | :Â Â | P02P034 |
| Latches Type | :Â Â | 3 Point Keylocking-Padlocking Combo |
| UL Listed | :Â Â | Yes |
| Construction | :Â Â | Continuously Welded Seams |
| Material | :Â Â | Carbon Steel |
| Base Unit of Measure | :Â Â | EA |
| BOX SIZE | :Â Â | 72.120x18.120x30.120 (in) |
| Carton - Gross Weight per Pack | :Â Â | 285.000 lb. |
| Carton - Number of Sub Packs | :Â Â | 1 |
| Carton - Pack Description | :Â Â | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | :Â Â | 00786725417155 |
| Carton - Total Units | :Â Â | 1 EA |
| Pallet Weight | :Â Â | 0.000 lb. |
- Designed to protect electrical and electronic controls, components and instruments in typical industrial environments
- Enclosure protects enclosed equipment from dust, dirt, oil and dripping water
- These enclosures are used in machine tool applications for housing motor starters, drivers, contactors, PLC's, as well as a wide variety of other electrical and electronic equipment found in automotive, pulp and paper, wood products, textile and similar industries.
Certifications
Certified Listed :Â Â cULus EU RoHS Indicator :Â Â Yes Listings :Â Â UL, CSA Specifications
Actual Depth :Â Â 18.12 in Actual Height :Â Â 72.120 in Actual Width :Â Â 30.12 in Buy American Compliant :Â Â Contact Manufacturer Country of Origin :Â Â US Each - Width :Â Â 30.120 in Number of Doors (Fixed) :Â Â 1 Application :Â Â Designed to protect electronic controls, components and instruments in typical industrial environments from dust, dirt, oil and dripping water. These enclosures are used in machine tool applications for housing motor startes, drives, contactors, PLC's as well as a wide variety of other electrical and electronic equipment. The addition of 19-inch rack mounting accessories make these enclosures ideal for providing rugged protection for sensitive rack mounted components in harsh industrial environments. The enclosures are found extensively in automotive, pulp and paper, wood products, textile and similar industries. Color :Â Â Ansi-61 Gray Textured Cover Type :Â Â Door Cubic Capacity :Â Â 38880 cu.in Depth :Â Â 18 in Height :Â Â 72 in Mounting :Â Â Freestanding NEMA Rating :Â Â 12 Standard :Â Â cULus Type :Â Â Enclosure Width :Â Â 30 in Weight :Â Â 335 lb. Mounting Type :Â Â Freestanding Nema Rating :Â Â 12 ARRA Compliant :Â Â Contact Manufacturer Class Code :Â Â P02 Description - Invoice :Â Â ENCL,NEMA12,FS,1D,72X30X18 Freight Class Code :Â Â 06111001 Harmonization Code :Â Â 7326908688 Image Actual Or Representative :Â Â R Lead Time :Â Â 21 wk MSDS Flag :Â Â No Order Multiple :Â Â 1 EA Returnable Indicator :Â Â Yes Stock Indicator :Â Â S - Shelf Stock Sub Class Code :Â Â P02P034 Latches Type :Â Â 3 Point Keylocking-Padlocking Combo UL Listed :Â Â Yes Construction :Â Â Continuously Welded Seams Material :Â Â Carbon Steel Base Unit of Measure :Â Â EA BOX SIZE :Â Â 72.120x18.120x30.120 (in) Carton - Gross Weight per Pack :Â Â 285.000 lb. Carton - Number of Sub Packs :Â Â 1 Carton - Pack Description :Â Â Carton Carton - SCC-14 Next Lower Level Sub Pack :Â Â 00786725417155 Carton - Total Units :Â Â 1 EA Pallet Weight :Â Â 0.000 lb. - Downloads
Spec SheetMSDS
STEP 3D Model Asset Reference 1STEP 3D Model Asset Reference 2Catalog Full Asset ReferenceCustomer Notices Asset ReferenceSales Drawing Asset ReferenceTerms and Conditions Asset ReferenceHWDWA723018FS-S.dxf
