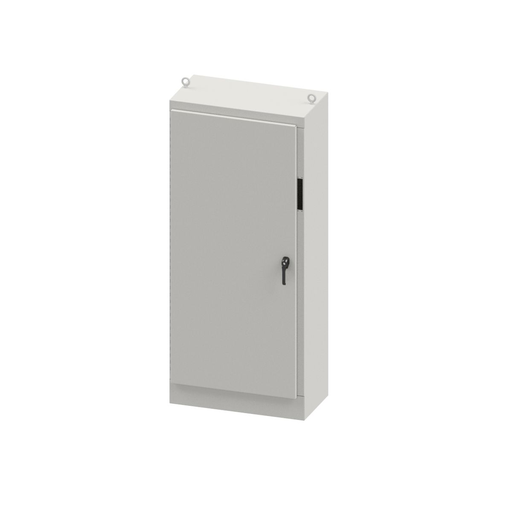

N12 Single Door Right Flanged Disconncet 72X39.5X18 Carbon Steel - Gray
MFG #WA72XM3918U
$5,521.72Â /Â E
EACH
EACH
Product Description:
N12 Single Door Right Flanged Disconncet 72X39.5X18 Carbon Steel - Gray
HESCO Part Number
WIEWA72XM3918U
UPC
786725415847
Manufacturer Part Number
WA72XM3918U
Manufacturer
Wiegmann
N12 Single Door Right Flanged Disconncet 72X39.5X18 Carbon Steel - Gray
MFG #WA72XM3918U
Product Description:
N12 Single Door Right Flanged Disconncet 72X39.5X18 Carbon Steel - Gray
HESCO Part Number
WIEWA72XM3918U
UPC
786725415847
Manufacturer Part Number
WA72XM3918U
Manufacturer
Wiegmann
$5,521.72Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Designed for indoor use in protecting components from dust, dirt, oil and water
- Punching in right flange to house the following disconnect operating handles with appropriate adaptor plate: Allen-Bradley Bulletin 1494V, ABB, Cutler-Hammer/Westinghouse type C361and Type C371, General Electric Type STDA and Spectra Flex, I-T-E Max-Flex, and Square D Class 9422 variable depth and cable mechanisms.
Specifications
| Actual Depth | :Â Â | 18.13 in |
| Actual Height | :Â Â | 72.130 in |
| Actual Width | :Â Â | 39.5 in |
| Buy American Compliant | :Â Â | Contact Manufacturer |
| Country of Origin | :Â Â | US |
| Each - Width | :Â Â | 39.500 in |
| Number of Doors (Fixed) | :Â Â | 1 |
| Application | :Â Â | The Wiegmann universal cutout is used in large freestand and floorstand enclosures. Operator Adapter Kits are required in order to install the various manufacturers' hardware. |
| Color | :Â Â | Ansi-61 Gray Textured |
| Cubic Capacity | :Â Â | 51840 cu.in |
| Depth | :Â Â | 18 in |
| Height | :Â Â | 72 in |
| Mounting | :Â Â | Freestanding |
| NEMA Rating | :Â Â | 12 |
| Standard | :Â Â | cULus |
| Type | :Â Â | Enclosure |
| Width | :Â Â | 40 in |
| Weight | :Â Â | 559 lb. |
| Mounting Type | :Â Â | Freestanding |
| Nema Rating | :Â Â | 12 |
| ARRA Compliant | :Â Â | Contact Manufacturer |
| Class Code | :Â Â | P02 |
| Description - Invoice | :Â Â | DISC,UN,HD,1D,FS,72X39.50X18 |
| Freight Class Code | :Â Â | 06111001 |
| Harmonization Code | :Â Â | 7326908688 |
| Image Actual Or Representative | :Â Â | R |
| Lead Time | :Â Â | 21 wk |
| MSDS Flag | :Â Â | No |
| Order Multiple | :Â Â | 1 EA |
| Returnable Indicator | :Â Â | Yes |
| Stock Indicator | :Â Â | S - Shelf Stock |
| Sub Class Code | :Â Â | P02P035 |
| Latches Type | :Â Â | 3-Point Padlocking Handle |
| UL Listed | :Â Â | Yes |
| Construction | :Â Â | Continuously Welded Seams |
| Material | :Â Â | Carbon Steel |
| Base Unit of Measure | :Â Â | EA |
| BOX SIZE | :Â Â | 72.130x18.130x39.500 (in) |
| Carton - Gross Weight per Pack | :Â Â | 559.000 lb. |
| Carton - Number of Sub Packs | :Â Â | 1 |
| Carton - Pack Description | :Â Â | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | :Â Â | 00786725415847 |
| Carton - Total Units | :Â Â | 1 EA |
| Pallet Weight | :Â Â | 0.000 lb. |
Certifications | ||
| Certified Listed | :Â Â | cULus |
| EU RoHS Indicator | :Â Â | No |
| Listings | :Â Â | UL, CSA |
- Designed for indoor use in protecting components from dust, dirt, oil and water
- Punching in right flange to house the following disconnect operating handles with appropriate adaptor plate: Allen-Bradley Bulletin 1494V, ABB, Cutler-Hammer/Westinghouse type C361and Type C371, General Electric Type STDA and Spectra Flex, I-T-E Max-Flex, and Square D Class 9422 variable depth and cable mechanisms.
Specifications
Actual Depth :Â Â 18.13 in Actual Height :Â Â 72.130 in Actual Width :Â Â 39.5 in Buy American Compliant :Â Â Contact Manufacturer Country of Origin :Â Â US Each - Width :Â Â 39.500 in Number of Doors (Fixed) :Â Â 1 Application :Â Â The Wiegmann universal cutout is used in large freestand and floorstand enclosures. Operator Adapter Kits are required in order to install the various manufacturers' hardware. Color :Â Â Ansi-61 Gray Textured Cubic Capacity :Â Â 51840 cu.in Depth :Â Â 18 in Height :Â Â 72 in Mounting :Â Â Freestanding NEMA Rating :Â Â 12 Standard :Â Â cULus Type :Â Â Enclosure Width :Â Â 40 in Weight :Â Â 559 lb. Mounting Type :Â Â Freestanding Nema Rating :Â Â 12 ARRA Compliant :Â Â Contact Manufacturer Class Code :Â Â P02 Description - Invoice :Â Â DISC,UN,HD,1D,FS,72X39.50X18 Freight Class Code :Â Â 06111001 Harmonization Code :Â Â 7326908688 Image Actual Or Representative :Â Â R Lead Time :Â Â 21 wk MSDS Flag :Â Â No Order Multiple :Â Â 1 EA Returnable Indicator :Â Â Yes Stock Indicator :Â Â S - Shelf Stock Sub Class Code :Â Â P02P035 Latches Type :Â Â 3-Point Padlocking Handle UL Listed :Â Â Yes Construction :Â Â Continuously Welded Seams Material :Â Â Carbon Steel Base Unit of Measure :Â Â EA BOX SIZE :Â Â 72.130x18.130x39.500 (in) Carton - Gross Weight per Pack :Â Â 559.000 lb. Carton - Number of Sub Packs :Â Â 1 Carton - Pack Description :Â Â Carton Carton - SCC-14 Next Lower Level Sub Pack :Â Â 00786725415847 Carton - Total Units :Â Â 1 EA Pallet Weight :Â Â 0.000 lb. Certifications
Certified Listed :Â Â cULus EU RoHS Indicator :Â Â No Listings :Â Â UL, CSA - Downloads
Spec SheetMSDS
STEP 3D Model Asset ReferenceCatalog Full Asset ReferenceCustomer Notices Asset ReferenceSales Drawing Asset ReferenceTerms and Conditions Asset ReferenceHWDWA72XM3918U-S.dxf
