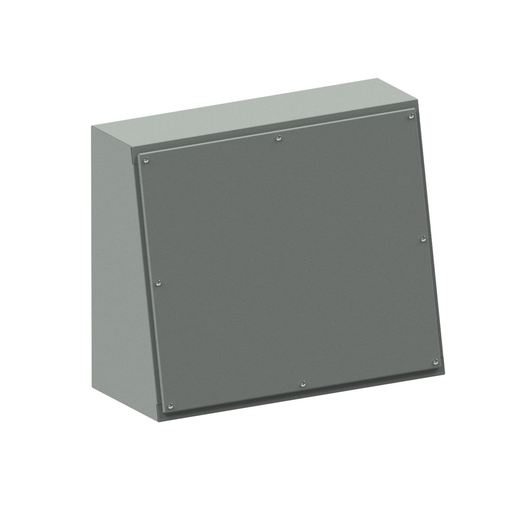

Top For Wc1248Bd Carbon Steel - Gray
MFG #WC1248T
$1,436.23Â /Â E
EACH
EACH
Product Description:
Top For Wc1248Bd Carbon Steel - Gray
HESCO Part Number
WIEWC1248T
UPC
786725443451
Manufacturer Part Number
WC1248T
Manufacturer
Wiegmann
Top For Wc1248Bd Carbon Steel - Gray
MFG #WC1248T
Product Description:
Top For Wc1248Bd Carbon Steel - Gray
HESCO Part Number
WIEWC1248T
UPC
786725443451
Manufacturer Part Number
WC1248T
Manufacturer
Wiegmann
$1,436.23Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Fabricated from carbon steel
- Seams are continuously welded and ground smooth
- Closed cell neoprene gasket included
- Fabricated from 14 gauge steel. Tops have a sloped front surface. Seams are continuously welded and ground smooth. Instrument and access panels have captive screws which thread into sealed well. 4 holes are provided in bottom of top for mounting to body. Closed cell neoprene gasket. Instrument panels and access panels are removable.
Specifications
| Actual Depth | :Â Â | 20.13 in |
| Actual Height | :Â Â | 6.120 in |
| Actual Width | :Â Â | 48.13 in |
| Buy American Compliant | :Â Â | Contact Manufacturer |
| Country of Origin | :Â Â | US |
| Each - Width | :Â Â | 48.130 in |
| Application | :Â Â | For use with WC1248BD console. |
| Color | :Â Â | Ansi-61 Gray Textured |
| Cubic Capacity | :Â Â | 5760 cu.in |
| Depth | :Â Â | 20 in |
| Height | :Â Â | 6 in |
| Mounting | :Â Â | Mounting Holes |
| NEMA Rating | :Â Â | 12 |
| Special Features | :Â Â | Fabricated from 14 gauge steel. Tops have a sloped front surface. Seams are continuously welded and ground smooth. Instrument and access panels have captive screws which thread into sealed well. 4 holes are provided in bottom of top for mounting to body. Closed cell neoprene gasket. Instrument panels and access panels are removable. |
| Standard | :Â Â | cULus |
| Type | :Â Â | Console Top |
| Width | :Â Â | 48 in |
| Weight | :Â Â | 75 lb. |
| Mounting Type | :Â Â | Mounting Holes |
| Nema Rating | :Â Â | 12 |
| ARRA Compliant | :Â Â | Contact Manufacturer |
| Class Code | :Â Â | P02 |
| Description - Invoice | :Â Â | CONSOLE,OT,CS,TOP ONLY |
| Freight Class Code | :Â Â | 06316009 |
| Harmonization Code | :Â Â | 7326908688 |
| Image Actual Or Representative | :Â Â | R |
| Lead Time | :Â Â | 21 wk |
| MSDS Flag | :Â Â | No |
| Order Multiple | :Â Â | 1 EA |
| Returnable Indicator | :Â Â | Yes |
| Stock Indicator | :Â Â | S - Shelf Stock |
| Sub Class Code | :Â Â | P02P036 |
| UL Listed | :Â Â | Yes |
| Material | :Â Â | Carbon Steel |
| Base Unit of Measure | :Â Â | EA |
| BOX SIZE | :Â Â | 6.120x20.130x48.130 (in) |
| Carton - Gross Weight per Pack | :Â Â | 75.000 lb. |
| Carton - Number of Sub Packs | :Â Â | 1 |
| Carton - Pack Description | :Â Â | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | :Â Â | 00786725443451 |
| Carton - Total Units | :Â Â | 1 EA |
Certifications | ||
| Certified Listed | :Â Â | cULus |
| EU RoHS Indicator | :Â Â | Yes |
| Listings | :Â Â | UL, CSA |
- Fabricated from carbon steel
- Seams are continuously welded and ground smooth
- Closed cell neoprene gasket included
- Fabricated from 14 gauge steel. Tops have a sloped front surface. Seams are continuously welded and ground smooth. Instrument and access panels have captive screws which thread into sealed well. 4 holes are provided in bottom of top for mounting to body. Closed cell neoprene gasket. Instrument panels and access panels are removable.
Specifications
Actual Depth :Â Â 20.13 in Actual Height :Â Â 6.120 in Actual Width :Â Â 48.13 in Buy American Compliant :Â Â Contact Manufacturer Country of Origin :Â Â US Each - Width :Â Â 48.130 in Application :Â Â For use with WC1248BD console. Color :Â Â Ansi-61 Gray Textured Cubic Capacity :Â Â 5760 cu.in Depth :Â Â 20 in Height :Â Â 6 in Mounting :Â Â Mounting Holes NEMA Rating :Â Â 12 Special Features :Â Â Fabricated from 14 gauge steel. Tops have a sloped front surface. Seams are continuously welded and ground smooth. Instrument and access panels have captive screws which thread into sealed well. 4 holes are provided in bottom of top for mounting to body. Closed cell neoprene gasket. Instrument panels and access panels are removable. Standard :Â Â cULus Type :Â Â Console Top Width :Â Â 48 in Weight :Â Â 75 lb. Mounting Type :Â Â Mounting Holes Nema Rating :Â Â 12 ARRA Compliant :Â Â Contact Manufacturer Class Code :Â Â P02 Description - Invoice :Â Â CONSOLE,OT,CS,TOP ONLY Freight Class Code :Â Â 06316009 Harmonization Code :Â Â 7326908688 Image Actual Or Representative :Â Â R Lead Time :Â Â 21 wk MSDS Flag :Â Â No Order Multiple :Â Â 1 EA Returnable Indicator :Â Â Yes Stock Indicator :Â Â S - Shelf Stock Sub Class Code :Â Â P02P036 UL Listed :Â Â Yes Material :Â Â Carbon Steel Base Unit of Measure :Â Â EA BOX SIZE :Â Â 6.120x20.130x48.130 (in) Carton - Gross Weight per Pack :Â Â 75.000 lb. Carton - Number of Sub Packs :Â Â 1 Carton - Pack Description :Â Â Carton Carton - SCC-14 Next Lower Level Sub Pack :Â Â 00786725443451 Carton - Total Units :Â Â 1 EA Certifications
Certified Listed :Â Â cULus EU RoHS Indicator :Â Â Yes Listings :Â Â UL, CSA - Downloads
Spec Sheet
MSDS
STEP 3D Model Asset Reference
Catalog Full Asset Reference
Customer Notices Asset Reference
Sales Drawing Asset Reference
Terms and Conditions Asset Reference
HWDWC1248T-S.dxf
