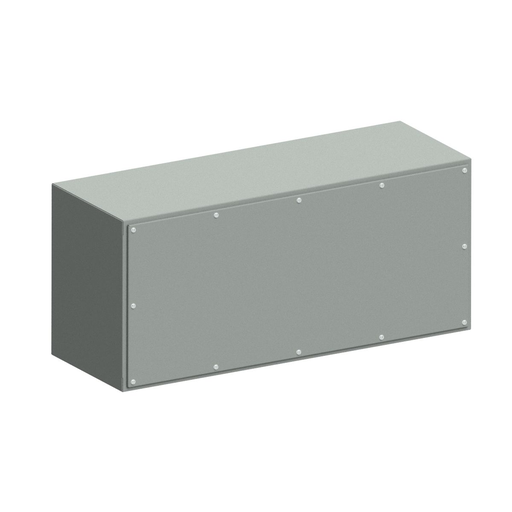

Top For WC1460BD Carbon Steel - Gray
MFG #WC1460T
$2,292.32Â /Â E
EACH
EACH
Product Description:
Top For WC1460BD Carbon Steel - Gray
HESCO Part Number
WIEWC1460T
UPC
786725444656
Manufacturer Part Number
WC1460T
Manufacturer
Wiegmann
Top For WC1460BD Carbon Steel - Gray
MFG #WC1460T
Product Description:
Top For WC1460BD Carbon Steel - Gray
HESCO Part Number
WIEWC1460T
UPC
786725444656
Manufacturer Part Number
WC1460T
Manufacturer
Wiegmann
$2,292.32Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Fabricated from 14 gauge steel. Top unit is 12.5" deep to accommodate most instruments. Seams are continuously welded and ground smooth, less knockouts or holes. Instrument and access panels have captivated screws which thread into sealed wells. 4 holes are provided in bottom of top for mounting to body. Instrument and access panels are removable. Closed cell neoprene gasket.
Specifications
| Actual Depth | :Â Â | 16.13 in |
| Actual Height | :Â Â | 12.630 in |
| Actual Width | :Â Â | 60.13 in |
| Buy American Compliant | :Â Â | Contact Manufacturer |
| Country of Origin | :Â Â | US |
| Each - Width | :Â Â | 60.130 in |
| Application | :Â Â | For use with WC1460BD console. |
| Color | :Â Â | Ansi-61 Gray Textured |
| Cubic Capacity | :Â Â | 12480 cu.in |
| Depth | :Â Â | 16 in |
| Height | :Â Â | 13 in |
| Mounting | :Â Â | Mounting Holes |
| NEMA Rating | :Â Â | 12 |
| Standard | :Â Â | cULus |
| Type | :Â Â | Console Top |
| Width | :Â Â | 60 in |
| Weight | :Â Â | 96 lb. |
| Mounting Type | :Â Â | Mounting Holes |
| Nema Rating | :Â Â | 12 |
| ARRA Compliant | :Â Â | Contact Manufacturer |
| Class Code | :Â Â | P02 |
| Description - Invoice | :Â Â | CONSOLE,OT,CS,TOP ONLY |
| Freight Class Code | :Â Â | 06316009 |
| Harmonization Code | :Â Â | 7326908688 |
| Image Actual Or Representative | :Â Â | R |
| Lead Time | :Â Â | 21 wk |
| MSDS Flag | :Â Â | No |
| Order Multiple | :Â Â | 1 EA |
| Returnable Indicator | :Â Â | Yes |
| Stock Indicator | :Â Â | S - Shelf Stock |
| Sub Class Code | :Â Â | P02P036 |
| UL Listed | :Â Â | Yes |
| Material | :Â Â | Carbon Steel |
| Base Unit of Measure | :Â Â | EA |
| BOX SIZE | :Â Â | 12.630x16.130x60.130 (in) |
| Carton - Gross Weight per Pack | :Â Â | 96.000 lb. |
| Carton - Number of Sub Packs | :Â Â | 1 |
| Carton - Pack Description | :Â Â | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | :Â Â | 00786725444656 |
| Carton - Total Units | :Â Â | 1 |
Certifications | ||
| Certified Listed | :Â Â | cULus |
| EU RoHS Indicator | :Â Â | Yes |
| Listings | :Â Â | UL, CSA |
- Fabricated from 14 gauge steel. Top unit is 12.5" deep to accommodate most instruments. Seams are continuously welded and ground smooth, less knockouts or holes. Instrument and access panels have captivated screws which thread into sealed wells. 4 holes are provided in bottom of top for mounting to body. Instrument and access panels are removable. Closed cell neoprene gasket.
Specifications
Actual Depth :Â Â 16.13 in Actual Height :Â Â 12.630 in Actual Width :Â Â 60.13 in Buy American Compliant :Â Â Contact Manufacturer Country of Origin :Â Â US Each - Width :Â Â 60.130 in Application :Â Â For use with WC1460BD console. Color :Â Â Ansi-61 Gray Textured Cubic Capacity :Â Â 12480 cu.in Depth :Â Â 16 in Height :Â Â 13 in Mounting :Â Â Mounting Holes NEMA Rating :Â Â 12 Standard :Â Â cULus Type :Â Â Console Top Width :Â Â 60 in Weight :Â Â 96 lb. Mounting Type :Â Â Mounting Holes Nema Rating :Â Â 12 ARRA Compliant :Â Â Contact Manufacturer Class Code :Â Â P02 Description - Invoice :Â Â CONSOLE,OT,CS,TOP ONLY Freight Class Code :Â Â 06316009 Harmonization Code :Â Â 7326908688 Image Actual Or Representative :Â Â R Lead Time :Â Â 21 wk MSDS Flag :Â Â No Order Multiple :Â Â 1 EA Returnable Indicator :Â Â Yes Stock Indicator :Â Â S - Shelf Stock Sub Class Code :Â Â P02P036 UL Listed :Â Â Yes Material :Â Â Carbon Steel Base Unit of Measure :Â Â EA BOX SIZE :Â Â 12.630x16.130x60.130 (in) Carton - Gross Weight per Pack :Â Â 96.000 lb. Carton - Number of Sub Packs :Â Â 1 Carton - Pack Description :Â Â Carton Carton - SCC-14 Next Lower Level Sub Pack :Â Â 00786725444656 Carton - Total Units :Â Â 1 Certifications
Certified Listed :Â Â cULus EU RoHS Indicator :Â Â Yes Listings :Â Â UL, CSA - Downloads
Spec SheetMSDS
STEP 3D Model Asset ReferenceCatalog Full Asset ReferenceCustomer Notices Asset ReferenceSales Drawing Asset ReferenceTerms and Conditions Asset ReferenceHWDWC1460T-S.dxf
