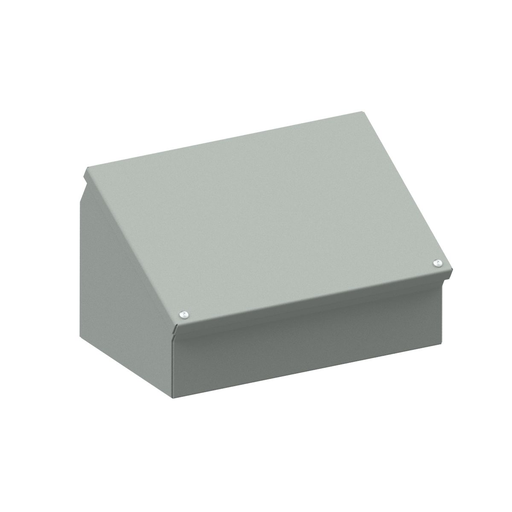

N12 Operator Interface Consolet 16X16 Carbon Steel - Gray
MFG #WC16C16
$435.88Â /Â E
EACH
EACH
Product Description:
N12 Operator Interface Consolet 16X16 Carbon Steel - Gray
HESCO Part Number
WIEWC16C16
UPC
786725441402
Manufacturer Part Number
WC16C16
Manufacturer
Wiegmann
N12 Operator Interface Consolet 16X16 Carbon Steel - Gray
MFG #WC16C16
Product Description:
N12 Operator Interface Consolet 16X16 Carbon Steel - Gray
HESCO Part Number
WIEWC16C16
UPC
786725441402
Manufacturer Part Number
WC16C16
Manufacturer
Wiegmann
$435.88Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Fabricated from carbon steel
- Seams are continuously welded and ground smooth
- Grounding provisions
- Bodies and doors fabricated from 14 gauge steel. Continuously welded seams ground smooth, less knockouts or holes. Captive cover screws thread into sealed wells. Control panel is continuously hinged along bottom edge. Closed cell oil resistant neoprene gasket. Grounding provisions included.
Specifications
| Actual Depth | :Â Â | 11.09 in |
| Buy American Compliant | :Â Â | Contact Manufacturer |
| Country of Origin | :Â Â | US |
| Each - Width | :Â Â | 16.900 in |
| Application | :Â Â | Designed to house a variety of electronic control or instrumentation devices. Consolets provide protection from dust, dirt, oil, and water. Flexible design allows for mounting on either of two sides, creating control surfaces of 30 degrees or 60 degrees. |
| Color | :Â Â | Ansi-61 Gray Smooth |
| Cubic Capacity | :Â Â | 2816 cu.in |
| Depth | :Â Â | 11 in |
| Height | :Â Â | 16 in |
| NEMA Rating | :Â Â | 12 |
| Special Features | :Â Â | Bodies and doors fabricated from 14 gauge steel. Continuously welded seams ground smooth, less knockouts or holes. Captive cover screws thread into sealed wells. Control panel is continuously hinged along bottom edge. Closed cell oil resistant neoprene gasket. Grounding provisions included. |
| Standard | :Â Â | cULus |
| Type | :Â Â | Consolets |
| Width | :Â Â | 16 in |
| Weight | :Â Â | 25 lb. |
| Nema Rating | :Â Â | 12 |
| ARRA Compliant | :Â Â | Contact Manufacturer |
| Class Code | :Â Â | P04 |
| Description - Invoice | :Â Â | CONSOLETS,OIL-TIGHT,CS,16X16 |
| Freight Class Code | :Â Â | 06316009 |
| Harmonization Code | :Â Â | 7326908688 |
| Image Actual Or Representative | :Â Â | R |
| Lead Time | :Â Â | 21 wk |
| MSDS Flag | :Â Â | No |
| Order Multiple | :Â Â | 1 EA |
| Returnable Indicator | :Â Â | Yes |
| Stock Indicator | :Â Â | S - Shelf Stock |
| Sub Class Code | :Â Â | P04P069 |
| UL Listed | :Â Â | Yes |
| Material | :Â Â | Carbon Steel |
| Base Unit of Measure | :Â Â | EA |
| BOX SIZE | :Â Â | 16.000x11.090x16.000 (in) |
| Carton - Gross Weight per Pack | :Â Â | 25.000 lb. |
| Carton - Number of Sub Packs | :Â Â | 1 |
| Carton - Pack Description | :Â Â | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | :Â Â | 00786725441402 |
| Carton - Total Units | :Â Â | 1 EA |
Certifications | ||
| Certified Listed | :Â Â | cULus |
| EU RoHS Indicator | :Â Â | Yes |
| Listings | :Â Â | UL, CSA |
- Fabricated from carbon steel
- Seams are continuously welded and ground smooth
- Grounding provisions
- Bodies and doors fabricated from 14 gauge steel. Continuously welded seams ground smooth, less knockouts or holes. Captive cover screws thread into sealed wells. Control panel is continuously hinged along bottom edge. Closed cell oil resistant neoprene gasket. Grounding provisions included.
Specifications
Actual Depth :Â Â 11.09 in Buy American Compliant :Â Â Contact Manufacturer Country of Origin :Â Â US Each - Width :Â Â 16.900 in Application :Â Â Designed to house a variety of electronic control or instrumentation devices. Consolets provide protection from dust, dirt, oil, and water. Flexible design allows for mounting on either of two sides, creating control surfaces of 30 degrees or 60 degrees. Color :Â Â Ansi-61 Gray Smooth Cubic Capacity :Â Â 2816 cu.in Depth :Â Â 11 in Height :Â Â 16 in NEMA Rating :Â Â 12 Special Features :Â Â Bodies and doors fabricated from 14 gauge steel. Continuously welded seams ground smooth, less knockouts or holes. Captive cover screws thread into sealed wells. Control panel is continuously hinged along bottom edge. Closed cell oil resistant neoprene gasket. Grounding provisions included. Standard :Â Â cULus Type :Â Â Consolets Width :Â Â 16 in Weight :Â Â 25 lb. Nema Rating :Â Â 12 ARRA Compliant :Â Â Contact Manufacturer Class Code :Â Â P04 Description - Invoice :Â Â CONSOLETS,OIL-TIGHT,CS,16X16 Freight Class Code :Â Â 06316009 Harmonization Code :Â Â 7326908688 Image Actual Or Representative :Â Â R Lead Time :Â Â 21 wk MSDS Flag :Â Â No Order Multiple :Â Â 1 EA Returnable Indicator :Â Â Yes Stock Indicator :Â Â S - Shelf Stock Sub Class Code :Â Â P04P069 UL Listed :Â Â Yes Material :Â Â Carbon Steel Base Unit of Measure :Â Â EA BOX SIZE :Â Â 16.000x11.090x16.000 (in) Carton - Gross Weight per Pack :Â Â 25.000 lb. Carton - Number of Sub Packs :Â Â 1 Carton - Pack Description :Â Â Carton Carton - SCC-14 Next Lower Level Sub Pack :Â Â 00786725441402 Carton - Total Units :Â Â 1 EA Certifications
Certified Listed :Â Â cULus EU RoHS Indicator :Â Â Yes Listings :Â Â UL, CSA - Downloads
