Hubbell Wiring Device

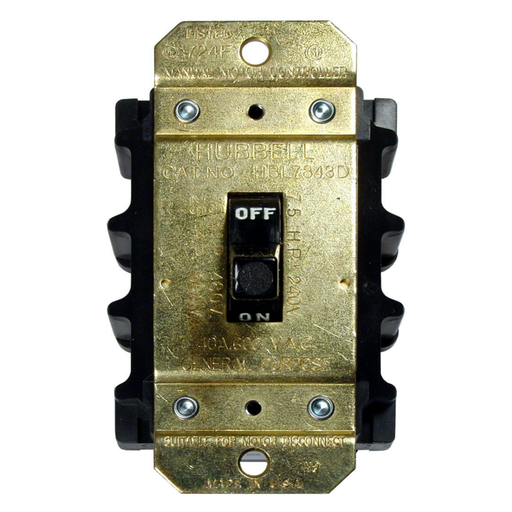

Switches and Lighting Control, Motor Disconnect, 2-Pole, 40A 600V, Back and Side Wired, Short Toggle
MFG #HBL7842D
$109.00 / E
EACH
EACH
Product Description:
Switches and Lighting Control, Motor Disconnect, 2-Pole, 40A 600V, Back and Side Wired, Short Toggle
HESCO Part Number
HUBHBL7842D
UPC
783585202846
Manufacturer Part Number
HBL7842D
Manufacturer
Hubbell Wiring Device
Hubbell Wiring Device
Switches and Lighting Control, Motor Disconnect, 2-Pole, 40A 600V, Back and Side Wired, Short Toggle
MFG #HBL7842D
Product Description:
Switches and Lighting Control, Motor Disconnect, 2-Pole, 40A 600V, Back and Side Wired, Short Toggle
HESCO Part Number
HUBHBL7842D
UPC
783585202846
Manufacturer Part Number
HBL7842D
Manufacturer
Hubbell Wiring Device
$109.00 / E
EACH
EACH
- Features
- Specifications
- Resources
- Optional side guard for close wall applications
- Strong on/off action with quick-make slow break operation
- Thermoset body provides superior dielectric strength
- Standard Product
Specifications
| Country of Origin | : | US |
| Current / Amperage Rating | : | 40 A |
| Width | : | 2.400 in |
| Each - Width | : | 2.400 in |
| Horsepower - Maximum | : | 15 |
| Industry Standard(s) | : | CSA-C22.2 No.14 Industrial Control File LR-46186;UL 508, Industrial Control File #E70402 |
| Performance | : | Electrical - Dielectric Voltage - Min. 2,200V AC minimum for 1 minute;Electrical - Electrical Life - Min. 6,000 Cycles at rated switch load;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94HB/VO;Environmental - Operating Temperature - Max. 75°C,Min. -40°C continuous w/o impact;Mechanical - Mechanical Life - Min. 10,000 minimum cycles;Mechanical - Switch Rating - 25 inch pounds;Mechanical - Terminal Accommodations - #10 AWG Max;Mechanical - Terminal Torque - 20 inch pounds;Mechanical - Wire Type - Solid and stranded copper wire only |
| Standards - RoHS Compliance Status | : | CM |
| Current Rating | : | 40 |
| Number of Poles | : | 2 Pole |
| Special Features | : | Standard Product |
| Standard | : | CSA-C22.2 No.14 Industrial Control File LR-46186;UL 508, Industrial Control File #E70402 |
| Type | : | Side Wire |
| Voltage Rating | : | 600 VAC |
| Voltage Rating Description | : | 600 VAC |
| Amperage Rating | : | 40 A |
| Connectivity | : | Side Wired |
| Dielectric Strength | : | 2,200V AC minimum for 1 minute |
| Display Size | : | Standard Sized Product |
| Environmental Conditions | : | Indoor Dry Unless Protected By Additional Means |
| Load Capacity | : | Inductive |
| Number Of Poles | : | 2 Pole |
| Operating Cycles | : | 10,000 Cycles Minimum |
| Operating Temperature | : | Maximum continuous 75°C and minimum -40°C without Impact |
| Phase | : | Single Phase |
| Wattage | : | 24000 |
| Weight | : | 0.45 lb. |
| Class Code | : | A16 |
| Description - Invoice | : | 40A 600V 2P DISC SW |
| Freight Class Code | : | 06168002 |
| Harmonization Code | : | 8536509901 |
| Image Actual Or Representative | : | A |
| MSDS Flag | : | No |
| Replaced Catalog Number | : | HBL7842 |
| Sub Class Code | : | A16A240 |
| Material - Mounting Hardware | : | Screw Mounting |
| Construction | : | Fabricated |
| Material | : | Stainless Steel |
| Series | : | Standard Toggle |
| Base Unit of Measure | : | EA |
| BOX SIZE | : | 5.100x12.500x4.400 (in) |
| Carton - Gross Weight per Pack | : | 4.750 lb. |
| Carton - Number of Sub Packs | : | 30 |
| Carton - Pack Description | : | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | : | 783585202846 |
| Carton - Total Units | : | 10 EA |
| Case - Total Units | : | 30 EA |
| Case Weight | : | 6.006 lb. |
| Each - Pack Description | : | Each |
| Lowest Level UOM | : | Each |
| Pallet Height | : | 47.200 in |
| Pallet Length | : | 48.000 in |
| Pallet Weight | : | 1337.600 lb. |
| Pallet Width | : | 40.000 in |
Certifications | ||
| EU RoHS Indicator | : | Yes |
