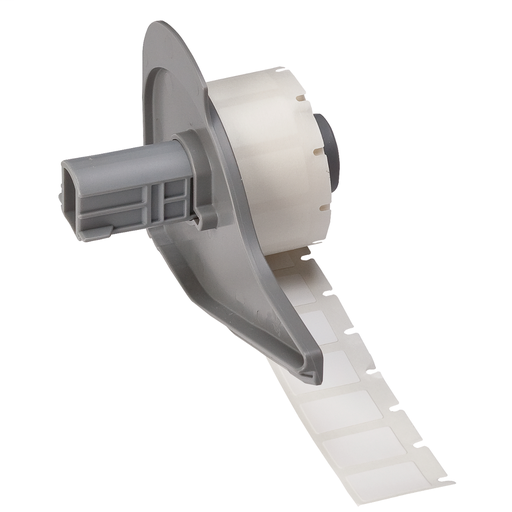

BMP71 Repositionable Vinyl Cloth Labels, 0.75" H x 0.5" W, Roll of 500 Labels
MFG #M71-11-498
$65.99 / E
EACH
EACH
Product Description:
Permanent or repositionable: once applied, B-498 CleanLift® Series Vinyl Cloth is there to stay… unless you want to change it.
HESCO Part Number
BRAM7111498
UPC
662820800644
Manufacturer Part Number
M71-11-498
Manufacturer
Brady
BMP71 Repositionable Vinyl Cloth Labels, 0.75" H x 0.5" W, Roll of 500 Labels
MFG #M71-11-498
Product Description:
Permanent or repositionable: once applied, B-498 CleanLift® Series Vinyl Cloth is there to stay… unless you want to change it.
HESCO Part Number
BRAM7111498
UPC
662820800644
Manufacturer Part Number
M71-11-498
Manufacturer
Brady
$65.99 / E
EACH
EACH
- Features
- Specifications
- Resources
- The adhesive and cloth backing offers excellent holding power, yet allow for clean removal and repositioning
- Sticks to any clean, dry surface
- Specially formulated topcoat for excellent print quality
- Semi-gloss finish for crisp, clean look
Specifications
| Applications | : | Circuit Board Labeling; General Identification; Laboratory Labeling; Wire and Cable Labeling |
| Board Application | : | Through Hole - Top |
| Brand Name | : | Brady® |
| Bulk Part | : | Not a Bulk Part |
| Color | : | White |
| Compatible Surface Types | : | Low Surface Energy |
| Diagram | : | Icon 3 (triangle) |
| Enables Industry Compliance | : | ASTM B 117; ASTM D 1000; ASTM D 2979; ASTM G 155; UL Recognized |
| Finish | : | Semi-gloss |
| For Use with Printer | : | BMP®71 Label Printer |
| Label/Media Format | : | Roll |
| Manufacturer Part Number | : | M71-11-498 |
| Max. Lines of Text | : | 8 |
| Primary Noun, Basic Function | : | Label |
| Print Technology | : | Thermal Transfer |
| Printer and Label Applications | : | Wire & Cable |
| Printer Compatibility | : | BMP71 |
| Printer Compatibility (Print) | : | BMP71 |
| Quantity per Roll | : | 500 |
| Quantity per Row | : | 1 |
| Recommended Ribbon | : | M61-R6210; M71-R6200 |
| Ribbon Series | : | M71-R6200 |
| Shape | : | Rectangle |
| Suggested Ribbon Series | : | R6200 |
| Total Qty per Pack | : | 500 Label(s) / Box |
| Total Quantity | : | 500 |
| Trade Name | : | CleanLift |
| Adhesive (Y/N) | : | Yes |
| Adhesive Type | : | Repositionable Rubber |
| After Process | : | Yes, this material will work with this application |
| Brady Material Number | : | B-498 |
| Label Properties | : | Repositionable Labels |
| Material | : | Vinyl Cloth |
| Resistance Properties | : | Abrasion-Resistant; Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant |
| SAP B-Number | : | B-498 |
| Dimensions | : | 0.75 in H x 0.5 in W |
| Dimensions (Metric) | : | 12.70 mm W x 19.05 mm H |
| Dimensions 2 | : | 0.75 in H x 0.5 in W |
| Height (in/ft/yd) | : | 0.75 in |
| Height (mm/cm/m) | : | 19.05 mm |
| Label/Tape Size (in/ft/yd) | : | 0.75 in H x 0.5 in W |
| Maximum Service Temperature °C | : | 80 °C |
| Maximum Service Temperature °F | : | 176 °F |
| Maximum Wire Diameter (mm/cm/m) | : | 4.55 mm |
| Maximum Wire Gauge | : | 10 gauge |
| Minimum Application Temperature °C | : | 10 °C |
| Minimum Application Temperature °F | : | 50 °F |
| Minimum Service Temperature °C | : | -40 °C |
| Minimum Service Temperature °F | : | -40 °F |
| Minimum Wire Gauge | : | 16 gauge |
| Printable Area Dimensions (Metric) | : | 19.05 mm H x 12.7 mm W |
| Printable Area Height (mm/cm/m) | : | 19.05 mm |
| Printable Area Width (mm/cm/m) | : | 12.7 mm |
| Sign Size-General | : | 0.75 in x 0.5 in |
| Size - Width (mm) | : | 12.70 mm |
| Thickness (in/ft/yd) | : | 0.0073 in |
| Thickness (mm/cm/m) | : | 0.185 mm |
| Vertical Repeat | : | 0.625 in |
| Vertical Repeat (mm) | : | 15.88 mm |
| Vial/Tube Size | : | 0.5 - 0.7 ml |
| Width (in/ft/yd) | : | 0.5 in |
| Width (mm/cm/m) | : | 12.7 mm |
| Wire Gauge Range | : | 16 gauge to 10 gauge |
Regulatory Information | ||
| Contains CA PROP 65 Substance | : | Yes Contains-Label not req. |
| Contains CA PROP 65 Substance | : | No |
| Contains Heavy Metal(s) | : | No - Does not contain |
| DOT Regulated Product | : | No = not regulated by DOT |
| EU RoHS Compliance | : | Pass 2011/65/EU(Pass 2015/863) |
| EU RoHS Compliant | : | Yes |
| SDS Safety Data Sheet required | : | No = MSDS/SDS is not required |
- The adhesive and cloth backing offers excellent holding power, yet allow for clean removal and repositioning
- Sticks to any clean, dry surface
- Specially formulated topcoat for excellent print quality
- Semi-gloss finish for crisp, clean look
Specifications
Applications : Circuit Board Labeling; General Identification; Laboratory Labeling; Wire and Cable Labeling Board Application : Through Hole - Top Brand Name : Brady® Bulk Part : Not a Bulk Part Color : White Compatible Surface Types : Low Surface Energy Diagram : Icon 3 (triangle) Enables Industry Compliance : ASTM B 117; ASTM D 1000; ASTM D 2979; ASTM G 155; UL Recognized Finish : Semi-gloss For Use with Printer : BMP®71 Label Printer Label/Media Format : Roll Manufacturer Part Number : M71-11-498 Max. Lines of Text : 8 Primary Noun, Basic Function : Label Print Technology : Thermal Transfer Printer and Label Applications : Wire & Cable Printer Compatibility : BMP71 Printer Compatibility (Print) : BMP71 Quantity per Roll : 500 Quantity per Row : 1 Recommended Ribbon : M61-R6210; M71-R6200 Ribbon Series : M71-R6200 Shape : Rectangle Suggested Ribbon Series : R6200 Total Qty per Pack : 500 Label(s) / Box Total Quantity : 500 Trade Name : CleanLift Adhesive (Y/N) : Yes Adhesive Type : Repositionable Rubber After Process : Yes, this material will work with this application Brady Material Number : B-498 Label Properties : Repositionable Labels Material : Vinyl Cloth Resistance Properties : Abrasion-Resistant; Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant SAP B-Number : B-498 Dimensions : 0.75 in H x 0.5 in W Dimensions (Metric) : 12.70 mm W x 19.05 mm H Dimensions 2 : 0.75 in H x 0.5 in W Height (in/ft/yd) : 0.75 in Height (mm/cm/m) : 19.05 mm Label/Tape Size (in/ft/yd) : 0.75 in H x 0.5 in W Maximum Service Temperature °C : 80 °C Maximum Service Temperature °F : 176 °F Maximum Wire Diameter (mm/cm/m) : 4.55 mm Maximum Wire Gauge : 10 gauge Minimum Application Temperature °C : 10 °C Minimum Application Temperature °F : 50 °F Minimum Service Temperature °C : -40 °C Minimum Service Temperature °F : -40 °F Minimum Wire Gauge : 16 gauge Printable Area Dimensions (Metric) : 19.05 mm H x 12.7 mm W Printable Area Height (mm/cm/m) : 19.05 mm Printable Area Width (mm/cm/m) : 12.7 mm Sign Size-General : 0.75 in x 0.5 in Size - Width (mm) : 12.70 mm Thickness (in/ft/yd) : 0.0073 in Thickness (mm/cm/m) : 0.185 mm Vertical Repeat : 0.625 in Vertical Repeat (mm) : 15.88 mm Vial/Tube Size : 0.5 - 0.7 ml Width (in/ft/yd) : 0.5 in Width (mm/cm/m) : 12.7 mm Wire Gauge Range : 16 gauge to 10 gauge Regulatory Information
Contains CA PROP 65 Substance : Yes Contains-Label not req. Contains CA PROP 65 Substance : No Contains Heavy Metal(s) : No - Does not contain DOT Regulated Product : No = not regulated by DOT EU RoHS Compliance : Pass 2011/65/EU(Pass 2015/863) EU RoHS Compliant : Yes SDS Safety Data Sheet required : No = MSDS/SDS is not required - Downloads
Spec Sheet
