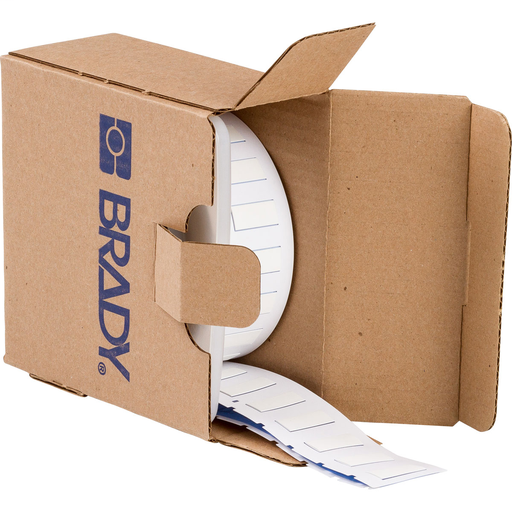

LS2000 BradyMarker Series PermaSleeve Polyolefin Wire Marking Sleeves
MFG #PSBXP-311-375
Requires Quote
/ EACH
Product Description:
PermaSleeve® PS Heat-Shrink Polyolefin (B-342) wire marking sleeves combine speed, ease of use, and permanence to create long-lasting, high quality identification.
HESCO Part Number
BRAPSBXP311375
UPC
662820320029
Manufacturer Part Number
PSBXP-311-375
Manufacturer
Brady
LS2000 BradyMarker Series PermaSleeve Polyolefin Wire Marking Sleeves
MFG #PSBXP-311-375
Product Description:
PermaSleeve® PS Heat-Shrink Polyolefin (B-342) wire marking sleeves combine speed, ease of use, and permanence to create long-lasting, high quality identification.
HESCO Part Number
BRAPSBXP311375
UPC
662820320029
Manufacturer Part Number
PSBXP-311-375
Manufacturer
Brady
Requires Quote
/ EACH
- Features
- Specifications
- 3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification
- Fade-resistant and smudge-proof for superior aesthetic appearance
- Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C)
- Meets SAE-AMS-DTL-23053/5C (Class 1), SAE-AS-81531, MIL-STD-202; RoHS Compliant; and UL Recognized
Specifications
| Material Number | : | B-342 |
| California Prop 65 | : | Cancer - || www.p65warnings.ca.gov |
| Catalog Page # | : | 96 |
| Diameter as Supplied | : | 0.311 in |
| Dimensions | : | 0.645 in H x 1 in W |
| UOM | : | Roll of 250 Each |
| Finish | : | Matte |
| Maximum Service Temperature °F | : | 275 °F |
| Maximum Wire Diameter | : | 0.32 in |
| Maximum Wire Gauge | : | 6 AWG |
| Minimum Service Temperature °F | : | -67 °F |
| Minimum Wire Diameter | : | 0.125 in |
| Minimum Wire Gauge | : | 12 AWG |
| Printable Sides | : | Single-Side Printable |
| Product Number | : | 32002 |
| UPC | : | 662820320029 |
| Quantity per Roll | : | 250 |
| Quantity per Row | : | 1 |
| Roll Width | : | 1.765 in |
| Shrink Ratio | : | 3:1 |
| Sleeve Size | : | 0.311 in Dia |
| Sleeve Size(m) | : | 7.9 mm Dia |
| Trade Name | : | BradyMarker™ PermaSleeve® |
| Applications | : | Cable & Wire Marking, Panel Labeling |
| Color | : | White |
| For Use with Printer | : | BradyMarker® XC Plus, LS2000 Labeling System |
| Label/Media Format | : | Roll |
| Label Properties | : | Heat Shrink Sleeves |
| Material | : | Polyolefin |
| Material Properties | : | Flame-retardant, Heat-Shrinkable |
| Print Technology | : | Dot Matrix |
| Resistance Properties | : | Chemical-Resistant, Corrosion-Resistant, Humidity-Resistant, Smear-Resistant, UV-Resistant, Weather-Resistant |
| Suggested Ribbon Series | : | R4300, R4502S, R5000, R6600, R6700 |
- 3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification
- Fade-resistant and smudge-proof for superior aesthetic appearance
- Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C)
- Meets SAE-AMS-DTL-23053/5C (Class 1), SAE-AS-81531, MIL-STD-202; RoHS Compliant; and UL Recognized
Specifications
Material Number : B-342 California Prop 65 : Cancer - || www.p65warnings.ca.gov Catalog Page # : 96 Diameter as Supplied : 0.311 in Dimensions : 0.645 in H x 1 in W UOM : Roll of 250 Each Finish : Matte Maximum Service Temperature °F : 275 °F Maximum Wire Diameter : 0.32 in Maximum Wire Gauge : 6 AWG Minimum Service Temperature °F : -67 °F Minimum Wire Diameter : 0.125 in Minimum Wire Gauge : 12 AWG Printable Sides : Single-Side Printable Product Number : 32002 UPC : 662820320029 Quantity per Roll : 250 Quantity per Row : 1 Roll Width : 1.765 in Shrink Ratio : 3:1 Sleeve Size : 0.311 in Dia Sleeve Size(m) : 7.9 mm Dia Trade Name : BradyMarker™ PermaSleeve® Applications : Cable & Wire Marking, Panel Labeling Color : White For Use with Printer : BradyMarker® XC Plus, LS2000 Labeling System Label/Media Format : Roll Label Properties : Heat Shrink Sleeves Material : Polyolefin Material Properties : Flame-retardant, Heat-Shrinkable Print Technology : Dot Matrix Resistance Properties : Chemical-Resistant, Corrosion-Resistant, Humidity-Resistant, Smear-Resistant, UV-Resistant, Weather-Resistant Suggested Ribbon Series : R4300, R4502S, R5000, R6600, R6700
