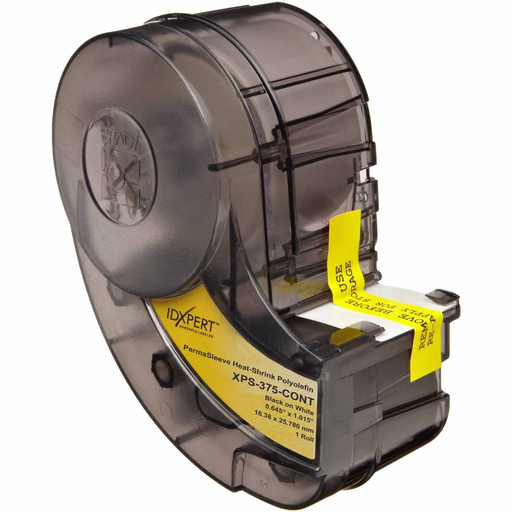

IDXPERT Series PermaSleeve Polyolefin Wire Marking Sleeves, 0.375" Dia x 8' L
MFG #XPS-375-CONT
$128.79 / e
EACH
EACH
Product Description:
PermaSleeve® PS Heat-Shrink Polyolefin (B-342) wire marking sleeves combine speed, ease of use, and permanence to create long-lasting, high quality identification.
HESCO Part Number
BRAXPS375CONT
UPC
662820600886
Manufacturer Part Number
XPS-375-CONT
Manufacturer
Brady
IDXPERT Series PermaSleeve Polyolefin Wire Marking Sleeves, 0.375" Dia x 8' L
MFG #XPS-375-CONT
Product Description:
PermaSleeve® PS Heat-Shrink Polyolefin (B-342) wire marking sleeves combine speed, ease of use, and permanence to create long-lasting, high quality identification.
HESCO Part Number
BRAXPS375CONT
UPC
662820600886
Manufacturer Part Number
XPS-375-CONT
Manufacturer
Brady
$128.79 / e
EACH
EACH
- Features
- Specifications
- Resources
- 3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification
- Fade-resistant and smudge-proof for superior aesthetic appearance
- Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C)
- All-in-one cartridge includes label supply and R4300 Series ribbon
Specifications
| Applications | : | Electrical Labeling; Wire and Cable Labeling |
| Brand Name | : | Brady® |
| Enables Industry Compliance | : | ASTM D 2671; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202; SAE-AMS-DTL-23053; SAE-AS-81531; UL Recognized |
| Finish | : | Matte |
| For Use with Printer | : | IDXPERT™ Handheld Label Maker |
| Label/Media Format | : | Label/Media in Cartridge with Ribbon |
| Primary Noun, Basic Function | : | Heat Shrink Tubing |
| Print Technology | : | Thermal Transfer |
| Printer and Label Applications | : | Wire & Cable |
| Quantity per Row | : | 1 |
| Ribbon Color | : | Black |
| Ribbon Series | : | R4300 |
| Shrink Ratio | : | 3:1 |
| Tape Color | : | White |
| Trade Name | : | IDXpert™ PermaSleeve® |
| Brady Material Number | : | B-342 |
| Label Properties | : | Heat Shrink Sleeves |
| Material | : | Heat-shrink Polyolefin |
| Material Properties | : | Flame-retardant; Heat-shrinkable |
| Resistance Properties | : | Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Smear-Resistant; UV-Resistant; Weather-Resistant |
| SAP B-Number | : | B-342 |
| Diameter as Supplied (in/ft/yd) | : | 0.375 in |
| Diameter as Supplied (mm/cm/m) | : | 9.5 mm |
| Dimensions | : | 0.645 in H |
| Dimensions (Metric) | : | 16.4 mm H |
| Dimensions 2 | : | 0.645 in H |
| Height (in/ft/yd) | : | 0.645 in |
| Height (mm/cm/m) | : | 16.4 mm |
| Maximum Service Temperature °C | : | 135 °C |
| Maximum Service Temperature °F | : | 275 °F |
| Maximum Wire Diameter (in/ft/yd) | : | 0.32 in |
| Maximum Wire Diameter (mm/cm/m) | : | 8.1 mm |
| Maximum Wire Gauge | : | 6 AWG |
| Minimum Service Temperature °C | : | -55 °C |
| Minimum Service Temperature °F | : | -67 °F |
| Minimum Wire Diameter (in/ft/yd) | : | 0.125 in |
| Minimum Wire Diameter (mm/cm/m) | : | 3.2 mm |
| Minimum Wire Gauge | : | 12 AWG |
| Recovered Diameter (in/ft/yd) | : | 0.375 in |
| Recovered Diameter (mm/cm/m) | : | 9.53 mm |
| Roll Length (in/ft/yd) | : | 8 ft |
| Roll Length (mm/cm/m) | : | 2.44 m |
| Sleeve Size (in/ft/yd) | : | 0.375 in Dia x 8 ft L |
| Sleeve Size (mm/cm/m) | : | 9.5 mm Dia x 2.44 m L |
| Web Width (in/ft/yd) | : | 1.063 in |
| Web Width (mm/cm/m) | : | 16.38 mm |
| Wire Diameter Range | : | 0.125 in to 0.32 in |
| Wire Gauge Range | : | 12 AWG to 6 AWG |
Regulatory Information | ||
| CA Prop 65 Labeled | : | Yes |
| CA Prop 65 Label Warning | : | WARNING: Cancer - www.P65warnings.ca.gov |
| Contains CA PROP 65 Substance | : | Yes Contains-Label required |
| Contains CA PROP 65 Substance | : | Yes |
| Contains CA PROP 65 Warning Type | : | Cancer |
| Contains CA Prop 65 Cancer Causing Chemical | : | Antimony Trioxide |
| Contains Heavy Metal(s) | : | No - Does not contain |
| DOT Regulated Product | : | No = not regulated by DOT |
| EU RoHS Compliance | : | Pass 2011/65/EU(Pass 2015/863) |
| EU RoHS Compliant | : | Yes |
| SDS Safety Data Sheet required | : | No = MSDS/SDS is not required |
- 3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification
- Fade-resistant and smudge-proof for superior aesthetic appearance
- Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C)
- All-in-one cartridge includes label supply and R4300 Series ribbon
Specifications
Applications : Electrical Labeling; Wire and Cable Labeling Brand Name : Brady® Enables Industry Compliance : ASTM D 2671; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202; SAE-AMS-DTL-23053; SAE-AS-81531; UL Recognized Finish : Matte For Use with Printer : IDXPERT™ Handheld Label Maker Label/Media Format : Label/Media in Cartridge with Ribbon Primary Noun, Basic Function : Heat Shrink Tubing Print Technology : Thermal Transfer Printer and Label Applications : Wire & Cable Quantity per Row : 1 Ribbon Color : Black Ribbon Series : R4300 Shrink Ratio : 3:1 Tape Color : White Trade Name : IDXpert™ PermaSleeve® Brady Material Number : B-342 Label Properties : Heat Shrink Sleeves Material : Heat-shrink Polyolefin Material Properties : Flame-retardant; Heat-shrinkable Resistance Properties : Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Smear-Resistant; UV-Resistant; Weather-Resistant SAP B-Number : B-342 Diameter as Supplied (in/ft/yd) : 0.375 in Diameter as Supplied (mm/cm/m) : 9.5 mm Dimensions : 0.645 in H Dimensions (Metric) : 16.4 mm H Dimensions 2 : 0.645 in H Height (in/ft/yd) : 0.645 in Height (mm/cm/m) : 16.4 mm Maximum Service Temperature °C : 135 °C Maximum Service Temperature °F : 275 °F Maximum Wire Diameter (in/ft/yd) : 0.32 in Maximum Wire Diameter (mm/cm/m) : 8.1 mm Maximum Wire Gauge : 6 AWG Minimum Service Temperature °C : -55 °C Minimum Service Temperature °F : -67 °F Minimum Wire Diameter (in/ft/yd) : 0.125 in Minimum Wire Diameter (mm/cm/m) : 3.2 mm Minimum Wire Gauge : 12 AWG Recovered Diameter (in/ft/yd) : 0.375 in Recovered Diameter (mm/cm/m) : 9.53 mm Roll Length (in/ft/yd) : 8 ft Roll Length (mm/cm/m) : 2.44 m Sleeve Size (in/ft/yd) : 0.375 in Dia x 8 ft L Sleeve Size (mm/cm/m) : 9.5 mm Dia x 2.44 m L Web Width (in/ft/yd) : 1.063 in Web Width (mm/cm/m) : 16.38 mm Wire Diameter Range : 0.125 in to 0.32 in Wire Gauge Range : 12 AWG to 6 AWG Regulatory Information
CA Prop 65 Labeled : Yes CA Prop 65 Label Warning : WARNING: Cancer - www.P65warnings.ca.gov Contains CA PROP 65 Substance : Yes Contains-Label required Contains CA PROP 65 Substance : Yes Contains CA PROP 65 Warning Type : Cancer Contains CA Prop 65 Cancer Causing Chemical : Antimony Trioxide Contains Heavy Metal(s) : No - Does not contain DOT Regulated Product : No = not regulated by DOT EU RoHS Compliance : Pass 2011/65/EU(Pass 2015/863) EU RoHS Compliant : Yes SDS Safety Data Sheet required : No = MSDS/SDS is not required - Downloads
Spec Sheet
