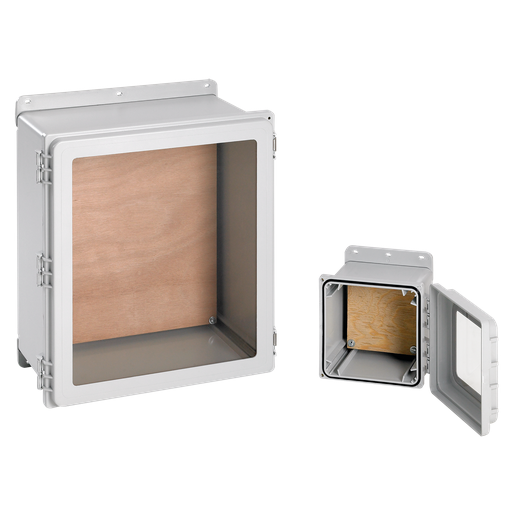

PolyPro WiFi Type 4X Window Door, 6.12x6.12x4.38, Lt Gray, Polyester
MFG #D664WFW
$220.00Â /Â E
EACH
EACH
Product Description:
PolyPro WiFi Enclosure provides wireless equipment protection not impeding WiFi or WLAN signals. This PolyPro WiFi Type 4X Window Door, D664WFW item measures 6.12x6.12x4.38 inches with a material of Polyester colored Lt Gray.
HESCO Part Number
HFD664WFW
UPC
783510187040
Manufacturer Part Number
D664WFW
Manufacturer
Hoffman
PolyPro WiFi Type 4X Window Door, 6.12x6.12x4.38, Lt Gray, Polyester
MFG #D664WFW
Product Description:
PolyPro WiFi Enclosure provides wireless equipment protection not impeding WiFi or WLAN signals. This PolyPro WiFi Type 4X Window Door, D664WFW item measures 6.12x6.12x4.38 inches with a material of Polyester colored Lt Gray.
HESCO Part Number
HFD664WFW
UPC
783510187040
Manufacturer Part Number
D664WFW
Manufacturer
Hoffman
$220.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Non-glass-filled polyester material offers superior UV resistance; eliminates fiberbloom associated with fiberglass
- Provides excellent chemical resistance to a broad range of solvents, alkalis and acids
- Resists cracking and provides excellent impact resistance
- Lighter-weight than fiberglass
- Recyclable
- Easy, dustless in-field modifications using standard tools
- Overlapping tongue-and-groove raised cover and gasket provide secure Type 4X seal
- Removable snap-hinge cover allows for easy access to cover and body for modifications
- Molded layout grid on inside of body and solid covers assists with component mounting
- Molded-in embosses for rear panel mounting
- Internal rail system and adjustable panel blocks allow for panel height adjustment and installation of multiple panels
- Scratch-resistant polycarbonate windows
- Standard models include body and cover, two mounting feet, two latch assemblies with optional cover screws and hardware, and 3/4-inch plywood panel
Specifications
| Height (H) | :Â Â | 155 |
| Width (W) | :Â Â | 155 |
| Depth (D) | :Â Â | 111 |
| Protection Rating | :Â Â | NEMA Type 12 |
| Product Family | :Â Â | PolyPro |
| Finish | :Â Â | Smooth Matte |
| Color | :Â Â | Light Gray |
| Color Code | :Â Â | RAL 7035 |
| Thickness (T) | :Â Â | 3 |
| Door Type | :Â Â | Window |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 13 |
| IP Rating | :Â Â | IP66 |
| Weight | :Â Â | 2.7 |
| Height | :Â Â | 6.12 in |
| Width | :Â Â | 6.12 in |
| Depth | :Â Â | 4.38 in |
| Material | :Â Â | Polyester |
| NEMA Rating | :Â Â | 4X Watertight, corrosion-resistant |
- Non-glass-filled polyester material offers superior UV resistance; eliminates fiberbloom associated with fiberglass
- Provides excellent chemical resistance to a broad range of solvents, alkalis and acids
- Resists cracking and provides excellent impact resistance
- Lighter-weight than fiberglass
- Recyclable
- Easy, dustless in-field modifications using standard tools
- Overlapping tongue-and-groove raised cover and gasket provide secure Type 4X seal
- Removable snap-hinge cover allows for easy access to cover and body for modifications
- Molded layout grid on inside of body and solid covers assists with component mounting
- Molded-in embosses for rear panel mounting
- Internal rail system and adjustable panel blocks allow for panel height adjustment and installation of multiple panels
- Scratch-resistant polycarbonate windows
- Standard models include body and cover, two mounting feet, two latch assemblies with optional cover screws and hardware, and 3/4-inch plywood panel
Specifications
Height (H) :Â Â 155 Width (W) :Â Â 155 Depth (D) :Â Â 111 Protection Rating :Â Â NEMA Type 12 Product Family :Â Â PolyPro Finish :Â Â Smooth Matte Color :Â Â Light Gray Color Code :Â Â RAL 7035 Thickness (T) :Â Â 3 Door Type :Â Â Window Modification Services :Â Â Yes Type Number :Â Â Type 13 IP Rating :Â Â IP66 Weight :Â Â 2.7 Height :Â Â 6.12 in Width :Â Â 6.12 in Depth :Â Â 4.38 in Material :Â Â Polyester NEMA Rating :Â Â 4X Watertight, corrosion-resistant - Downloads
Spec Sheet
CertificateCertificate - E61997_V1_S2_WiFi - NAM-USCertificate - CE-UKCA-00033_Enclosure-Non-Metallic - NAM-US
Data SheetData Sheet - Spec-00573 - NAM-CA
