L-Box Type 1, 24.00x24.00x12.00, Lt Gray, Steel
MFG #DBL242412G
$1,004.00Â /Â E
EACH
EACH
Product Description:

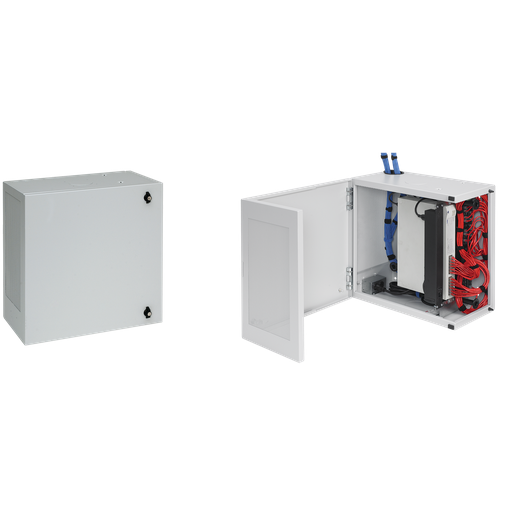

L-Box cabinets house 19in network equipment vertically in locations where low profiles are necessary. This L-Box Type 1, DBL242412G item measures 24.00x24.00x12.00 inches with a material of Steel colored Lt Gray.
HESCO Part Number
HFDBL242412G
UPC
783510143732
Manufacturer Part Number
DBL242412G
Manufacturer
Hoffman
L-Box Type 1, 24.00x24.00x12.00, Lt Gray, Steel
MFG #DBL242412G
Product Description:
L-Box cabinets house 19in network equipment vertically in locations where low profiles are necessary. This L-Box Type 1, DBL242412G item measures 24.00x24.00x12.00 inches with a material of Steel colored Lt Gray.
HESCO Part Number
HFDBL242412G
UPC
783510143732
Manufacturer Part Number
DBL242412G
Manufacturer
Hoffman
$1,004.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Spring-loaded, self-retained hinge pins allow door removal
- 120-degree door opening for maximum eqiupment access
- Quarter-turn latches with key lock
- One set of fixed rack angles is included on 24- and 36-inch (610- and 914-mm) tall models and two on 48-inch (1219-mm) tall models
- Rack angles on 36-inch (914-mm) models can be positioned either at the top or the bottom of the cabinet
- 36- and 48-inch (914- and 1219-mm) tall models have space for patch panel or shelf brackets
- Knockouts for 4-inch (102-mm) fan on top and bottom of cabinet
- Wiring knockouts (7/8 inch, 1-3/8 inch, and 3 inch) on top and bottom of cabinet & two 3-inch cable entry knockouts on back
- Multiple cable tie-down points on back of cabinet
- Keyhole mounting slots spaced 16.00 inch (406 mm) on center for easy cabinet mounting
Specifications
| Height (H) | :Â Â | 610 |
| Width (W) | :Â Â | 610 |
| Depth (D) | :Â Â | 313 |
| Protection Rating | :Â Â | NEMA Type 1 |
| Product Family | :Â Â | L-Box |
| Color Code | :Â Â | RAL 7035 |
| Thickness (T) | :Â Â | 1.9 |
| Rack Units | :Â Â | 6 |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 1 |
| IP Rating | :Â Â | IP30 |
| Weight | :Â Â | 60 |
| Height | :Â Â | 24 in |
| Width | :Â Â | 24 in |
| Depth | :Â Â | 12.34 in |
| Material | :Â Â | Steel |
| Finish | :Â Â | Steel/LtGray |
| Color | :Â Â | LtGray |
| NEMA Rating | :Â Â | 1 Indoor, electrical protection |
Downloads
Spec Sheet
Data Sheet
Data Sheet - Spec-00084 - NAM-CA
Certificate
Certificate - E230874_V1_S1_CoC - NAM-US
Certificate - CE-UKCA-00008_L-Box_ProTek - NAM-US
Instruction Manual
Instruction Manual - 87788979 - NAM-US
Spec SheetData Sheet
Data Sheet - Spec-00084 - NAM-CACertificate
Certificate - E230874_V1_S1_CoC - NAM-USCertificate - CE-UKCA-00008_L-Box_ProTek - NAM-USInstruction Manual
Instruction Manual - 87788979 - NAM-US- Spring-loaded, self-retained hinge pins allow door removal
- 120-degree door opening for maximum eqiupment access
- Quarter-turn latches with key lock
- One set of fixed rack angles is included on 24- and 36-inch (610- and 914-mm) tall models and two on 48-inch (1219-mm) tall models
- Rack angles on 36-inch (914-mm) models can be positioned either at the top or the bottom of the cabinet
- 36- and 48-inch (914- and 1219-mm) tall models have space for patch panel or shelf brackets
- Knockouts for 4-inch (102-mm) fan on top and bottom of cabinet
- Wiring knockouts (7/8 inch, 1-3/8 inch, and 3 inch) on top and bottom of cabinet & two 3-inch cable entry knockouts on back
- Multiple cable tie-down points on back of cabinet
- Keyhole mounting slots spaced 16.00 inch (406 mm) on center for easy cabinet mounting
Specifications
Height (H) :Â Â 610 Width (W) :Â Â 610 Depth (D) :Â Â 313 Protection Rating :Â Â NEMA Type 1 Product Family :Â Â L-Box Color Code :Â Â RAL 7035 Thickness (T) :Â Â 1.9 Rack Units :Â Â 6 Modification Services :Â Â Yes Type Number :Â Â Type 1 IP Rating :Â Â IP30 Weight :Â Â 60 Height :Â Â 24 in Width :Â Â 24 in Depth :Â Â 12.34 in Material :Â Â Steel Finish :Â Â Steel/LtGray Color :Â Â LtGray NEMA Rating :Â Â 1 Indoor, electrical protection - DownloadsSpec Sheet
Data SheetData Sheet - Spec-00084 - NAM-CA
CertificateCertificate - E230874_V1_S1_CoC - NAM-USCertificate - CE-UKCA-00008_L-Box_ProTek - NAM-US
Instruction ManualInstruction Manual - 87788979 - NAM-US
